Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
30-00516CABLE 7COND 28AWG BLACK 5M |
4,210 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 7 | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.175" (4.45mm) | - | 16.40' (5.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-02466CABLE 9COND 18AWG BLACK SHLD |
3,085 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 9 | 18 AWG | 65/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.280" (7.11mm) | Spiral | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-00368CABLE 3COND 20AWG BLACK 5M |
1,448 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.195" (4.95mm) | - | 16.40' (5.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
.jpg)
|
30-00501CABLE 5COND 24AWG BLACK 5M |
4,097 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 5 | 24 AWG | 11/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.193" (4.90mm) | - | 16.40' (5.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
30-02857CABLE 2COND 20AWG BLK/RED 5M |
3,143 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 20 AWG | 21/0.0070" | Copper, Bare | Polyethylene (XLPE), Irradiated; Low Smoke Zero Halogen (LSZH) | 0.142" (3.61mm) | - | 16.40' (5.00m) | Black, Red | UL Style 4384 | - | 300 V | 105°C | - | 0.0157" (0.400mm) | - | - |
|
30-01532CBL 10COND 20AWG SHLD MPPE |
1,686 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 20 AWG | 26/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.315" (8.00mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0374" (0.950mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
31-00049CBL COIL SHLD 4C 26AWG 2230MM |
3,474 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 4 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.177" (4.50mm) | Braid | 7.32' (2.23m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0323" (0.820mm) | Thermoplastic Elastomer (TPE) | - |
|
30-00683CABLE 2COND 18AWG BLACK 5M |
4,108 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 18 AWG | 34/41 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.205" (5.21mm) | - | 16.40' (5.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
31-00153CBL COIL SHLD 10C 24AWG 1115MM |
4,934 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 10 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.264" (6.71mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|

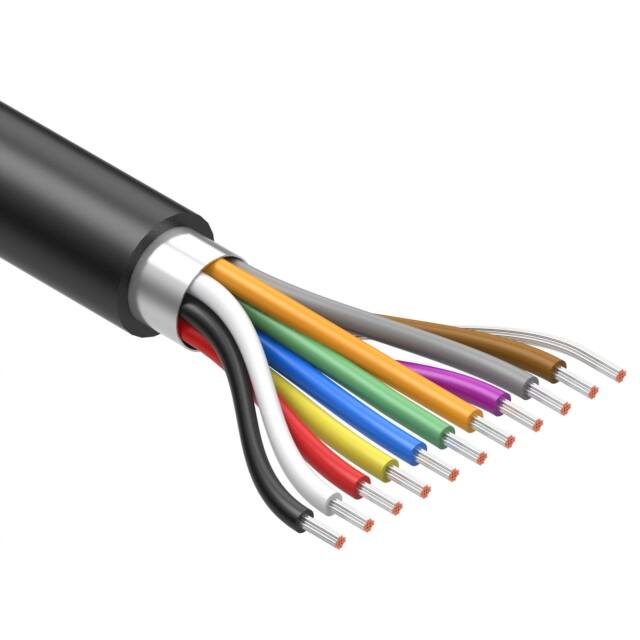

30-01530CBL 10COND 18AWG SHLD MPPE |
1,949 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 18 AWG | 41/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.366" (9.30mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0394" (1.001mm) | Polyphenylene Ether, Modified (mPPE) | - |
