Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-00925CABLE 6COND 18AWG BLACK SHLD |
1,331 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 6 | 18 AWG | 65/0.0051" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.295" (7.49mm) | Braid | 502.0' (153.0m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0327" (0.831mm) | Thermoplastic Elastomer (TPE) | - |
|
31-00120CBL COIL SHLD 8C 26AWG 1115MM |
3,090 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 8 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.213" (5.41mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0335" (0.851mm) | Thermoplastic Elastomer (TPE) | - |
|
30-00796CABLE 2COND 20AWG BLACK 5M |
1,816 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 20 AWG | 21/0.0071" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.157" (3.99mm) | - | 16.40' (5.00m) | Black | UL Style 2651 | - | 300 V | -10°C ~ 105°C | - | 0.0197" (0.500mm) | - | - |
|
30-02853CABLE 2COND 12AWG BLK/RED 1M |
4,267 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 12 AWG | 65/0.0100" | Copper, Bare | Polyethylene (XLPE), Irradiated; Low Smoke Zero Halogen (LSZH) | 0.275" (6.99mm) | - | 3.28' (1.00m) | Black, Red | UL Style 4384 | - | 300 V | 105°C | - | 0.0209" (0.530mm) | - | - |
|
|
30-02848CABLE 2COND 12AWG BLACK 1M |
2,898 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 2 | 12 AWG | 65/0.0100" | Copper, Bare | Polyethylene (XLPE), Irradiated; Low Smoke Zero Halogen (LSZH) | 0.275" (6.99mm) | - | 3.28' (1.00m) | Black | UL Style 4384 | - | 300 V | 105°C | - | 0.0209" (0.530mm) | - | - |
|
30-02022CABLE 8COND 18AWG BLACK |
3,831 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 18 AWG | 41/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.299" (7.60mm) | - | 502.0' (153.0m) | Black | UL Style 21509 | Biological Compatibility | 600 V | -40°C ~ 105°C | - | 0.0114" (0.290mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
31-00013CBL COIL SHLD 2C 26AWG 2230MM |
2,498 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 2 | 26 AWG | 19/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.161" (4.09mm) | Braid | 7.32' (2.23m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|

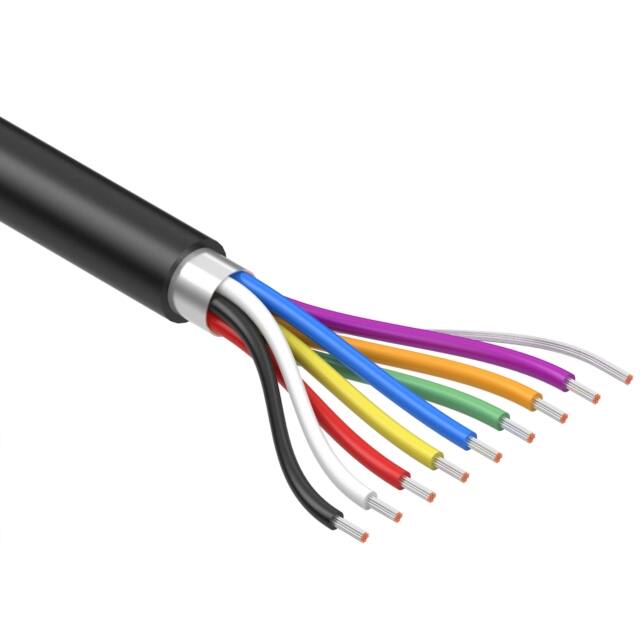

30-01498CBL 8COND 18AWG SHLD MPPE |
3,124 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 8 | 18 AWG | 41/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.299" (7.60mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0303" (0.770mm) | Polyphenylene Ether, Modified (mPPE) | - |
|
31-00021CBL COIL SHLD 3C 20AWG 1115MM |
3,691 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 3 | 20 AWG | 41/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.213" (5.41mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
|
30-02399CBL 10CON 18AWG BLK TPU |
1,829 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 18 AWG | 65/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.362" (9.20mm) | - | 502.0' (153.0m) | Black | UL Style 20280 | - | 300 V | -40°C ~ 80°C | - | 0.0299" (0.759mm) | Thermoplastic Elastomer (TPE) | - |
