Multiple Conductor Cables
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Number of Conductors | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Shield Type | Length | Jacket Color | Ratings | Features | Voltage | Operating Temperature | Usage | Jacket (Insulation) Thickness | Conductor Insulation | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
30-01868CABLE 5COND 20AWG BLACK SHLD 1M |
4,591 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 5 | 20 AWG | 65/0.0039" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.220" (5.59mm) | Spiral | 3.28' (1.00m) | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0295" (0.749mm) | High Density Polyethylene (HDPE) | - |
|
30-00386CABLE 4COND 22AWG BLACK 5M |
4,008 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 4 | 22 AWG | 17/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.191" (4.85mm) | - | 16.40' (5.00m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|

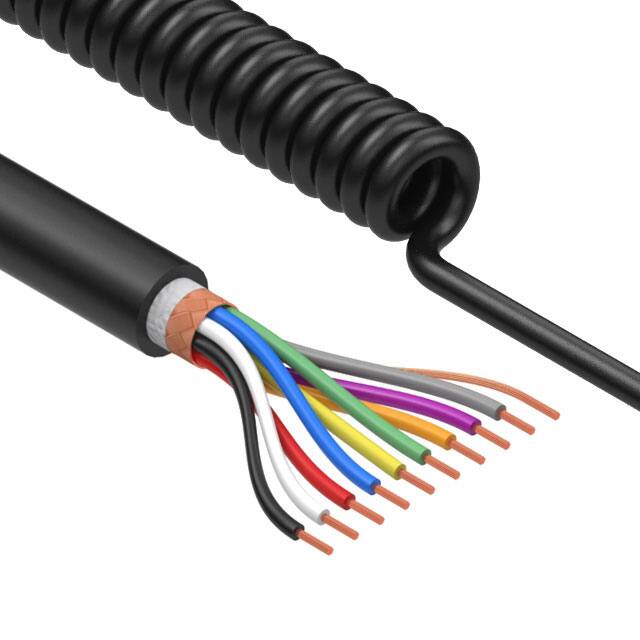

31-00135CBL COIL SHLD 9C 24AWG 1115MM |
3,147 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 9 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.244" (6.20mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|

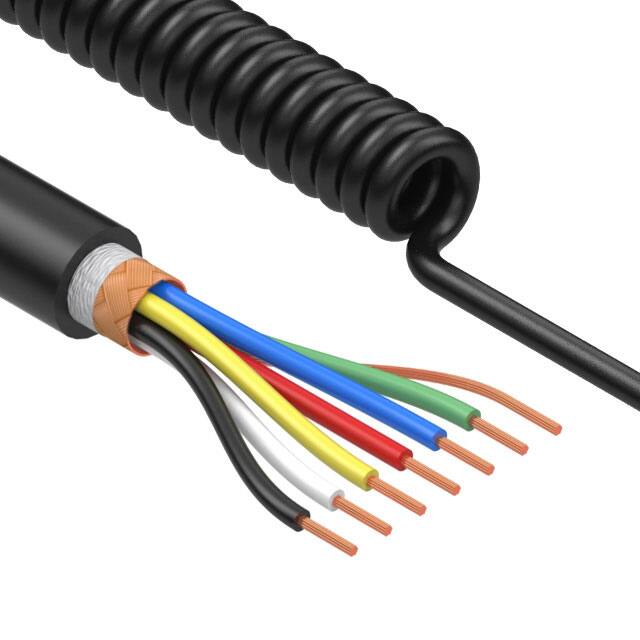

31-00078CBL COIL SHLD 6C 22AWG 1115MM |
1,768 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 6 | 22 AWG | 26/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.236" (5.99mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0327" (0.831mm) | Thermoplastic Elastomer (TPE) | - |
|
30-00795CABLE 2COND 18AWG BLK/RED 5M |
2,439 |
|
Datasheet | - | Spool | Discontinued at Digi-Key | Multi-Conductor | 2 | 18 AWG | 34/0.0071" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.173" (4.39mm) | - | 16.40' (5.00m) | Black, Red | UL Style 2651 | - | 300 V | -10°C ~ 105°C | - | 0.0150" (0.381mm) | - | - |
|
30-01964CABLE 10COND 18AWG BLACK |
3,551 |
|
Datasheet | - | Spool | Active | Multi-Conductor | 10 | 18 AWG | 65/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.295" (7.49mm) | - | 502.0' (153.0m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-02418CABLE 3COND 18AWG BLACK SHLD 1M |
2,611 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 3 | 18 AWG | 65/36 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.189" (4.80mm) | Spiral | 3.28' (1.00m) | Black | UL Style 21296 | - | 300 V | -40°C ~ 105°C | - | 0.0236" (0.600mm) | Fluorinated Ethylene-Propylene (FEP) | - |
|
30-00942CABLE 9COND 22AWG BLACK SHLD 1M |
1,876 |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | Multi-Conductor | 9 | 22 AWG | 26/0.005" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.268" (6.81mm) | Braid | 3.28' (1.00m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|

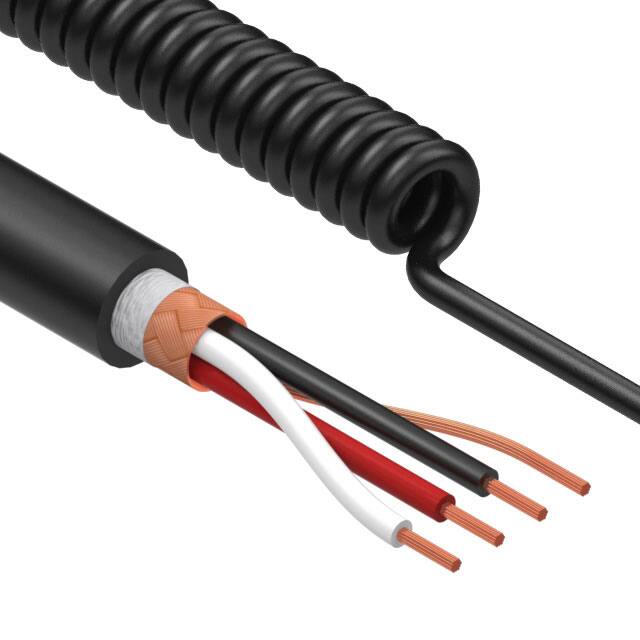

31-00018CBL COIL SHLD 3C 18AWG 1115MM |
2,029 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 3 | 18 AWG | 65/0.0051" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.236" (5.99mm) | Braid | 3.68' (1.12m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
|
31-00028CBL COIL SHLD 3C 24AWG 2230MM |
2,299 |
|
Datasheet | - | Bulk | Active | Round - Coiled | 3 | 24 AWG | 26/0.0039" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.177" (4.50mm) | Braid | 7.32' (2.23m) | Black | UL Style 20280 | Drain Wire | 300 V | - | - | 0.0315" (0.800mm) | Thermoplastic Elastomer (TPE) | - |
