Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMC-4015-40L170MIC, 4MM ECM, OMNIDIRECTIONAL |
1,957 |
|
Datasheet | CMC | Bag | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -40dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP65 - Dust Tight, Water Resistant | Wire Leads | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Round | - | - |
|
CMC-6018-38TMIC COND ANLG OMNI -44DB 0.236"D |
4,804 |
|
Datasheet | CMC | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -44dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.079" (2.00mm) | Circular | - | - |
|
CMM-3722AT-42208-TRMIC MEMS ANALOG OMNI -42DB |
3,809 |
|
Datasheet | CMM | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±2dB @ 94dB SPL | 60dB | - | 2 V | 1.6 V ~ 3.6 V | 80 µA | Top | - | Solder Pads | 0.148" L x 0.088" W (3.76mm x 2.24mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
CMM-3729AB-38116-TRMIC MEMS ANALOG OMNI -38DB |
844 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±1dB @ 94dB SPL | 57dB | - | 2 V | 1.6 V ~ 3.6 V | 160 µA | Bottom | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.047" (1.20mm) | Rectangular | - | - |
|

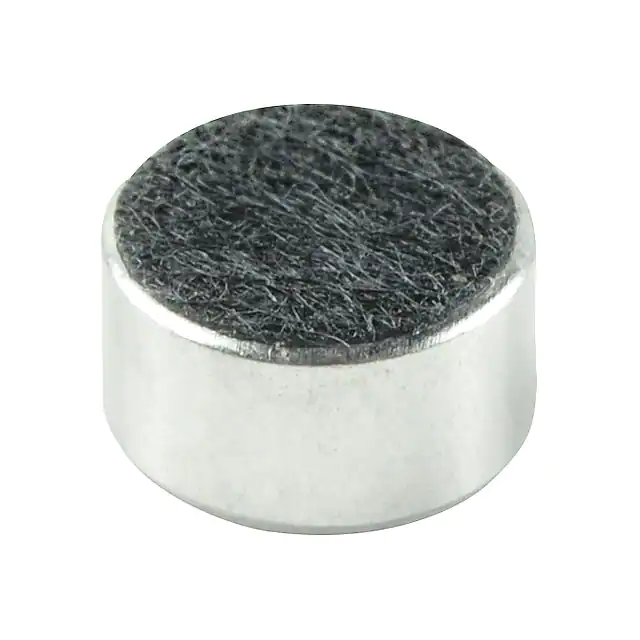

CMC-6036-40TMIC COND ANLG OMNI -40DB 0.236"D |
412 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -40dB ±2dB @ 94dB SPL | 56dB | 2.2 kOhms | 3 V | 3 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.150" (3.80mm) | Circular | - | - |
|
CMC-6010-42L100MIC COND ANLG OMNI -42DB 0.236"D |
4,106 |
|
Datasheet | CMC | Bulk | Obsolete | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Wire Leads | 0.236" Dia (6.00mm) | 0.047" (1.20mm) | Circular | - | - |
|
CMR-5054TB-AMIC COND ANLG NC -54DB 0.236"DIA |
441 |
|
Datasheet | - | Box | Active | Electret Condenser | Analog | Noise Cancelling | 100 Hz ~ 10 kHz | -54dB ±3dB @ 94dB SPL | 56dB | 2.2 kOhms | - | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.205" (5.20mm) | Circular | - | - |
|

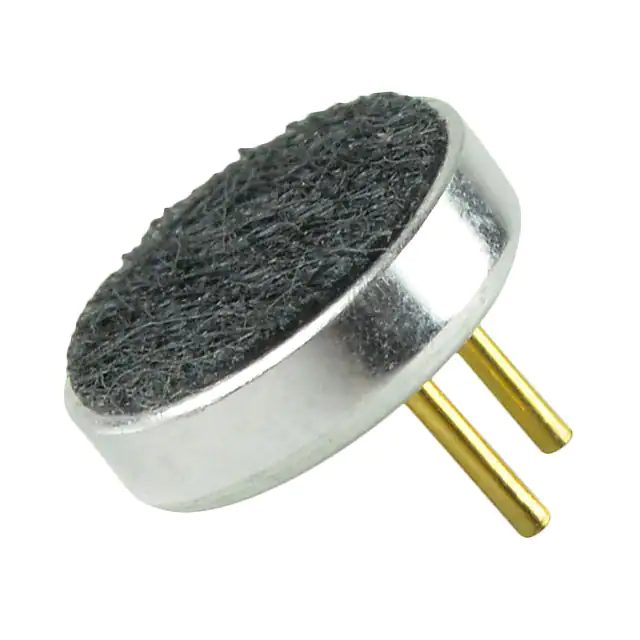

CMC-6015-42PMIC COND ANLG OMNI -42DB 0.236"D |
3,636 |
|
Datasheet | CMC | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 400 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.067" (1.70mm) | Circular | - | - |
|
CMC-9745-37L100MIC COND ANLG UNI -37DB 0.382"D |
1,754 |
|
Datasheet | CMC | Bulk | Active | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -37dB ±3dB @ 94dB SPL | 72dB | 2 kOhms | 1.5 V | 1.5 V ~ 9 V | 400 µA | Top | - | Wire Leads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
CMC-6036-40L100MIC COND ANLG OMNI -40DB 0.236"D |
4,864 |
|
Datasheet | CMC | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -40dB ±2dB @ 94dB SPL | 56dB | 2.2 kOhms | 3 V | 3 V ~ 10 V | 500 µA | Top | - | Wire Leads | 0.236" Dia (6.00mm) | 0.150" (3.80mm) | Circular | - | - |
