Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

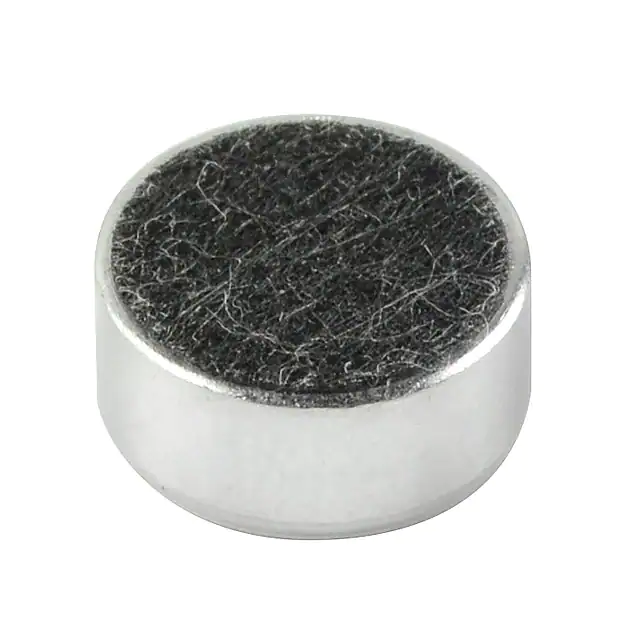

CMC-9745-37T3MIC COND ANLG UNI -37DB 0.382"D |
1,215 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -37dB ±3dB @ 94dB SPL | 72dB | 2 kOhms | 1.5 V | 1.5 V ~ 9 V | 400 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
CMC-97452-L100MIC COND ANLG UNI -37DB 0.382"D |
1,039 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -37dB ±3dB @ 94dB SPL | 69dB | 2.2 kOhms | 1.5 V | 1.5 V ~ 9 V | 400 µA | Top | - | Wire Leads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
CMEJ-4618-42-L010MIC COND ANLG OMNI -42DB 0.181"D |
1,418 |
|
Datasheet | CMEJ | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 60dB | - | 2 V | - | 500 µA | Top | - | Wire Leads | 0.181" Dia (4.60mm) | 0.079" (2.00mm) | Circular | - | - |
|
CMC-5044TF-AMIC COND ANLG OMNI -44DB 0.236"D |
16,203 |
|
Datasheet | - | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -44dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.205" (5.20mm) | Circular | - | - |
|
CMEJ-4618-42-L177MIC COND ANLG OMNI -42DB 0.181"D |
3,112 |
|
Datasheet | CMEJ | Bag | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 60dB | - | 2 V | - | 500 µA | Top | - | Wire Leads | 0.181" Dia (4.60mm) | 0.079" (2.00mm) | Circular | - | - |
|
CMEJ-4618-38-L060MIC COND ANLG OMNI -38DB 0.181"D |
2,500 |
|
Datasheet | CMEJ | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±3dB @ 94dB SPL | 60dB | - | 2 V | - | 500 µA | Top | - | Wire Leads | 0.181" Dia (4.60mm) | 0.079" (2.00mm) | Circular | - | - |
|
CMM-2718AT-42116-TRMIC MEMS ANALOG OMNI -42DB |
1,695 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±1dB @ 94dB SPL | 57dB | - | 2 V | 1.6 V ~ 3.6 V | 160 µA | Top | - | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.037" (0.95mm) | Rectangular | - | - |
|
CMM-2718AB-38108-TRMIC MEMS ANALOG OMNI -38DB |
4,008 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±1dB @ 94dB SPL | 65dB | 400 Ohms | 2 V | 1.6 V ~ 3.6 V | 75 µA | Bottom | - | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.037" (0.95mm) | Rectangular | - | - |
|
CMC-6027-32TMIC COND ANLG OMNI -32DB 0.236"D |
8,559 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 50 Hz ~ 10 kHz | -32dB ±3dB @ 94dB SPL | 70dB | 2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.138" (3.50mm) | Circular | - | - |
|
CMC-2742PBJ-AMIC COND ANLG OMNI -42DB 0.236"D |
14,390 |
|
Datasheet | - | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | - | 2 V ~ 10 V | 400 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.114" (2.90mm) | Circular | - | - |
