Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMM-3722AT-42116-TRMIC MEMS ANALOG OMNI -42DB |
2,248 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±1dB @ 94dB SPL | 57dB | - | 2 V | 1.6 V ~ 3.6 V | 160 µA | Top | - | Solder Pads | 0.148" L x 0.088" W (3.76mm x 2.24mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
CMC-4015-40TMIC COND ANLG OMNI -40DB 0.157"D |
3,461 |
|
Datasheet | CMC | Bulk | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -40dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Circular | - | - |
|
CMM-3312AT-44308-TRMIC MEMS ANLG OMNI -44DB 0.130"D |
4,337 |
|
Datasheet | CMM | Tape & Reel (TR) | Obsolete | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -44dB ±3dB @ 94dB SPL | 58dB | - | 2 V | 1.6 V ~ 3.6 V | 80 µA | Top | - | Solder Pads | 0.130" Dia (3.30mm) | 0.051" (1.30mm) | Circular | - | - |
|

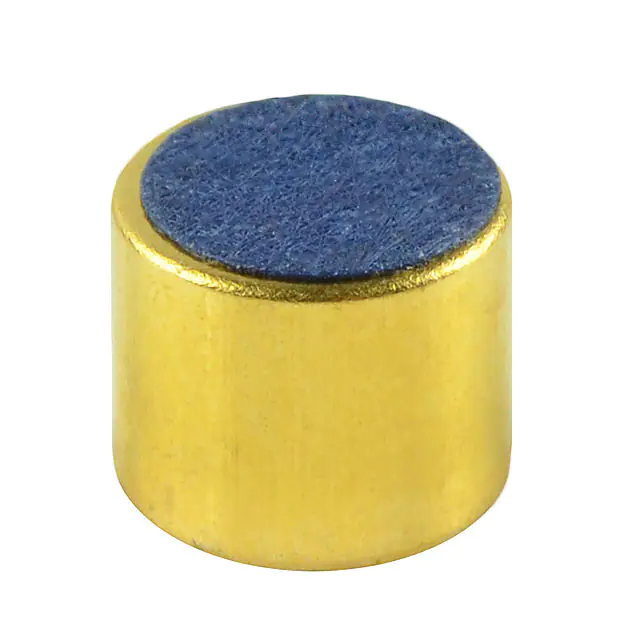

CMC-6050-40TMIC COND ANLG OMNI -40DB 0.236"D |
4,846 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -40dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.236" Dia (6.00mm) | 0.205" (5.20mm) | Circular | - | - |
|
CMM-3729AT-42308-TRMIC MEMS ANALOG OMNI -42DB |
1,558 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB @ 94dB SPL | 60dB | - | 2 V | 1.6 V ~ 3.6 V | 80 µA | Top | - | Solder Pads | 0.148" L x 0.116" W (3.76mm x 2.95mm) | 0.047" (1.20mm) | Rectangular | - | - |
|
CME-1538-100LBMIC COND ANLG OMNI -38DB 0.157"D |
4,378 |
|
Datasheet | - | Bag | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -38dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Wire Leads | 0.157" Dia (4.00mm) | 0.114" (2.90mm) | Circular | - | - |
|
CMC-5042PF-ACMIC COND ANLG OMNI -42DB 0.236"D |
2,310 |
|
Datasheet | - | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 56dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.236" Dia (6.00mm) | 0.205" (5.20mm) | Circular | - | - |
|
CMP-5247TF-KMIC COND ANLG NC -47DB 0.382"DIA |
3,099 |
|
Datasheet | - | Box | Active | Electret Condenser | Analog | Noise Cancelling | 100 Hz ~ 20 kHz | -47dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | - | 1.5 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.213" (5.40mm) | Circular | - | - |
|
CMC-6027-42L100MIC COND ANLG OMNI -42DB 0.236"D |
2,601 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 57dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP57 - Dust Protected, Waterproof | Wire Leads | 0.236" Dia (6.00mm) | 0.161" (4.10mm) | Circular | - | - |
|
CMC-4015-130TMIC COND ANLG OMNI -42DB 0.157"D |
4,745 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | IP67 - Dust Tight, Waterproof | Solder Pads | 0.157" Dia (4.00mm) | 0.059" (1.50mm) | Circular | - | - |
