Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMM-4030DT-26165-TRMIC MEMS DIGITAL PDM OMNI -26DB |
2,189 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±1dB | 65dB | 100 Ohms | 1.8 V | 1.6 V ~ 3.6 V | 850 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.039" (1.00mm) | Rectangular | - | - |
|
CMM-4030DT-26164-TRMIC MEMS DIGITAL PDM OMNI -26DB |
2,177 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±1dB @ 94dB SPL | 64dB | - | 1.8 V | 1.6 V ~ 3.6 V | 670 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.039" (1.00mm) | Rectangular | - | - |
|
CMC-6018-44L100MIC COND ANLG OMNI -44DB 0.236"D |
897 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -44dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Wire Leads | 0.236" Dia (6.00mm) | 0.079" (2.00mm) | Circular | - | - |
|
CMM-3526DB-37165-TRMIC MEMS DIGITAL PDM OMNI -37DB |
1,091 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -37dB ±1dB @ 94dB SPL | 65dB | - | 1.8 V | 1.6 V ~ 3.6 V | 1.12 mA | Bottom | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.039" (0.98mm) | Rectangular | - | - |
|

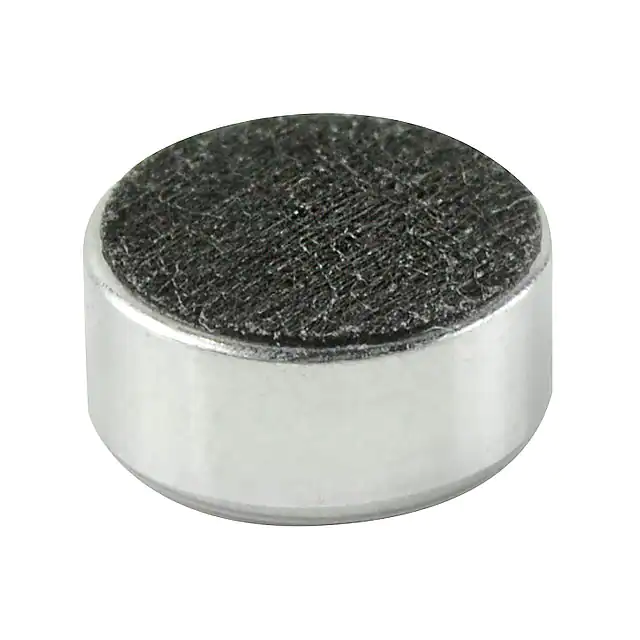

CMC-9745-37T2MIC COND ANLG UNI -37DB 0.382"D |
797 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -37dB ±3dB @ 94dB SPL | 69dB | 2 kOhms | 1.5 V | 1.5 V ~ 9 V | 400 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
CMM-4030DT-261280-TRDIGITAL, TOP PORT, 2.6 VDC |
5,063 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 100 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 58dB | - | - | 1.65 V ~ 3.6 V | 680 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.039" (1.00mm) | Rectangular | - | - |
|
|
CMM-3526DB-26165-TRDIGITAL, BOTTOM PORT, 2.6VDC |
5,682 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 65dB | - | - | 1.6 V ~ 3.6 V | 540 µA | Bottom | - | Solder Pads | 0.138" L x 0.104" W (3.50mm x 2.65mm) | 0.039" (0.98mm) | Rectangular | - | - |
|
|
CMM-2718AB-38162W-TR2.75MMX1.85MMX.9MM, OMNI, ANALOG |
2,096 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -38dB ±1dB @ 94dB SPL | 62dB | 200 Ohms | - | 1.5 V ~ 3.6 V | 170 µA | Bottom | - | - | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.039" (1.00mm) | Rectangular | - | - |
|
|
CMM-2718AB-38164W-TR2.75MMX1.85MMX.9MM, OMNI, ANALOG |
1,482 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -38dB ±1dB @ 94dB SPL | 64dB | 170 Ohms | - | 1.5 V ~ 3.6 V | 175 µA | Bottom | - | - | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.039" (1.00mm) | Rectangular | - | - |
|
|
CMM-4030DT-261075-TRDIGITAL, TOP PORT, 2.6VDC |
5,229 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Digital, PDM | Omnidirectional | 20 Hz ~ 10 kHz | -26dB ±3dB @ 94dB SPL | 65dB | - | - | 1.6 V ~ 3.6 V | 750 µA | Top | - | Solder Pads | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.039" (1.00mm) | Rectangular | - | - |
