Microphones
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Output Type | Direction | Frequency Range | Sensitivity | S/N Ratio | Impedance | Voltage - Rated | Voltage Range | Current - Supply | Port Location | Ratings | Termination | Size / Dimension | Height (Max) | Shape | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMC-3015-44TMIC COND ANLG OMNI -44DB 0.118"D |
507 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -44dB ±3dB @ 94dB SPL | 56dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.118" Dia (3.00mm) | 0.067" (1.70mm) | Circular | - | - |
|
CMC-4013-2-SMT-TRMIC COND ANLG OMNI -42DB 0.157"D |
2,718 |
|
Datasheet | CMC | Tape & Reel (TR) | Active | Electret Condenser | Analog | Omnidirectional | 20 Hz ~ 20 kHz | -42dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | - | 500 µA | Top | - | Surface Mount | 0.157" Dia (4.00mm) | 0.051" (1.30mm) | Circular | - | - |
|
CMC-6013-38L100MICROPHONE COND ANALOG OMNI |
815 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -38dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 150 µA | Top | - | Wire Leads | 0.236" (5.90mm) Height | 0.059" (1.50mm) | Circular | - | - |
|
CMC-4015-25TMIC COND ANLG OMNI -25DB 0.157"D |
1,748 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -25dB ±3dB @ 94dB SPL | 62dB | 2.2 kOhms | 3 V | 3 V ~ 10 V | 500 µA | Top | - | Solder Pads | 0.157" Dia (4.00mm) | 0.067" (1.70mm) | Circular | - | - |
|
CMC-4012-40PMIC COND ANLG OMNI -40DB 0.157"D |
1,056 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -40dB ±3dB @ 94dB SPL | 58dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | PC Pins | 0.157" Dia (4.00mm) | 0.053" (1.35mm) | Circular | - | - |
|

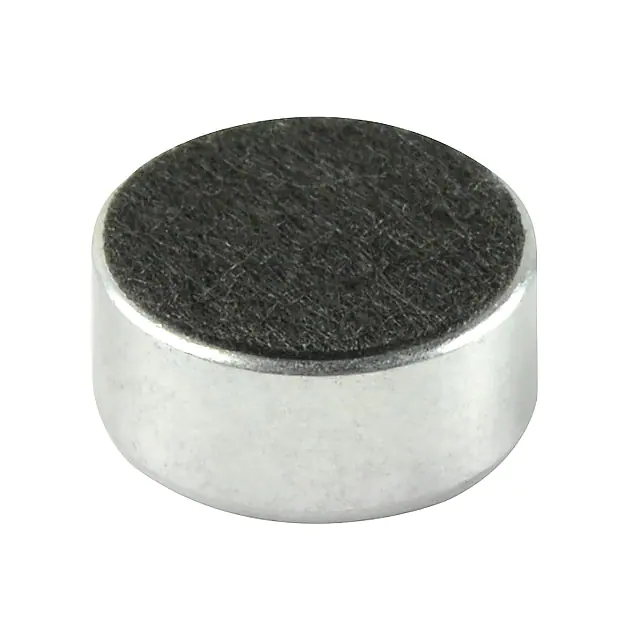

CMC-9745-37TMIC COND ANLG UNI -37DB 0.382"D |
1,991 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Unidirectional | 100 Hz ~ 12 kHz | -37dB ±3dB @ 94dB SPL | 69dB | 2.2 kOhms | 1.5 V | 1.5 V ~ 9 V | 400 µA | Top | - | Solder Pads | 0.382" Dia (9.70mm) | 0.185" (4.70mm) | Circular | - | - |
|
CMM-2718AT-42358-TRMIC MEMS ANALOG OMNI -42DB |
641 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -42dB ±3dB | 58dB | 200 Ohms | 1.8 V | 1.5 V ~ 3.6 V | 170 µA | Top | - | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.037" (0.95mm) | Rectangular | - | - |
|
CMM-2718AB-3815NC-TRMIC MEMS ANALOG OMNI -38DB |
4,338 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 20 Hz ~ 10 kHz | -38dB ±1dB | 62dB | 200 Ohms | 1.8 V | 1.5 V ~ 3.6 V | 170 µA | Bottom | - | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.035" (0.90mm) | Rectangular | - | - |
|
CMC-6022-38L100MIC COND ANLG OMNI -38DB 0.236"D |
891 |
|
Datasheet | CMC | Box | Active | Electret Condenser | Analog | Omnidirectional | 100 Hz ~ 20 kHz | -38dB ±3dB @ 94dB SPL | 60dB | 2.2 kOhms | 2 V | 2 V ~ 10 V | 500 µA | Top | - | Wire Leads | 0.236" Dia (6.00mm) | 0.094" (2.40mm) | Circular | - | - |
|
CMM-2718AB-38164-TRMIC MEMS ANALOG OMNI -38DB |
1,910 |
|
Datasheet | CMM | Tape & Reel (TR) | Active | MEMS (Silicon) | Analog | Omnidirectional | 100 Hz ~ 10 kHz | -38dB ±1dB | 64dB | 200 Ohms | 1.8 V | 1.5 V ~ 3.6 V | 175 µA | Bottom | - | Solder Pads | 0.108" L x 0.073" W (2.75mm x 1.85mm) | 0.035" (0.90mm) | Rectangular | - | - |
