Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WS10850100F130SASWITCH SNAP ACT SPDT 0.1A 125V |
415 |
|
Datasheet | WS1 | Box | Active | SPDT | On-On | 100mA (AC/DC) | 125 V | 48 V | Round (Pin Plunger) | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 130gf | - | - | - | - | - | -40°C ~ 85°C |
|
WS20850100F183S1ASWITCH SNAP ACTION SPDT 2A 250V |
902 |
|
Datasheet | WS2 | Box | Active | SPDT | On-On | 2A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 183gf | - | - | - | - | - | -25°C ~ 85°C |
|

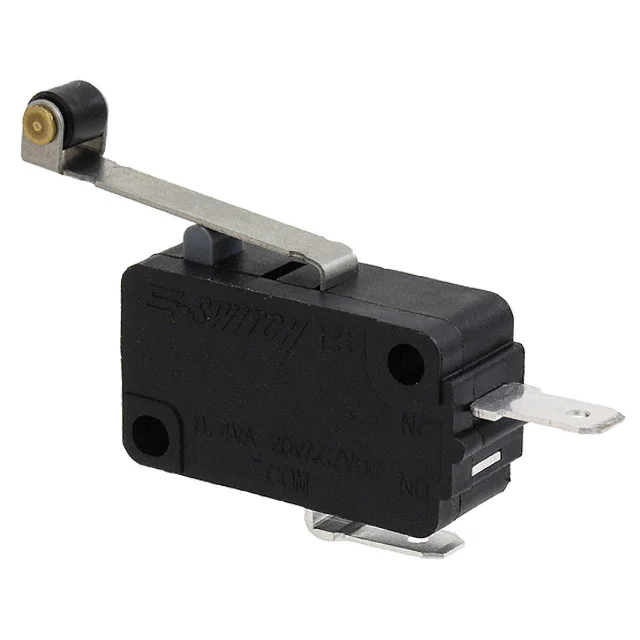

LS085R106F120C1BSWITCH SNP ACT SPST-NC 0.4VA 20V |
284 |
|
Datasheet | LS | Bulk | Active | SPST-NC | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 40gf | 0.815" (20.7mm) | 0.218" (5.5mm) | - | - | -25°C ~ 85°C |
|
PP2-7H1-2D2SWITCH DETECTOR DPDT 10A 277V |
1,753 |
|
Datasheet | PP2 | Bulk | Active | DPDT | On-Mom | 10A (AC) | 277 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | IP40 | - | - | - | 0.378" (9.6mm) | - | - | - | 0°C ~ 85°C |
|

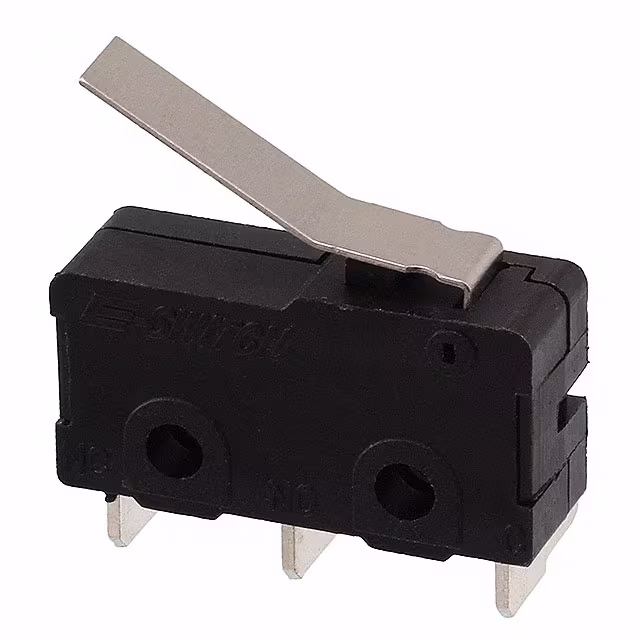

MS0850506F020V2ASWITCH SNAP ACTION SPDT 5A 125V |
594 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 20gf | 8.000gf | 0.547" (13.9mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|

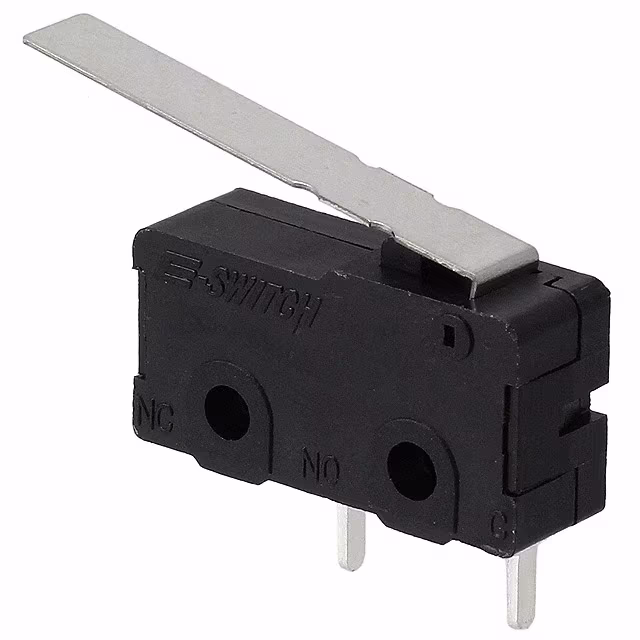

MS0850503F040P1CSWITCH SNAP ACT SPST-NO 5A 125V |
288 |
|
Datasheet | MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 40gf | 20gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
|
TD1250AF160QS1SWITCH DETECT SPST-NO 0.05A 16V |
487 |
|
Datasheet | TD1250 | Bag | Active | SPST-NO | Off-Mom | 50mA (DC) | - | 16 V | Round (Pin Plunger) | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 160gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
TD1250AF160QP1SWITCH DETECT SPST-NO 0.05A 16V |
470 |
|
Datasheet | TD1250 | Bag | Active | SPST-NO | Off-Mom | 50mA (DC) | - | 16 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 160gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
SS0750301F040V1ASWITCH SNAP ACTION SPDT 3A 125V |
1,920 |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 40gf | 15gf | 0.345" (8.8mm) | 0.063" (1.6mm) | - | - | -25°C ~ 75°C |
|
MS0850502F025S1ASWITCH SNAP ACTION SPDT 5A 125V |
174 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 25gf | 12gf | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
