Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS0850502F01S1ASWITCH SNAP ACTION SPDT 5A 125V |
406 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | - | - | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
|
|
MS0850500F130S1ASWITCH SNAP ACTION SPDT 5A 125V |
384 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 130gf | 40gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|

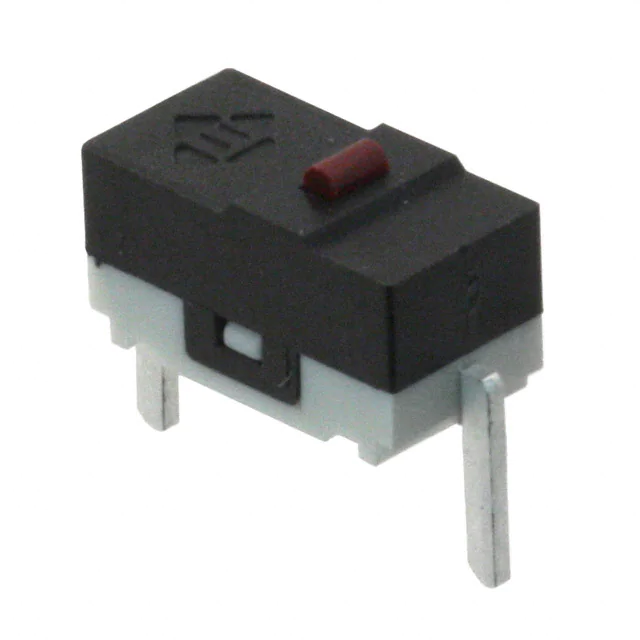

TS10100F070PSWITCH SNP ACT SPST-NO 0.1A 125V |
910 |
|
Datasheet | TS1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 48 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 70gf | - | 0.209" (5.3mm) | 0.014" (0.35mm) | - | - | -15°C ~ 55°C |
|
MS0850501F025C1ASWITCH SNAP ACTION SPDT 5A 125V |
414 |
|
Datasheet | MS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 25gf | 12gf | 0.358" (9.1mm) | 0.140" (3.6mm) | - | - | -25°C ~ 85°C |
|

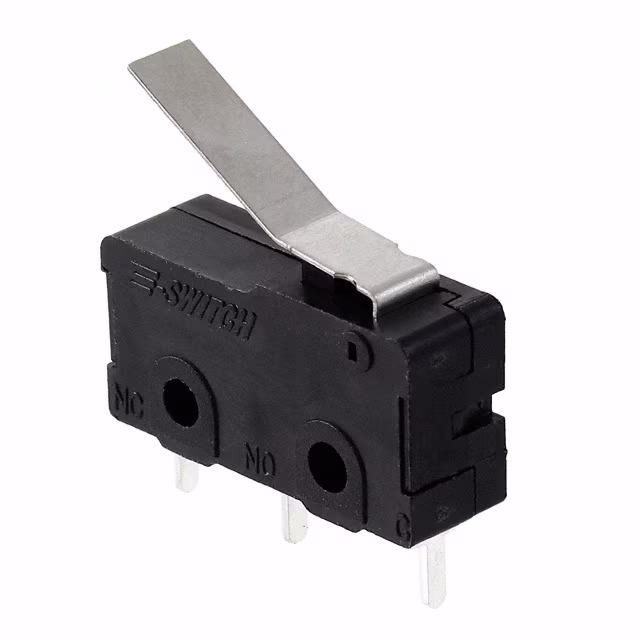

MS0850506F035P1ASWITCH SNAP ACTION SPDT 5A 125V |
4,775 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Through Hole | PC Pin | - | - | 35gf | 20gf | 0.547" (13.9mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|

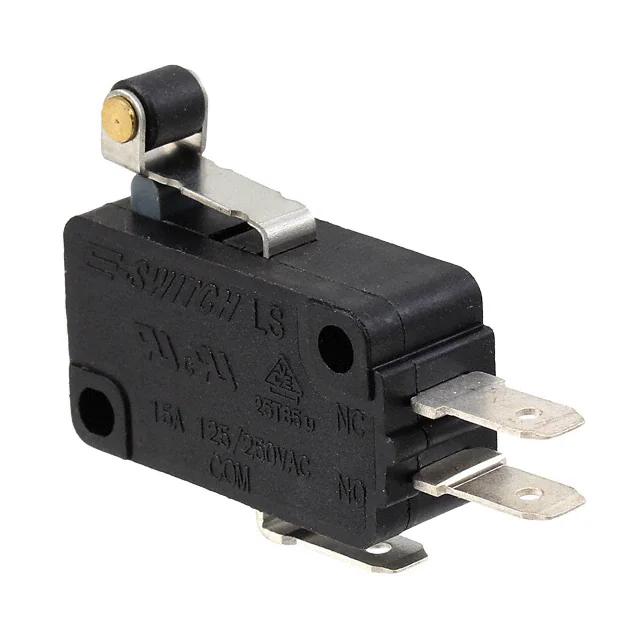

LS0851505F160C1ASWITCH SNAP ACTION SPDT 15A 125V |
2,337 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 160gf | 40gf | 0.815" (20.7mm) | 0.106" (2.7mm) | - | - | -25°C ~ 85°C |
|

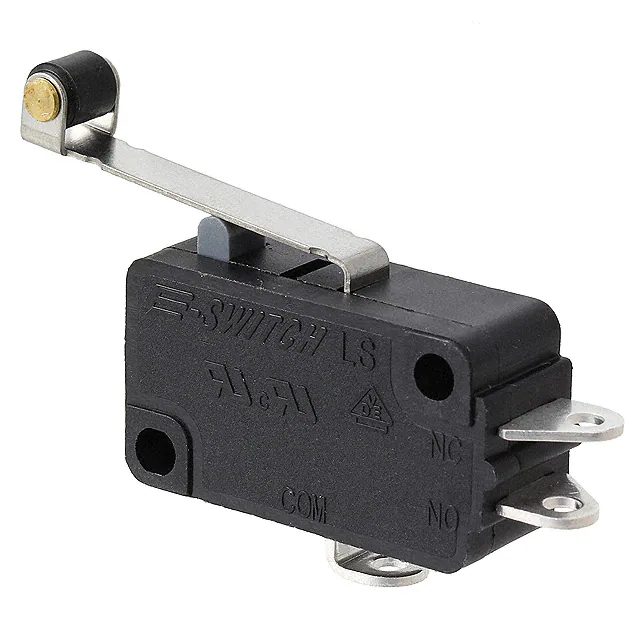

LS0851506F045S1ASWITCH SNAP ACTION SPDT 15A 125V |
1,175 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 45gf | 15gf | 0.815" (20.7mm) | 0.218" (5.5mm) | - | - | -25°C ~ 85°C |
|
WS0850101F050PASWITCH SNAP ACTION SPDT 1A 24V |
4,935 |
|
Datasheet | WS | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 24 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 50gf | - | 0.528" (13.4mm) | - | - | - | -25°C ~ 85°C |
|

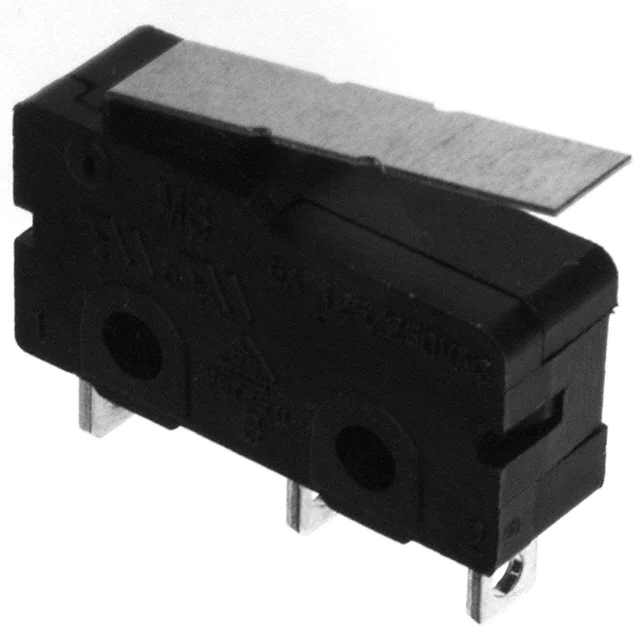

MS0850502F050S1ASWITCH SNAP ACTION SPDT 5A 125V |
4,338 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 50gf | 20gf | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
|

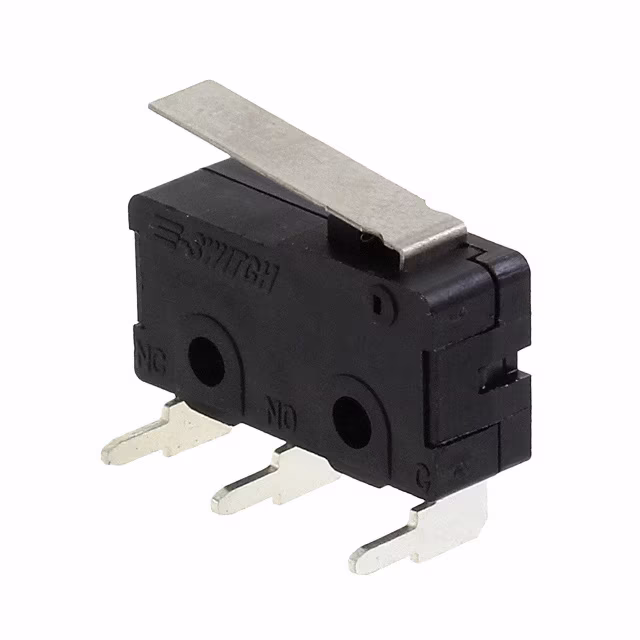

MS0850501F045V1ASWITCH SNAP ACTION SPDT 5A 125V |
4,954 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 45gf | 20gf | 0.358" (9.1mm) | 0.140" (3.6mm) | - | - | -25°C ~ 85°C |
