Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

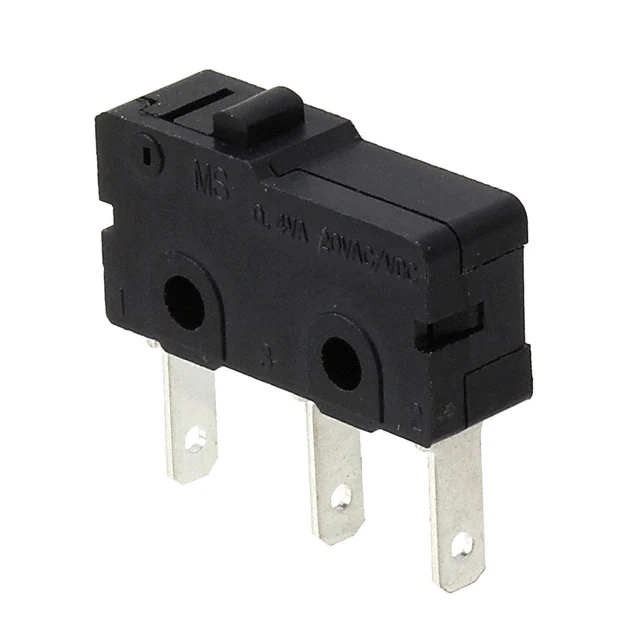

MS085R100F130C1ASWITCH SNAP ACT SPDT 0.4VA 20V |
248 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 130gf | 40gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
MS085R101F070S1ASWITCH SNAP ACT SPDT 0.4VA 20V |
2,097 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 70gf | 25gf | 0.358" (9.1mm) | 0.140" (3.6mm) | - | - | -25°C ~ 85°C |
|
LS0851506F120C1ASWITCH SNAP ACTION SPDT 15A 125V |
1,109 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 40gf | 0.815" (20.7mm) | 0.218" (5.5mm) | - | - | -25°C ~ 85°C |
|

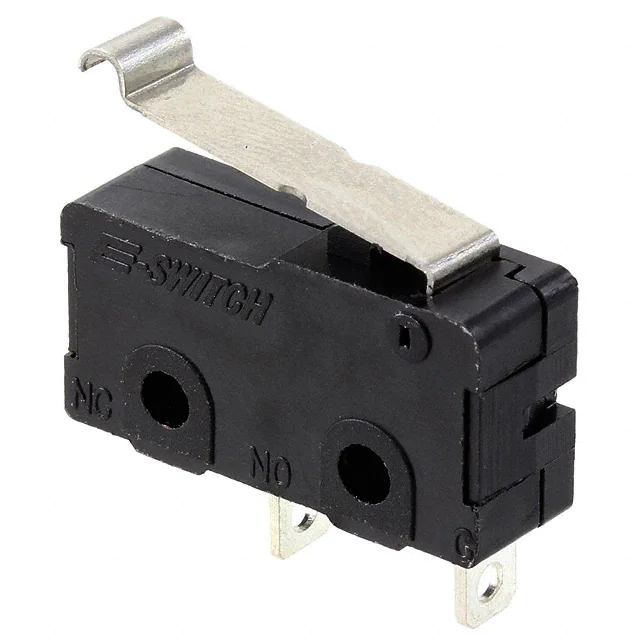

MS0850504F035S1CSWITCH SNAP ACT SPST-NO 5A 125V |
1,324 |
|
Datasheet | MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 35gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|

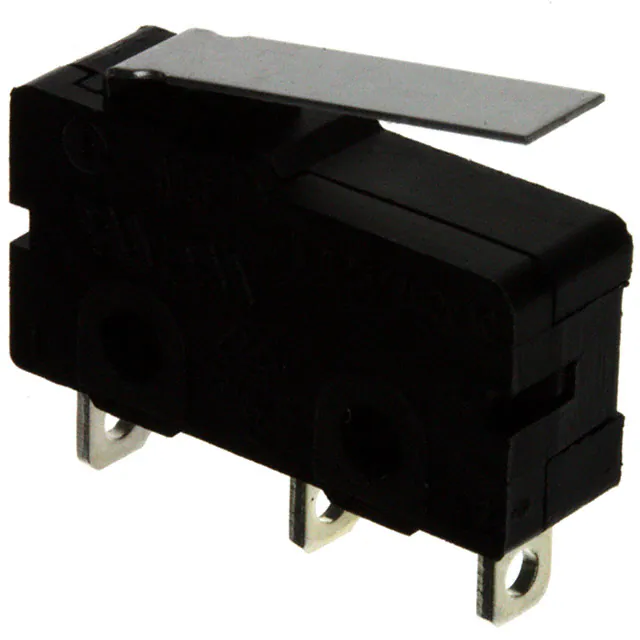

MS0850501F070S1ASWITCH SNAP ACTION SPDT 5A 125V |
2,513 |
|
Datasheet | MS | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 70gf | 25gf | 0.358" (9.1mm) | 0.140" (3.6mm) | - | - | -25°C ~ 85°C |
|
MS0850502F025V1ASWITCH SNAP ACTION SPDT 5A 125V |
2,589 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 25gf | 12gf | 0.358" (9.1mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
LS0851504F140C1ASWITCH SNAP ACTION SPDT 15A 125V |
1,363 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 140gf | 40gf | 0.748" (19.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
MS0850500F080S1ASWITCH SNAP ACTION SPDT 5A 125V |
2,588 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 80gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
|
SS0750101F015P1ASWITCH SNAP ACTION SPDT 3A 125V |
4,583 |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 15gf | 5.000gf | 0.346" (8.80mm) | 0.063" (1.6mm) | - | - | -25°C ~ 75°C |
|
|
SS0750300F130S1ASWITCH SNAP ACTION SPDT 3A 125V |
3,070 |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 130gf | 60gf | 0.276" (7.0mm) | 0.014" (0.35mm) | - | - | -25°C ~ 75°C |
