Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PP2-7U1-2B2SWITCH DETECTOR DPDT 10A 277V |
4,489 |
|
Datasheet | PP2 | Bulk | Active | DPDT | On-On-Mom | 10A (AC) | 277 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | IP40 | - | 330gf | - | 0.610" (15.5mm) | - | - | - | 0°C ~ 85°C |
|
SS075Q103F040V1ASWITCH SNAP ACT SPDT 0.1A 125V |
608 |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | 15gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
|
|
LS0851506F120V2ASWITCH SNAP ACTION SPDT 15A 125V |
1,031 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 120gf | 40gf | 0.815" (20.7mm) | 0.100" (2.5mm) | - | - | -25°C ~ 85°C |
|
|
LS0851506F120V1ASWITCH SNAP ACTION SPDT 15A 125V |
1,028 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 120gf | 40gf | 0.815" (20.7mm) | 0.100" (2.5mm) | - | - | -25°C ~ 85°C |
|

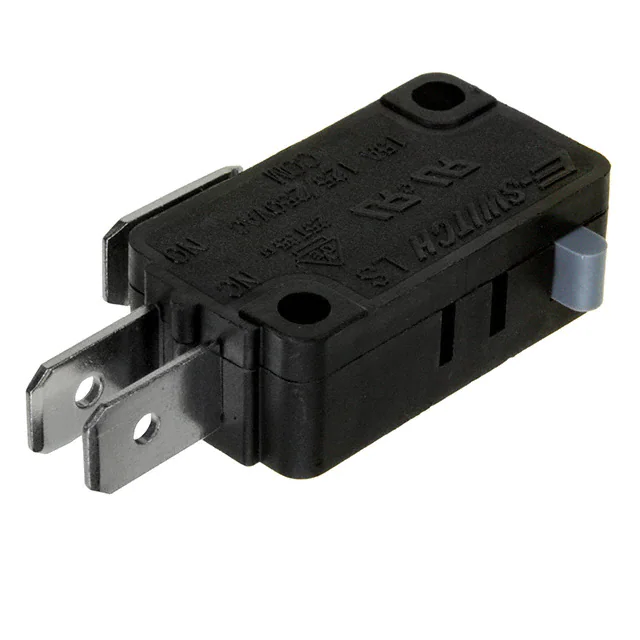

LS0851500F160C2ASWITCH SNAP ACTION SPDT 15A 125V |
576 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
MS085R105F065S1ASWITCH SNAP ACT SPDT 0.4VA 20V |
466 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 65gf | 25gf | 0.587" (14.90mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|

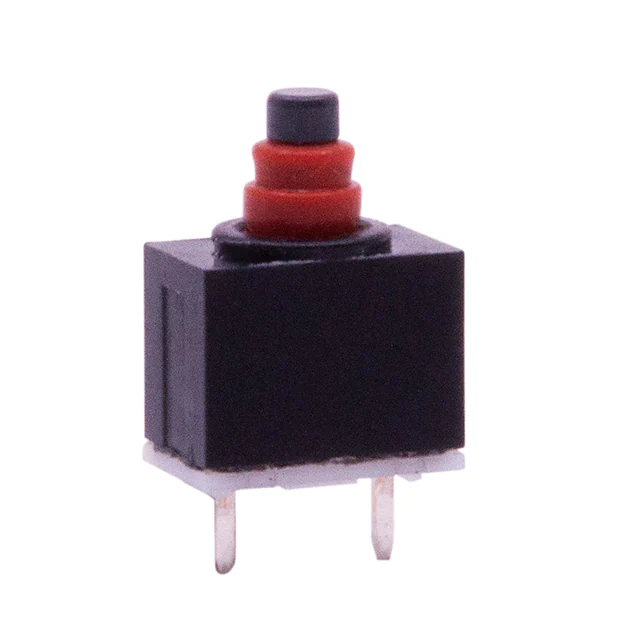

TD1150AF100QSWITCH DETECTOR SPST-NO 0.1A 12V |
1,325 |
|
Datasheet | TD1150 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 100gf | - | - | - | - | - | -40°C ~ 85°C |
|
WS20850100F183C1ASWITCH SNAP ACTION SPDT 2A 250V |
999 |
|
Datasheet | WS2 | Box | Active | SPDT | On-On | 2A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 183gf | - | - | - | - | - | -25°C ~ 85°C |
|
WS20850100F183P1ASWITCH SNAP ACTION SPDT 2A 250V |
950 |
|
Datasheet | WS2 | Box | Active | SPDT | On-On | 2A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 183gf | - | - | - | - | - | -25°C ~ 85°C |
|
WS1085300F130SASWITCH SNAP ACTION SPDT 3A 125V |
995 |
|
Datasheet | WS1 | Box | Active | SPDT | On-On | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 130gf | - | - | - | - | - | -40°C ~ 85°C |
