Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS0101F020V3SWITCH SNAP ACTION SPDT 0.3A 6V |
657 |
|
Datasheet | TS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 6 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 20gf | - | 0.264" (6.7mm) | 0.071" (1.8mm) | - | - | -25°C ~ 85°C |
|
SS0750300F130P1ASWITCH SNAP ACTION SPDT 3A 125V |
1,339 |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 130gf | 60gf | 0.276" (7.0mm) | 0.014" (0.35mm) | - | - | -25°C ~ 75°C |
|
SS075Q103F050P1ASWITCH SNAP ACT SPDT 0.1A 125V |
4,079 |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 50gf | 15gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
|

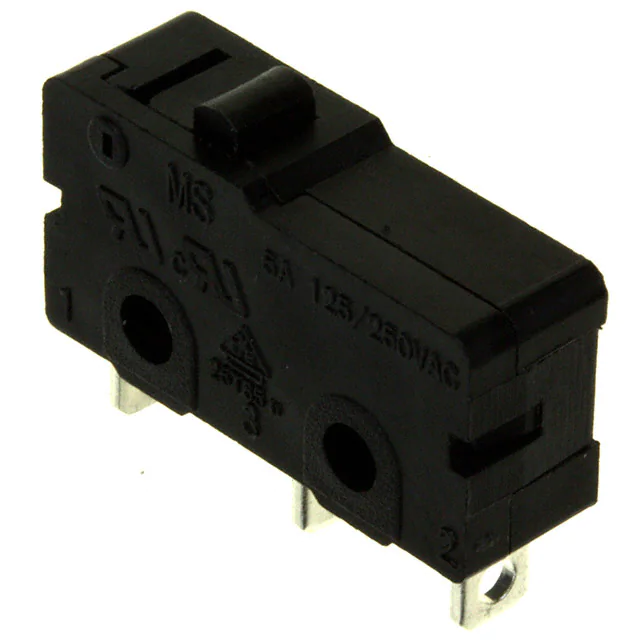

MS0850500F250S1ASWITCH SNAP ACTION SPDT 5A 125V |
700 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 250gf | 50gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
MS0850500F060S1ASWITCH SNAP ACTION SPDT 5A 125V |
134 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 60gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
SS075Q103F030V2ASWITCH SNAP ACT SPDT 0.1A 125V |
1,068 |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 30gf | 10gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
|
MS0850501F045S1ASWITCH SNAP ACTION SPDT 5A 125V |
168 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 45gf | 20gf | 0.358" (9.1mm) | 0.140" (3.6mm) | - | - | -25°C ~ 85°C |
|
MS0850503F040S1ASWITCH SNAP ACTION SPDT 5A 125V |
159 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 40gf | 20gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
900AGQSWITCH DETECTOR SPST-NO 0.1A 50V |
1,760 |
|
Datasheet | 900 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 50 V | Overtravel Plunger | Surface Mount | Gull Wing | - | - | 50gf | - | - | 0.014" (0.35mm) | - | - | -25°C ~ 85°C |
|
MS0850504F035P1ASWITCH SNAP ACTION SPDT 5A 125V |
1,050 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 35gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
