Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS085R105F075V1ASWITCH SNAP ACT SPDT 0.4VA 20V |
3,064 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 75gf | 25gf | 0.587" (14.90mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851512F110C1ASWITCH SNAP ACTION SPDT 15A 125V |
4,686 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 110gf | 25gf | 0.787" (20.0mm) | 0.205" (5.2mm) | - | - | -25°C ~ 85°C |
|
|
LS0851501F160V1ASWITCH SNAP ACTION SPDT 15A 125V |
1,516 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 160gf | 40gf | 0.602" (15.3mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851507F100V1ASWITCH SNAP ACTION SPDT 15A 125V |
3,673 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Formed | Through Hole, Right Angle | PC Pin | - | - | 100gf | 30gf | 0.776" (19.7mm) | 0.116" (2.95mm) | - | - | -25°C ~ 85°C |
|
|
LS0851507F100C1ASWITCH SNAP ACTION SPDT 15A 125V |
3,387 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Formed | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 100gf | 30gf | 0.776" (19.7mm) | 0.116" (2.95mm) | - | - | -25°C ~ 85°C |
|
LS0851500F160C2BSWITCH SNAP ACT SPST-NC 15A 125V |
1,531 |
|
Datasheet | LS | Bulk | Active | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F160V2ASWITCH SNAP ACTION SPDT 15A 125V |
2,158 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|

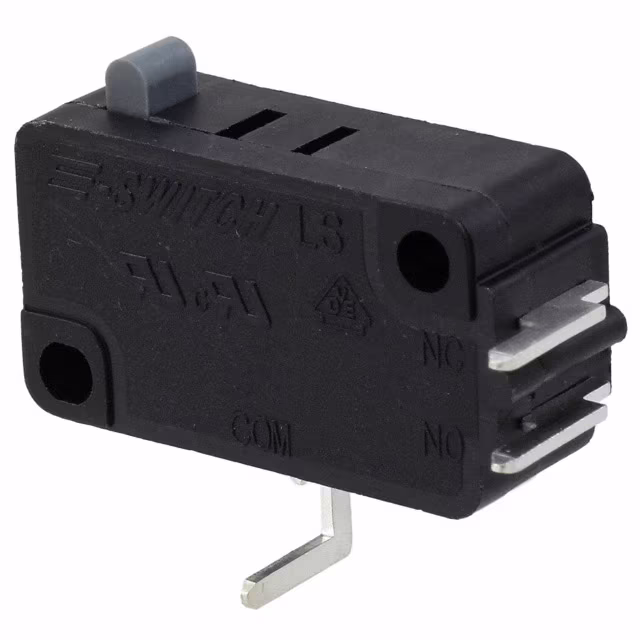

LS0851500F250V2ASWITCH SNAP ACTION SPDT 15A 125V |
1,198 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 250gf | 50gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F100V1CSWITCH SNAP ACT SPST-NO 15A 125V |
2,516 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 100gf | 30gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F160V1CSWITCH SNAP ACT SPST-NO 15A 125V |
3,987 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
