Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS0850505F065S1ASWITCH SNAP ACTION SPDT 5A 125V |
4,311 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 65gf | 25gf | 0.587" (14.90mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
|
SS075R101F020V1ASwitches |
3,889 |
|
Datasheet | SS | Bulk | Active | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 20gf | 5.000gf | 0.346" (8.80mm) | 0.063" (1.6mm) | - | - | -25°C ~ 75°C |
|
|
MS0850503F035V1ASWITCH SNAP ACTION SPDT 5A 125V |
2,092 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 35gf | 20gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
|
MS0850505F050P1ASWITCH SNAP ACTION SPDT 5A 125V |
3,981 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Through Hole | PC Pin | - | - | 50gf | 20gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
|
MS0850505F020C1CSWITCH SNAP ACT SPST-NO 5A 125V |
3,990 |
|
Datasheet | MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 20gf | 8.000gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
|
MS0850505F040V2ASWITCH SNAP ACTION SPDT 5A 125V |
3,007 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 40gf | 20gf | 0.587" (14.9mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851502F120C2ASWITCH SNAP ACTION SPDT 15A 125V |
2,063 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC/DC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 120gf | 40gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
|
SS075R101F020S1ASWITCH SNAP ACT SPDT 0.4VA 20V |
1,572 |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 20gf | 5.000gf | 0.345" (8.8mm) | 0.063" (1.6mm) | - | - | -25°C ~ 75°C |
|

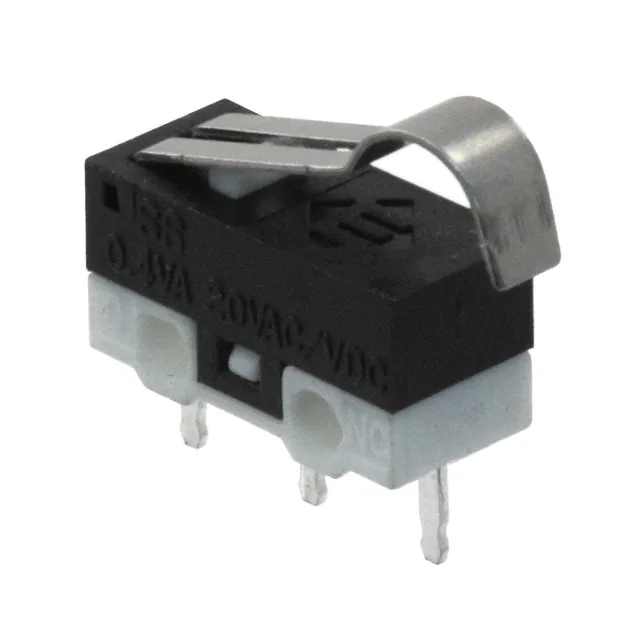

SS075R103F050P1ASWITCH SNAP ACT SPDT 0.4VA 20V |
3,222 |
|
Datasheet | SS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 50gf | 15gf | 0.380" (9.7mm) | 0.053" (1.35mm) | - | - | -25°C ~ 75°C |
|

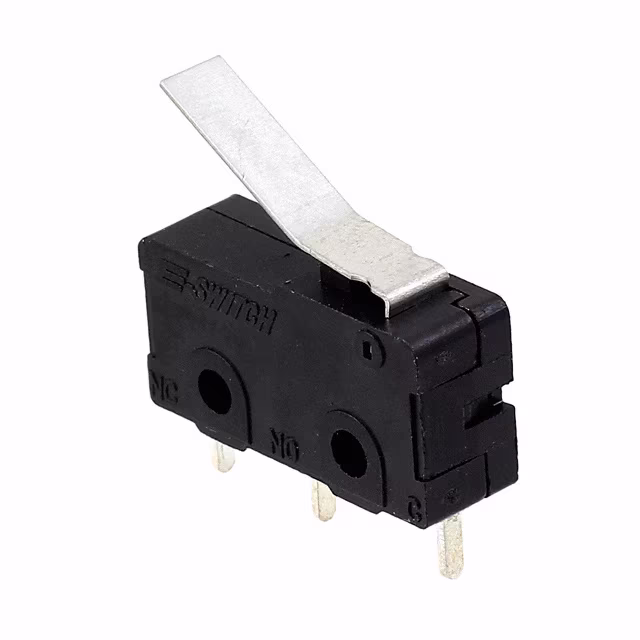

MS0850506F075P1ASWITCH SNAP ACTION SPDT 5A 125V |
1,936 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Through Hole | PC Pin | - | - | 75gf | 25gf | 0.547" (13.9mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
