Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS085R104F065P1ASWITCH SNAP ACT SPDT 0.4VA 20V |
2,693 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 65gf | 25gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
|
LS0851502F075C1CSWITCH SNAP ACT SPST-NO 15A 125V |
1,164 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 75gf | 25gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
|
LS0851503F025C1BSWITCH SNAP ACT SPST-NC 15A 125V |
4,743 |
|
Datasheet | LS | Bulk | Active | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 25gf | 10gf | 0.602" (15.3mm) | 0.335" (8.5mm) | - | - | -25°C ~ 85°C |
|
|
LS0851503F040C1CSWITCH SNAP ACT SPST-NO 15A 125V |
3,224 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 40gf | 15gf | 0.602" (15.3mm) | 0.335" (8.5mm) | - | - | -25°C ~ 85°C |
|

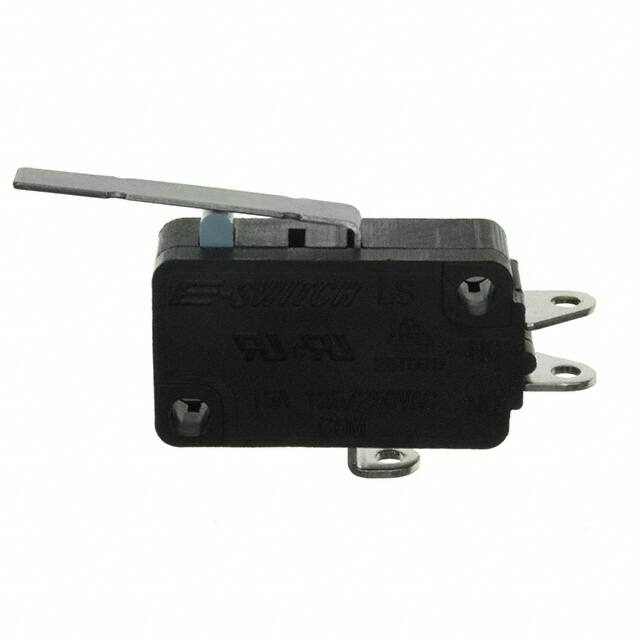

LS0851502F045S1ASWITCH SNAP ACTION SPDT 15A 125V |
4,891 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 45gf | 20gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
LS0851502F075S1ASWITCH SNAP ACTION SPDT 15A 125V |
1,785 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 75gf | 25gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|

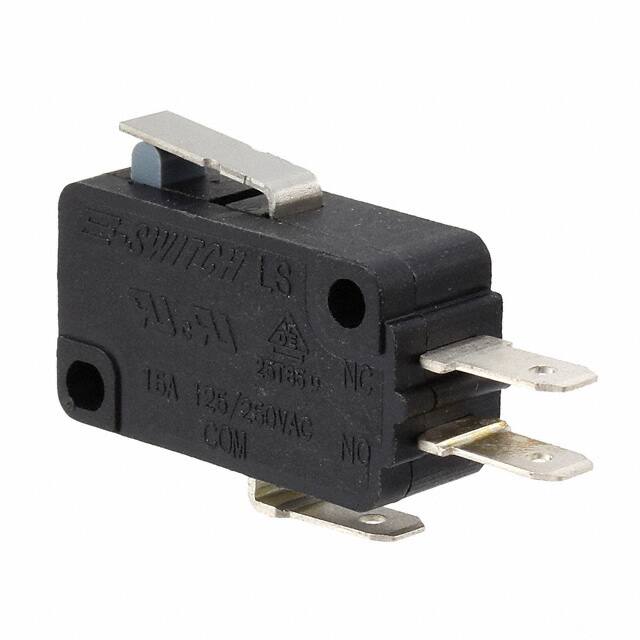

LS0851501F100C1ASWITCH SNAP ACTION SPDT 15A 125V |
1,252 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 100gf | 30gf | 0.602" (15.3mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851501F160C2ASWITCH SNAP ACTION SPDT 15A 125V |
3,905 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 160gf | 40gf | 0.602" (15.3mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851502F045C2ASWITCH SNAP ACTION SPDT 15A 125V |
2,771 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 45gf | 20gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
|
LS0851502F045V1ASWITCH SNAP ACTION SPDT 15A 125V |
1,140 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 45gf | 20gf | 0.610" (15.5mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
