Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS0851500F160V1ASWITCH SNAP ACTION SPDT 15A 125V |
1,473 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|

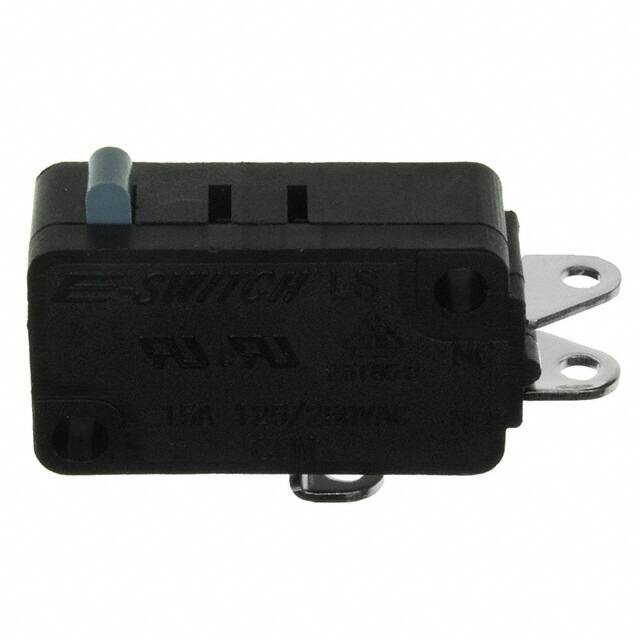

LS0851500F100S1ASWITCH SNAP ACTION SPDT 15A 125V |
1,483 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 100gf | 30gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F160S1ASWITCH SNAP ACTION SPDT 15A 125V |
1,998 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F250C1BSWITCH SNAP ACT SPST-NC 15A 125V |
4,539 |
|
Datasheet | LS | Bulk | Active | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 250gf | 50gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F250C2CSWITCH SNAP ACT SPST-NO 15A 125V |
3,701 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 250gf | 50gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F250S1CSWITCH SNAP ACT SPST-NO 15A 125V |
3,888 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 250gf | 50gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
LS0851500F250V1ASWITCH SNAP ACTION SPDT 15A 125V |
3,338 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 250gf | 50gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F250V1CSWITCH SNAP ACT SPST-NO 15A 125V |
4,028 |
|
Datasheet | LS | Bulk | Active | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 250gf | 50gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
LS0851505F250V1ASWITCH SNAP ACTION SPDT 15A 125V |
3,727 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 250gf | 50gf | 0.815" (20.7mm) | 0.106" (2.7mm) | - | - | -25°C ~ 85°C |
|
|
LS0851505F250S1ASWITCH SNAP ACTION SPDT 15A 125V |
3,712 |
|
Datasheet | LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 250gf | 50gf | 0.815" (20.7mm) | 0.106" (2.7mm) | - | - | -25°C ~ 85°C |
