Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS0850507F040S1ASWITCH SNAP ACTION SPDT 5A 125V |
2,557 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Chassis Mount | Solder Lug | - | - | 40gf | 20gf | 0.492" (12.5mm) | 0.197" (5.0mm) | - | - | -25°C ~ 85°C |
|

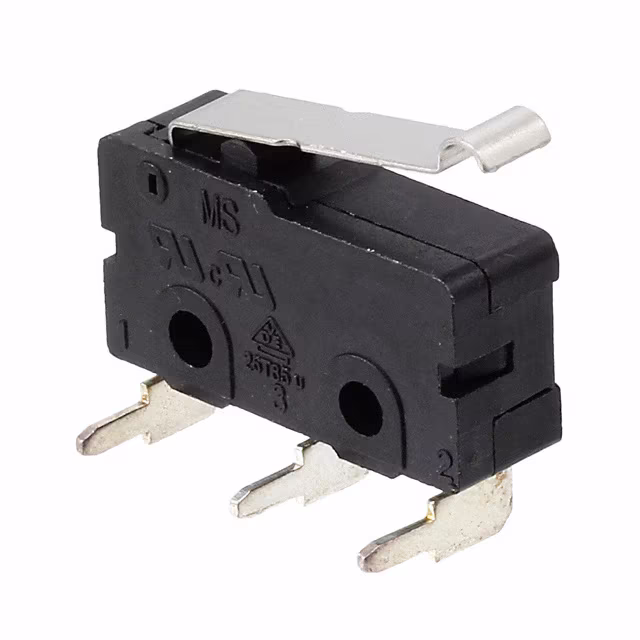

MS0850504F060V2ASWITCH SNAP ACTION SPDT 5A 125V |
4,591 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 60gf | 25gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
|
MS0850504F035V1ASWITCH SNAP ACTION SPDT 5A 125V |
2,281 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 35gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
|
MS0850504F050S1ASWITCH SNAP ACTION SPDT 5A 125V |
4,635 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 50gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
|
MS0850506F035V1ASWITCH SNAP ACTION SPDT 5A 125V |
3,330 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 35gf | 20gf | 0.547" (13.9mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
|
MS0850506F035V2ASWITCH SNAP ACTION SPDT 5A 125V |
1,747 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 35gf | 20gf | 0.547" (13.9mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
|
MS0850506F065S1CSWITCH SNAP ACT SPST-NO 5A 125V |
1,746 |
|
Datasheet | MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Chassis Mount | Solder Lug | - | - | 65gf | 25gf | 0.547" (13.9mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
|
MS0850504F035C1ASWITCH SNAP ACTION SPDT 5A 125V |
2,487 |
|
Datasheet | MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 35gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
|
MS0850504F030V1CSWITCH SNAP ACT SPST-NO 5A 125V |
2,201 |
|
Datasheet | MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 30gf | 12gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
|
MS0850506F030P1CSWITCH SNAP ACT SPST-NO 5A 125V |
2,542 |
|
Datasheet | MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Through Hole | PC Pin | - | - | 30gf | 12gf | 0.547" (13.9mm) | 0.161" (4.1mm) | - | - | -25°C ~ 85°C |
