Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BU-4150029036COAX CBL SMA TO SMA |
223 |
|
Datasheet | BU | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 3 GHz | Copper | Shielded | -65°C ~ 150°C | - | - |
|
CABLE 375 RF-150-A-2COAX CBL MHF1 TO SMA |
403 |
|
Datasheet | Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
MH113-MH1RP-01BJ1-0100COAX CBL U.FL MHF1 TO SMA |
148 |
|
Datasheet | MH113 | Bag | Active | U.FL (UMCC), I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
CABLE 385 RF-200-A-2COAX CBL SMA TO MHF4L |
253 |
|
Datasheet | Nautilus | Bag | Active | SMA to I-PEX MHF4L | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | IP Rated Unmated | -40°C ~ 85°C | - | - |
|
CBA-SMAM-SMAF50COAX CBL SMA TO SMA |
383 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 196.9" (5.0m) 16.4' | RG-58 | 50 Ohms | - | - | - | Black | - | - | - | - |
|
CSE-SGAM-914-SGFBCOAX CBL SMA TO SMA |
131 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | - | 105°C | - | - |
|
CABLE 196 RF-0050-A-1COAX CBL SMA TO MMCX |
515 |
|
Datasheet | Nautilus | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.969" (50.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | IP Rated Unmated | -40°C ~ 125°C | - | - |
|
415-0028-012COAX CBL BNC TO SMA |
531 |
|
Datasheet | - | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|
|
415-0028-018COAX CBL BNC TO SMA |
852 |
|
Datasheet | - | Bulk | Active | BNC to SMA | BNC Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Copper | Shielded | - | - | - |
|

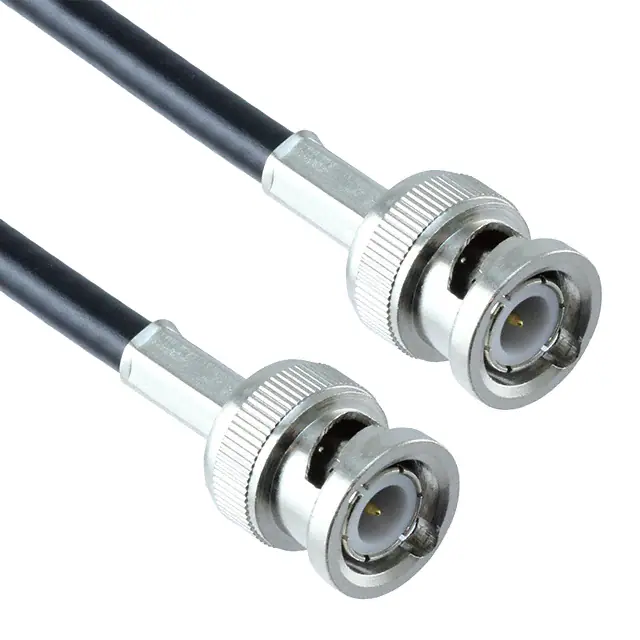

5697-36COAX CBL BNC TO BNC |
780 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | 80°C | - | - |
|
5697-24COAX CBL BNC TO BNC |
645 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | 80°C | - | - |
|
|
5697-12COAX CBL BNC TO BNC |
571 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58C | 50 Ohms | 50 Ohms | 50 Ohms | - | Black | Shielded | 80°C | - | - |
|

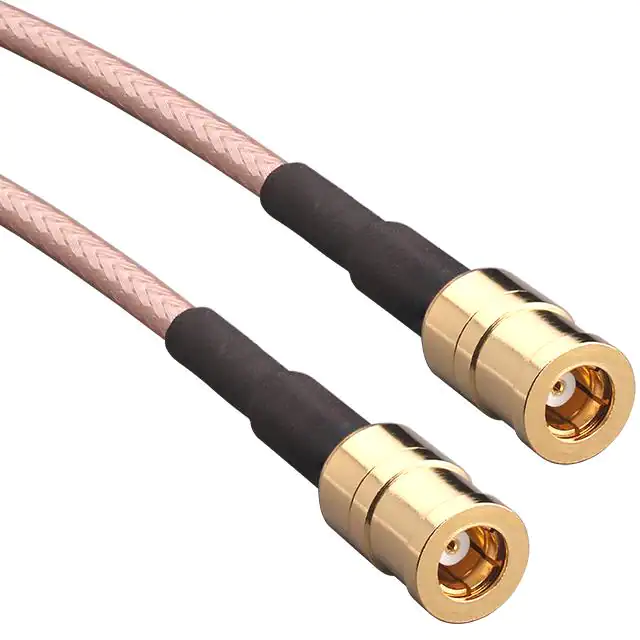

CSE-SMBM-305-SMBMCOAX CBL SMB TO SMB |
183 |
|
Datasheet | - | Bulk | Active | SMB to SMB | SMB Plug | Female | Free Hanging (In-Line) | - | SMB Plug | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | - | 105°C | - | - |
|
CASMA-UFL-10COAX CBL U.FL TO SMA |
355 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 8.000" (203.20mm) | - | - | - | - | - | - | - | - | - | - |
|
CSE-SGAM-610-SGAMCOAX CBL SMA TO SMA |
607 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 | 50 Ohms | - | 50 Ohms | 8 GHz | Copper | - | 105°C | - | - |
|
58-012-1MCOAX CBL BNC TO BNC |
292 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 80°C | - | - |
|
CABLE 196 RF-0150-A-1COAX CBL SMA TO MMCX |
455 |
|
Datasheet | Nautilus | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | IP Rated Unmated | -40°C ~ 125°C | - | - |
|
CCSMA-MM-086-3COAX CBL SMA TO SMA |
292 |
|
Datasheet | CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | Hand Formable .086 | - | - | 50 Ohms | 12 GHz | Silver | Shielded | -40°C ~ 85°C | - | - |
|
CSA-RPSM-216-RSFBCOAX CBL RP-SMA TO RP-SMA |
1,259 |
|
Datasheet | - | Bulk | Active | RP-SMA to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | RP-SMA Plug | Female | - | - | 8.500" (215.90mm) | RG-174 | 50 Ohms | - | - | - | Black | Shielded | - | - | - |
|
CABLE 319 RF-200-A-1COAX CBL MHF1 LK TO SMA |
558 |
|
Datasheet | Nautilus | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 3 GHz | Black | IP Rated Unmated | -40°C ~ 85°C | - | - |
