Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W9011COAX CBL U.FL TO RP-SMA |
1,022 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.000" (279.40mm) | 1.13mm OD Coaxial Cable | - | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
W9006COAX CBL U.FL TO RP-SMA |
759 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | 1.13mm OD Coaxial Cable | - | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
W9011MCOAX CBL U.FL TO SMA |
707 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.000" (279.40mm) | 1.13mm OD Coaxial Cable | - | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
|
W9009MCOAX CBL U.FL TO SMA |
702 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.000" (228.60mm) | 1.13mm OD Coaxial Cable | - | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
YM0003AACOAX CBL MHF1 TO SMA |
3,527 |
|
Datasheet | - | Bag | Active | I-PEX MHF1 to SMA | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | Bulkhead - Front Side Nut | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
415-0085-150COAX CBL U.FL TO U.FL |
609 |
|
Datasheet | UMC | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
W9020MCOAX CBL U.FL TO SMA |
520 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 20.00" (508.00mm) | 1.13mm OD Coaxial Cable | - | - | - | - | Black | - | -40°C ~ 85°C | - | - |
|
851COAX CBL U.FL TO SMA |
529 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | - | - | - | Copper | - | - | - | - |
|
CA-DKCA1-152L0-AJI0COAX CBL U.FL MHF1 TO SMA |
1,010 |
|
Datasheet | CA | Bag | Active | U.FL (UMCC), I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.984" (152.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
0731160065COAX CBL U.FL TO U.FL |
936 |
|
Datasheet | 73116 | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.000" (76.20mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
W9037BD0100COAX CBL RP-SMA TO MHF4 |
3,093 |
|
Datasheet | - | Bag | Active | RP-SMA to I-PEX MHF4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
CSI-RGFB-200-UFFRCOAX CBL U.FL TO RP-SMA |
2,108 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
0734120232COAX CBL U.FL TO U.FL |
2,042 |
|
Datasheet | 73412 | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 2.559" (65.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
CA-DKCA0-305L0-AJI0-OCOAX CBL U.FL MHF1 TO SMA |
401 |
|
Datasheet | CA | Bag | Active | U.FL (UMCC), I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
W9037BD0200COAX CBL RP-SMA TO MHF4 |
1,106 |
|
Datasheet | - | Bag | Active | RP-SMA to I-PEX MHF4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
0734120508COAX CBL U.FL TO U.FL |
1,126 |
|
Datasheet | 73412 | Bulk | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | - |
|

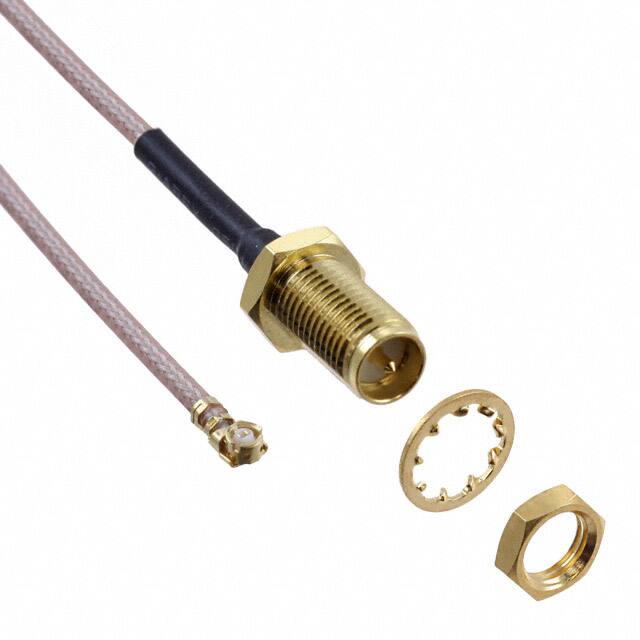

JF1R6-CR3-4ICOAX CBL U.FL TO RP-SMA |
4,091 |
|
Datasheet | - | Box | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.000" (101.60mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
|
2016493-1COAX CBL U.FL TO U.FL |
583 |
|
Datasheet | UMCC | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.181" (30.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | - | Shielded | - | - | - |
|
UFL-2LPHF6-062N1D-AC-50COAX CBL U.FL TO U.FL |
494 |
|
Datasheet | U.FL | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 0.95mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 90°C | - | - |
|
|
W9037BD0250COAX CBL RP-SMA TO MHF4 |
826 |
|
Datasheet | - | Bag | Active | RP-SMA to I-PEX MHF4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 8 GHz | Black | - | -40°C ~ 85°C | - | - |
