Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
W9017BD0200COAX CBL SMA TO MHF4 |
396 |
|
Datasheet | - | Bag | Active | SMA to I-PEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 7.1 GHz | Black | - | -40°C ~ 85°C | - | - |
|
CAB.618.CCOAX CBL U.FL MHF1 TO SMA |
1,421 |
|
Datasheet | - | Bag | Active | U.FL (UMCC), I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | - |
|
CAB.616COAX CBL U.FL MHF1 TO SMA |
1,682 |
|
Datasheet | - | Bag | Active | U.FL (UMCC), I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 1.3 GHz | Black | Shielded | 105°C | - | - |
|

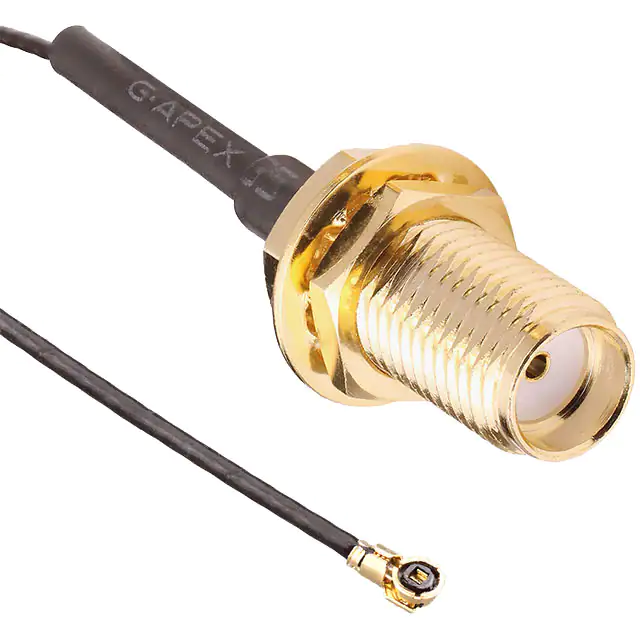

CSJ-SGFB-100-MHF4COAX CBL SMA TO MHF4 |
385 |
|
Datasheet | - | Bulk | Active | SMA to I-PEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
CBA-SMA-MMCXRACOAX CBL SMA TO MMCX |
868 |
|
Datasheet | - | Bulk | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
CAB.628COAX CBL U.FL MHF1 TO RP-SMA |
1,082 |
|
Datasheet | - | Bag | Active | U.FL (UMCC), I-PEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.740" (95.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | - |
|

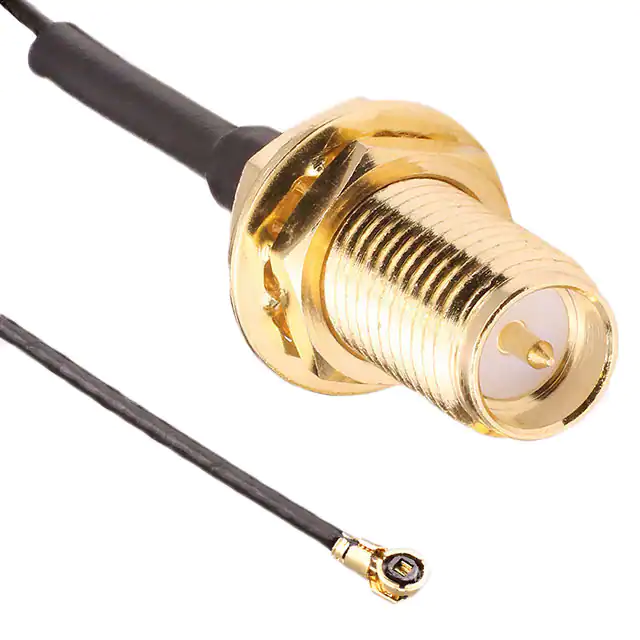

CSJ-RGFB-100-MHF4COAX CBL RP-SMA TO MHF4 |
10,221 |
|
Datasheet | - | Bulk | Active | RP-SMA to I-PEX MHF4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
CSI-SGFB-100-UFFRCOAX CBL U.FL TO SMA |
634 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
CSH-SGFB-100-UFFRCOAX CBL U.FL TO SMA |
995 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
CSJ-SGFB-200-MHF4COAX CBL SMA TO MHF4 |
1,462 |
|
Datasheet | - | Bulk | Active | SMA to I-PEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
2015698-3COAX CBL U.FL TO U.FL |
1,222 |
|
Datasheet | UMCC | Bag | Active | U.FL (UMCC) to U.FL (UMCC) | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
CSH-SGFB-200-UFFRCOAX CBL U.FL TO SMA |
919 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | - | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
CSI-SGFB-200-UFFRCOAX CBL U.FL TO SMA |
711 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
CSI-RGFI-100-UFFRCOAX CBL U.FL TO RP-SMA |
2,102 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
A-1PA-113-045B2COAX CBL U.FL AMC-U.FL AMC |
919 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.772" (45.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
CSJ-RGFB-200-MHF4COAX CBL RP-SMA TO MHF4 |
882 |
|
Datasheet | - | Bulk | Active | RP-SMA to I-PEX MHF4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
CA-DKCA1-152L5-APAJCOAX CBL SMA TO SMA |
680 |
|
Datasheet | CA | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 5.984" (152.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | - | - | - | - |
|
CAB.721COAX CBL U.FL TO SMA |
14,077 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | - |
|
CAB.719COAX CBL U.FL TO SMA |
7,287 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | - |
|
CAB.622COAX CBL U.FL MHF1 TO RP-SMA |
5,697 |
|
Datasheet | - | Bag | Active | U.FL (UMCC), I-PEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | 105°C | - | - |
