Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0198-M2.0COAX CBL BNC TO BNC |
264 |
|
Datasheet | - | Bag | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-174 | 50 Ohms | 50 Ohms | 50 Ohms | 1 GHz | Black | Shielded | -40°C ~ 80°C | - | - |
|
115101-19-12.00COAX CBL BNC TO BNC |
1,192 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
0897616811COAX CBL SMA TO MMCX |
598 |
|
Datasheet | 89761 | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Copper | Shielded | - | - | - |
|
CO-174SMAX200-007COAX CBL SMA TO SMA |
116 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 84.0" (2.1m) 7.0' | RG-174 | 50 Ohms | - | - | 6 GHz | Black | Shielded | -40°C ~ 85°C | - | - |
|
CCSMA-MM-086-10COAX CBL SMA TO SMA |
177 |
|
Datasheet | CCSMA | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 10.000" (254.00mm) | Hand Formable .086 | - | - | 50 Ohms | 12 GHz | Silver | Shielded | -40°C ~ 85°C | - | - |
|
415-0029-018COAX CBL SMA TO SMA |
343 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|

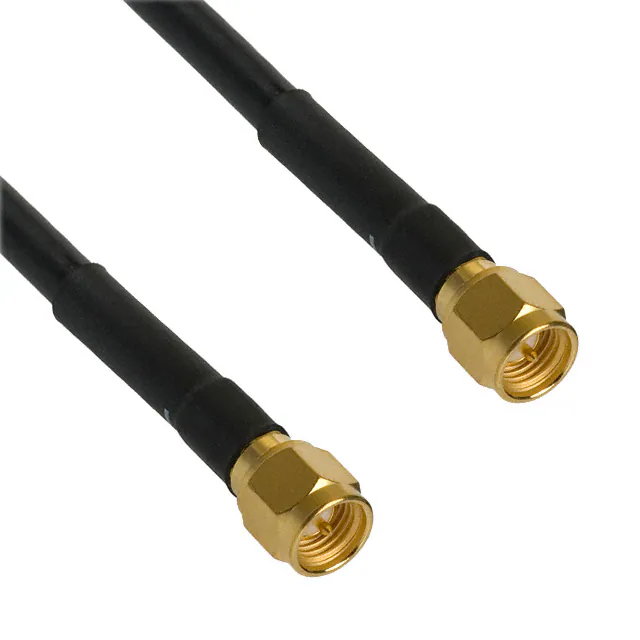

415-0038-024COAX CBL SMA TO SMA |
2,093 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | Shielded | - | - | - |
|
C58LL-RPSM-2438-NMCOAX CBL RP-SMA TO N-TYPE |
169 |
|
Datasheet | - | Bulk | Active | RP-SMA to N-Type | RP-SMA Plug | Female | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 96.0" (2.4m) 8.0' | RG-58 | 50 Ohms | - | - | - | Black | Shielded | - | - | - |
|
415-0031-012COAX CBL SMA TO SMA |
388 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
1064533-1COAX CBL SSMT TO SSMT |
108 |
|
Datasheet | - | Bag | Active | SSMT to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|
|
415-0031-006COAX CBL SMA TO SMA |
137 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
141-4SM+COAX CBL SMA TO SMA |
305 |
|
Datasheet | 141 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|
|
141-8SM+COAX CBL SMA TO SMA |
166 |
|
Datasheet | 141 | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 8.000" (203.20mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Blue | - | -55°C ~ 105°C | - | - |
|

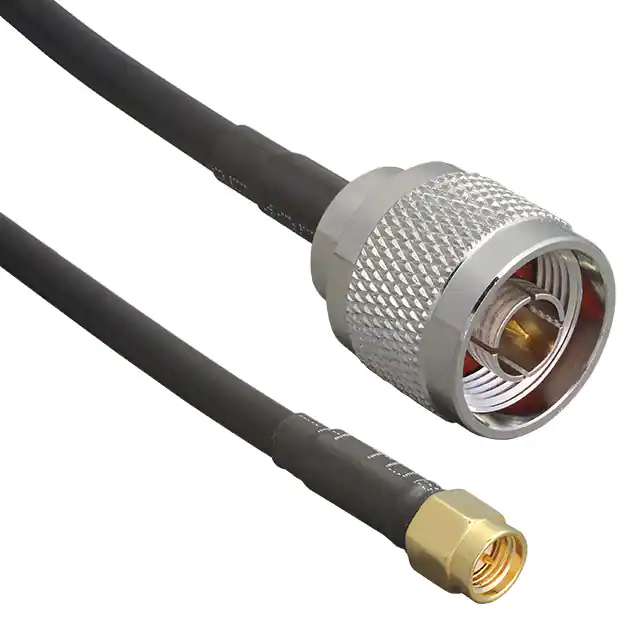

CSD-SMAM-610-NMCOAX CBL SMA TO N-TYPE |
278 |
|
Datasheet | - | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-58 | 50 Ohms | - | 50 Ohms | 5.8 GHz | Black | - | -40°C ~ 85°C | - | - |
|
CCSMA18-MM-141-4COAX CBL SMA TO SMA |
168 |
|
Datasheet | CCSMA18 | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 4.000" (101.60mm) | Hand Formable .141 | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -40°C ~ 85°C | - | - |
|
|
415-0031-018COAX CBL SMA TO SMA |
406 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
58-036-1MCOAX CBL BNC TO BNC |
475 |
|
Datasheet | - | Bulk | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | 80°C | - | - |
|
415-0029-M2.0COAX CBL SMA TO SMA |
263 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 78.7" (2.0m) 6.6' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
CABLE 394 RF-200-A-1COAX CBL MHF1 TO SMA |
326 |
|
Datasheet | Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack, Right Angle | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Brown | IP Rated Unmated | -40°C ~ 85°C | - | - |
|

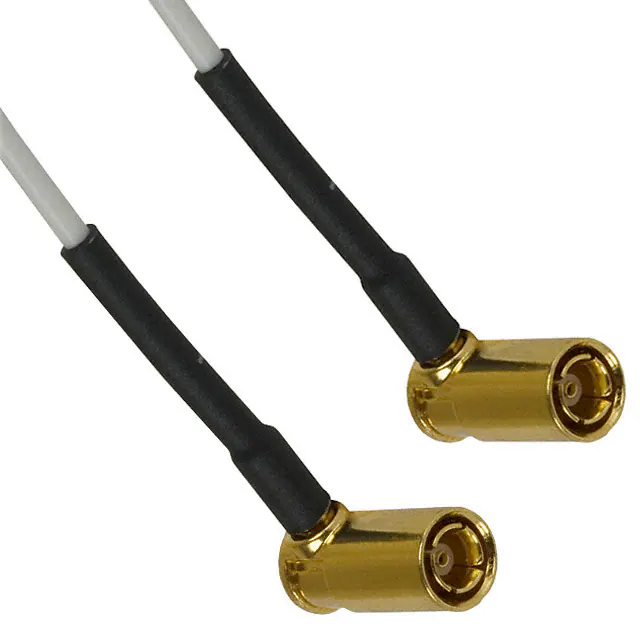

415-0001-006COAX CBL SMB TO SMB |
155 |
|
Datasheet | - | Bulk | Active | SMB to SMB | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | SMB Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 4 GHz | Gray | Shielded | - | - | - |
