Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

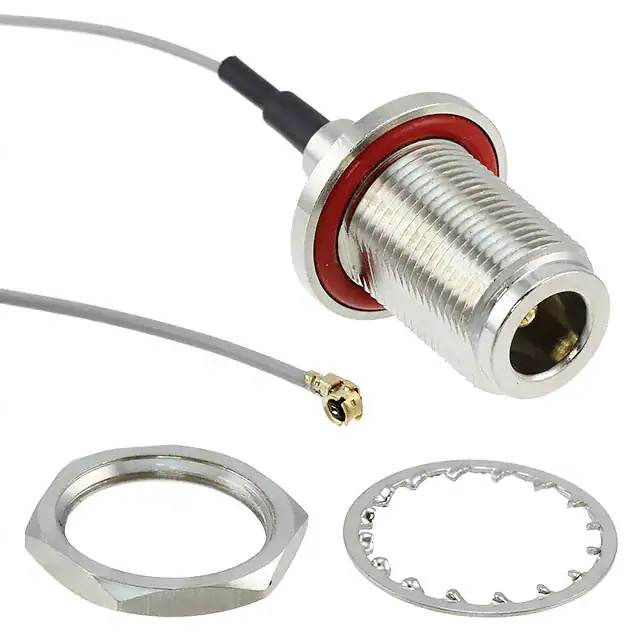

CBA-NF-UFLCOAX CBL U.FL TO N-TYPE |
170 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to N-Type | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | N-Type Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | - |
|
CSI-SGFI-200-UFFRCOAX CBL U.FL TO SMA |
204 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 3 GHz | Gray | - | - | - | - |
|
CONREVSMA005-C08.5COAX CBL RP-SMA TO CABLE |
792 |
|
Datasheet | - | Bag | Active | RP-SMA to Cable | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 8.500" (215.90mm) | RG-174 | 50 Ohms | - | - | - | Black | Shielded | - | - | - |
|
CSE-SGAM-305-SGAMCOAX CBL SMA TO SMA |
275 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 8 GHz | Copper | - | 105°C | - | - |
|
415-0091-250COAX CBL U.FL TO SMA |
370 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC) to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
CCMX-MM-RG178-6COAX CBL MMCX TO MMCX |
3,046 |
|
Datasheet | CCMX | Bag | Active | MMCX to MMCX | MMCX Plug | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
080-0001COAX CBL U.FL TO RP-SMA |
1,443 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 4.134" (105.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | - | -40°C ~ 85°C | - | - |
|
0897613412COAX CBL U.FL TO SMA |
741 |
|
Datasheet | 89761 | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | - | Gray | - | - | - | - |
|

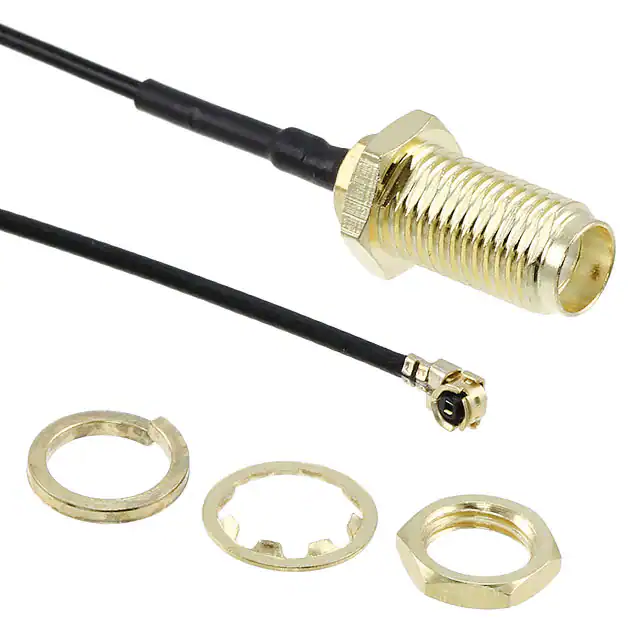

CBA-UFLSMA15COAX CBL U.FL TO SMA |
293 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | - | 50 Ohms | - | 50 Ohms | 6 GHz | Gray | - | - | - | - |
|
CAB.S01COAX CBL SMA TO MHF4 |
1,746 |
|
Datasheet | - | Bag | Active | SMA to I-PEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
ASMG010X113S17COAX CBL U.FL TO SMA |
449 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Protective Cap, Shielded | - | - | - |
|
CCMX2-MM-RG178-12COAX CBL MMCX TO MMCX |
208 |
|
Datasheet | CCMX2 | Bag | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | - | 50 Ohms | 6 GHz | Copper | Shielded | -40°C ~ 85°C | - | - |
|
CSE-SGAM-305-SGFBCOAX CBL SMA TO SMA |
481 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-316 | 50 Ohms | - | 50 Ohms | 12.4 GHz | Copper | - | 105°C | - | - |
|
CABLE 161 RF-100-A-1COAX CBL MHF1 TO SMA |
622 |
|
Datasheet | Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | IP Rated Unmated | -40°C ~ 90°C | - | - |
|
CAB.S02COAX CBL SMA TO MHF4 |
2,590 |
|
Datasheet | - | Bag | Active | SMA to I-PEX MHF4 | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | - | - | - |
|
CABLE 138 RF-0100-A-2COAX CBL MHF1 TO RP-SMA |
2,323 |
|
Datasheet | Nautilus | Bag | Active | I-PEX MHF1 to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.37mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 3 GHz | Black | IP Rated Unmated | -40°C ~ 90°C | - | - |
|
CABLE 161 RF-150-A-1COAX CBL MHF1 TO SMA |
2,245 |
|
Datasheet | Nautilus | Bag | Active | I-PEX MHF1 to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | 3 GHz | Brown | IP Rated Unmated | -40°C ~ 90°C | - | - |
|
CBA-SMAM-SMAMRP18COAX CBL RP-SMA TO SMA |
305 |
|
Datasheet | - | Bulk | Active | RP-SMA to SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 70.9" (1.8m) 5.9' | RG-58 | 50 Ohms | - | 50 Ohms | 2.7 GHz | Black | Shielded | - | - | - |
|
1064538-1COAX CBL SSMT TO CABLE |
443 |
|
Datasheet | - | Bag | Active | SSMT to Cable | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874" (200.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|
2032440-1COAX CBL U.FL TO SMA |
6,865 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
