AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSC-S30-15UAC/DC CONVERTER 15V 30W |
210 |
|
Datasheet | FSC-S30 (30W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 60°C | DC Input Capable, Universal Input | Chassis Mount | 4.57" L x 2.31" W x 1.10" H (116.0mm x 58.7mm x 28.0mm) |
|

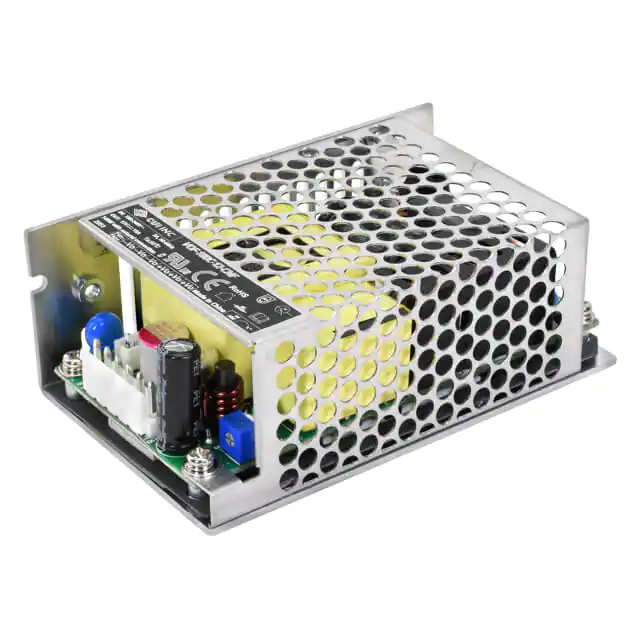

VOF-180C-15-CNFAC/DC CONVERTER 15V 180W |
4,468 |
|
Datasheet | VOF-180C-CNF (180W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 12 A | - | - | - | - | - | 180W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) |
|
VSK-S20-3R3U-TAC/DC CONVERTER 3.3V 20W |
2,355 |
|
Datasheet | VSK-S20-T (20W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 4.1 A | - | - | - | - | - | 20W | ITE (Commercial) | 3 kV | -40°C ~ 70°C | Universal Input | Chassis Mount | 3.78" L x 2.17" W x 1.26" H (96.1mm x 54.0mm x 32.0mm) |
|

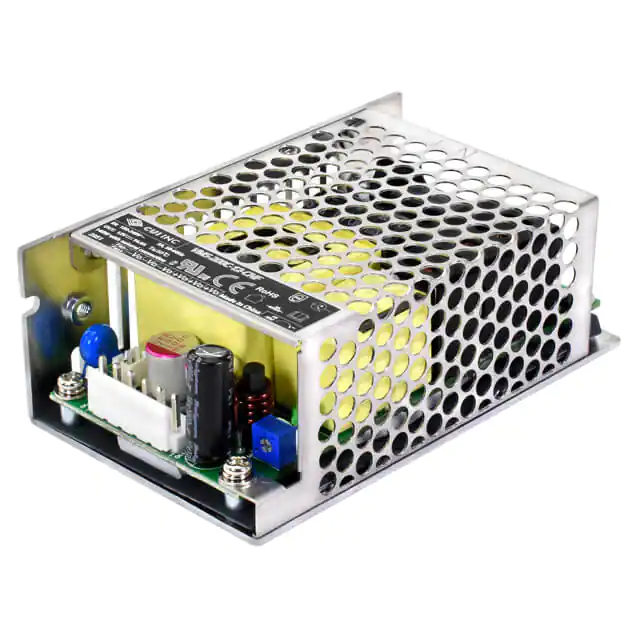

VMS-200C-36-CNFAC/DC CONVERTER 36V 200W |
4,250 |
|
Datasheet | VMS-200C-CNF (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 5.56 A | - | - | - | - | - | 200W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) |
|
|
VMS-200C-24-CNFAC/DC CONVERTER 24V 200W |
1,120 |
|
Datasheet | VMS-200C-CNF (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 200W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) |
|

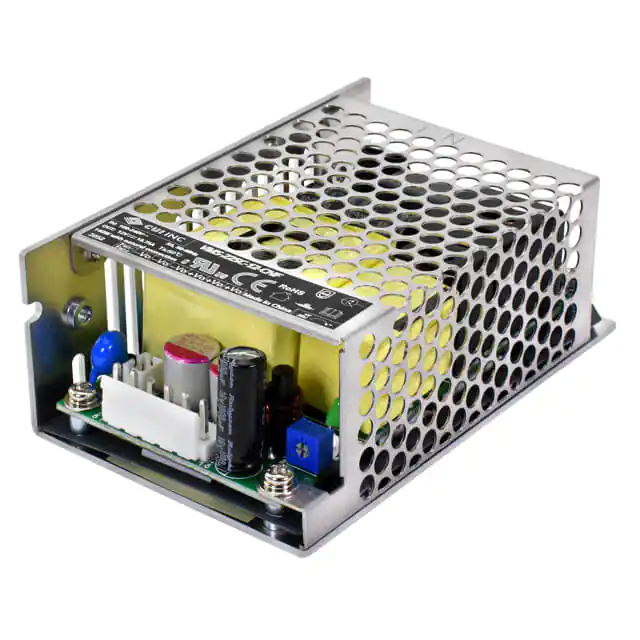

VMS-225C-15-CNFAC/DC CONVERTER 15V 225W |
2,848 |
|
Datasheet | VMS-225C-CNF (225W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 15 A | - | - | - | - | - | 225W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.07" L x 2.44" W x 1.46" H (103.4mm x 62.0mm x 37.0mm) |
|
VGS-250B-48AC/DC CONVERTER 48V 250W |
4,369 |
|
Datasheet | VGS-250B (250W) | Bulk | Obsolete | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 48V | - | - | - | - | - | 5.2 A | - | - | - | - | - | 250W | ITE (Commercial) | 1.5 kV | -20°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
|
VOF-180-48AC/DC CONVERTER 48V 120W |
1,909 |
|
Datasheet | VOF-180 (180W) | Box | Obsolete | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.75" H (101.6mm x 50.8mm x 19.1mm) |
|

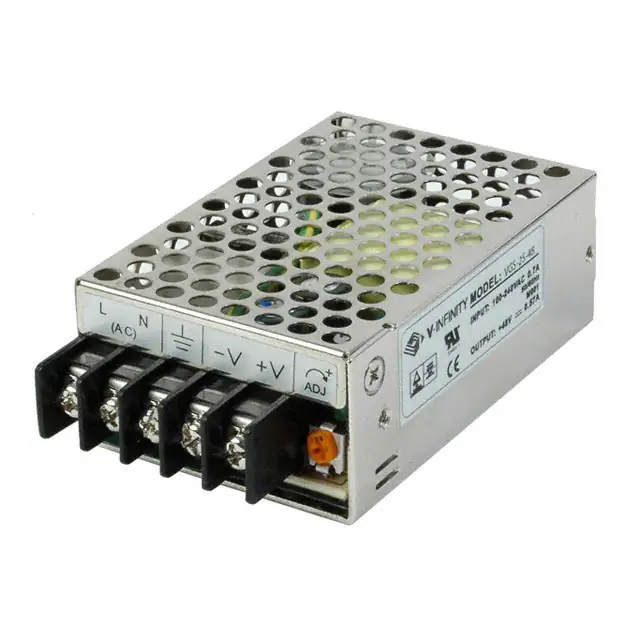

VGS-25-24AC/DC CONVERTER 24V 25W |
3,057 |
|
Datasheet | VGS-25 (27W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.09" L x 2.01" W x 1.11" H (78.5mm x 51.0mm x 28.3mm) |
|
|
VGS-25-3.3AC/DC CONVERTER 3.3V 25W |
3,971 |
|
Datasheet | VGS-25 (27W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 25W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.09" L x 2.01" W x 1.11" H (78.5mm x 51.0mm x 28.3mm) |
