AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSUU-120C-12AC/DC CONVERTER 12V 120W |
3,470 |
|
Datasheet | VSUU-120C (120W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC | Chassis Mount | 5.00" L x 3.21" W x 1.54" H (127.0mm x 81.5mm x 39.1mm) |
|
VSBU-120C-T512AAC/DC CONVERTER 5V +/-12V 157W |
2,072 |
|
Datasheet | VSBU-120C-T (120W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 15 A | 6 A | 800 mA | - | - | - | 157W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
|
VSBU-120C-15AC/DC CONVERTER 15V 120W |
4,102 |
|
Datasheet | VSBU-120C (120W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
|
VSUU-150C-24AC/DC CONVERTER 24V 150W |
4,580 |
|
Datasheet | VSUU-150C (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC | Chassis Mount | 5.00" L x 3.21" W x 1.62" H (127.0mm x 81.5mm x 41.1mm) |
|

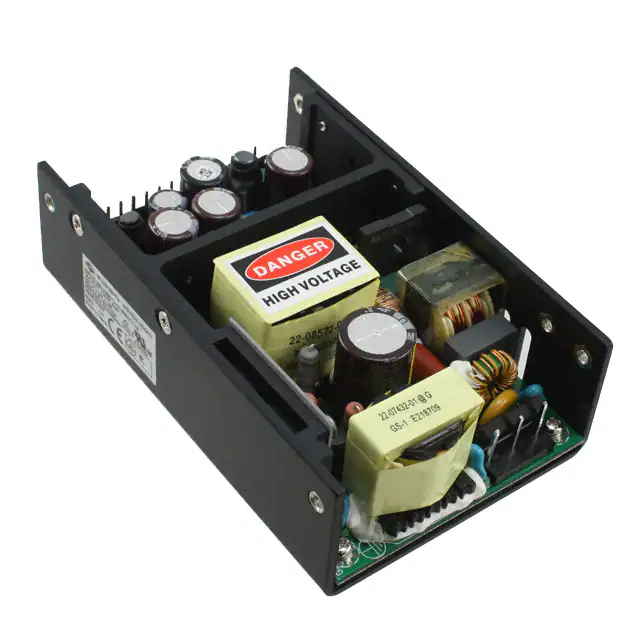

VSUU-120-D524AAC/DC CONVERTER 5V 24V 120W |
1,475 |
|
Datasheet | VSUU-120-D (120W) | Box | Not For New Designs | Open Frame | 2 | 90 ~ 260 VAC, 130 ~ 370 VDC | 5V | 24V | - | - | - | - | 15 A | 3.5 A | - | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
VSBU-120-T512AAC/DC CONVERTER 5V +/-12V 120W |
144 |
|
Datasheet | VSBU-120-T (120W) | Box | Not For New Designs | Open Frame | 3 | 90 ~ 260 VAC | 5V | 12V | -12V | - | - | - | 15 A | 6 A | 0.8 A | - | - | - | 120W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.28" H (127.0mm x 76.2mm x 32.5mm) |
|
VSBU-120C-D524AAC/DC CONVERTER 5V 24V 159W |
3,059 |
|
Datasheet | VSBU-120C-D (120W) | Box | Active | Open Frame | 2 | 90 ~ 264 VAC | 5V | 24V | - | - | - | - | 15 A | 3.5 A | - | - | - | - | 159W | ITE (Commercial) | 4.242 kV | 0°C ~ 70°C (With Derating) | PFC | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
|
VMS-300A-36-CNFAC/DC CONVERTER 36V 200W |
4,510 |
|
Datasheet | VMS-300A-CNF (300W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 5.56 A | - | - | - | - | - | 200W (300W Forced Air) | Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.46" W x 1.59" H (136.0mm x 88.0mm x 40.4mm) |
|

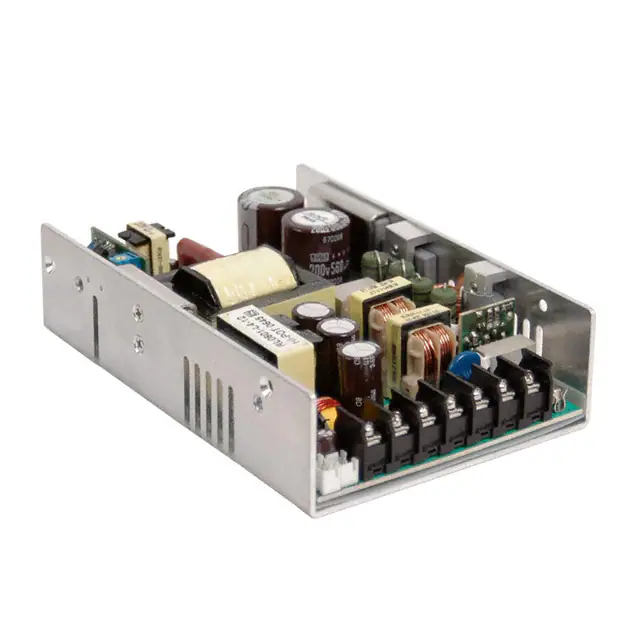

VF-S320-24AAC/DC CONVERTER 24V 180W |
4,953 |
|
Datasheet | VF-S320 (320W) | Tray | Active | Open Frame | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 24V | - | - | - | - | - | 7.5 A | - | - | - | - | - | 180W (320W Forced Air) | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
|

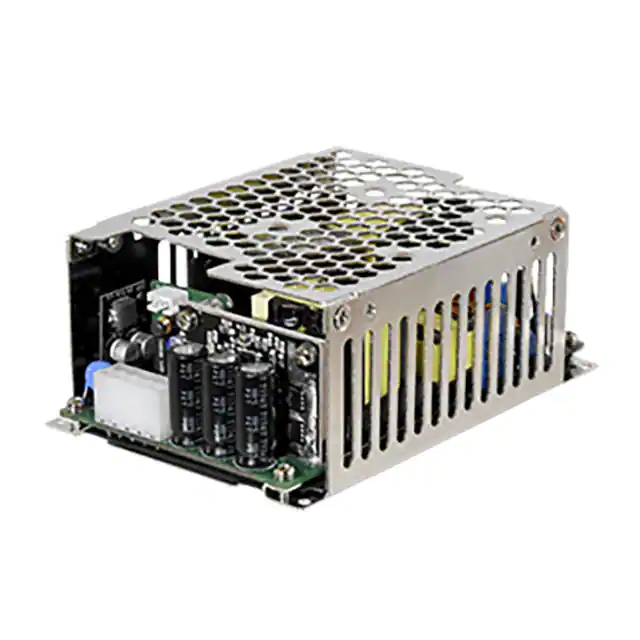

VMS-450B-24-CNFAC/DC CONVERTER 24V 451W |
4,358 |
|
Datasheet | VMS-450B-CNF (450W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 24V | - | - | - | - | - | 18.8 A | - | - | - | - | - | 451W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.41" W x 1.97" H (127.0mm x 86.6mm x 50.0mm) |
