AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

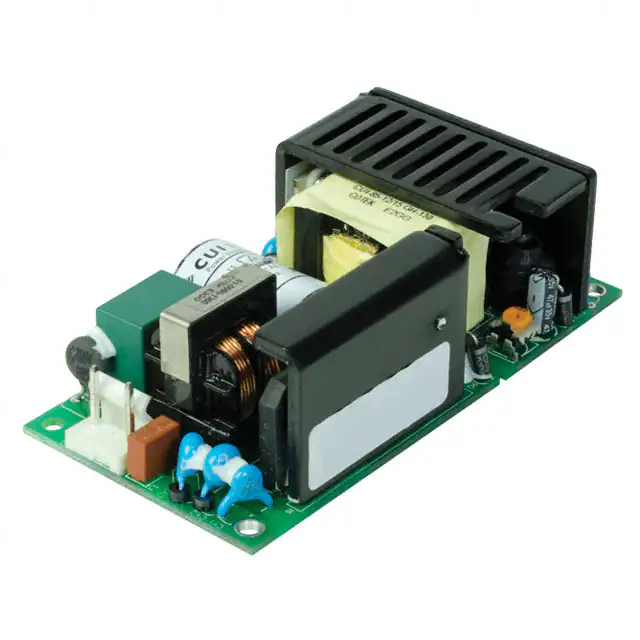

VOF-85-15AC/DC CONVERTER 15V 85W |
1,685 |
|
Datasheet | VOF-85 (85W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 15V | - | - | - | - | - | 5.7 A | - | - | - | - | - | 85W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
|
VGS-200E-36AC-DC, 200 W, 36 VDC, SINGLE OUT |
3,361 |
|
Datasheet | VGS-200E (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 36V | - | - | - | - | - | 5.6 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) |
|
|
VGS-200E-24AC-DC, 200 W, 24 VDC, SINGLE OUT |
1,945 |
|
Datasheet | VGS-200E (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) |
|

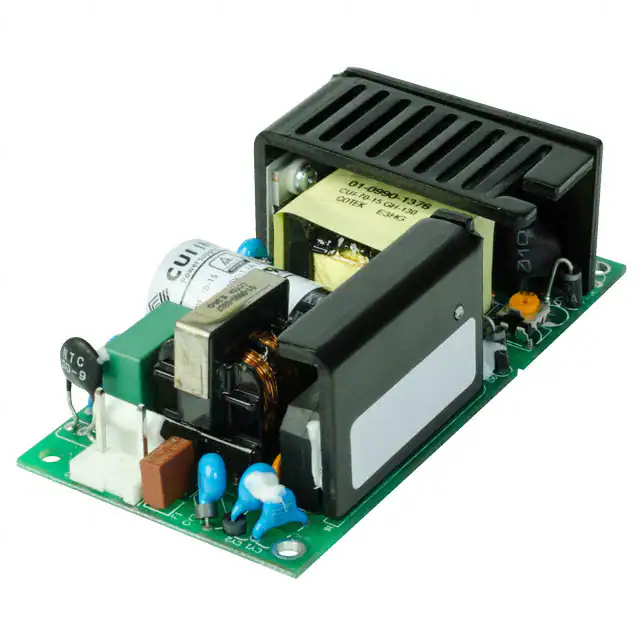

VOF-70-5AC/DC CONVERTER 5V 43W |
3,511 |
|
Datasheet | VOF-70 (70W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 5V | - | - | - | - | - | 8.61 A | - | - | - | - | - | 43W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
|
|
VGS-200E-48AC-DC, 200 W, 48 VDC, SINGLE OUT |
2,002 |
|
Datasheet | VGS-200E (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) |
|
|
VGS-350D-12AC-DC, 350 W, 12 VDC, SINGLE OUT |
2,029 |
|
Datasheet | VGS-350D (350W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 29.2 A | - | - | - | - | - | 350W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 8.66" L x 2.44" W x 1.08" H (220.0mm x 62.0mm x 27.5mm) |
|

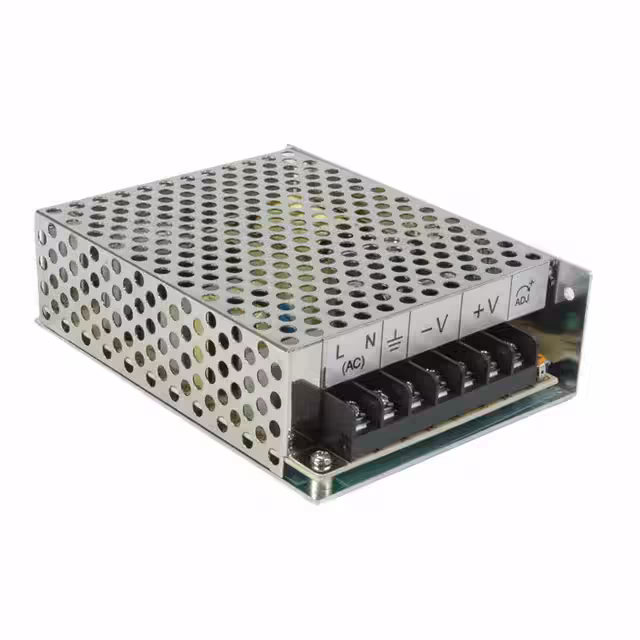

VGS-75-12AC/DC CONVERTER 12V 75W |
3,504 |
|
Datasheet | VGS-75 (76.8W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 12V | - | - | - | - | - | 6 A | - | - | - | - | - | 75W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) |
|

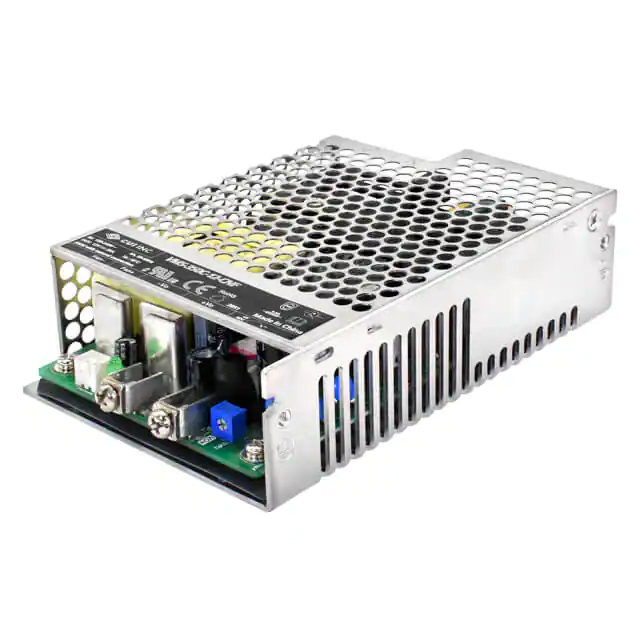

VMS-350C-36-CNFAC/DC CONVERTER 36V 350W |
1,337 |
|
Datasheet | VMS-350C-CNF (350W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 36V | - | - | - | - | - | 9.73 A | - | - | - | - | - | 350W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.38" H (130.0mm x 86.0mm x 35.0mm) |
|

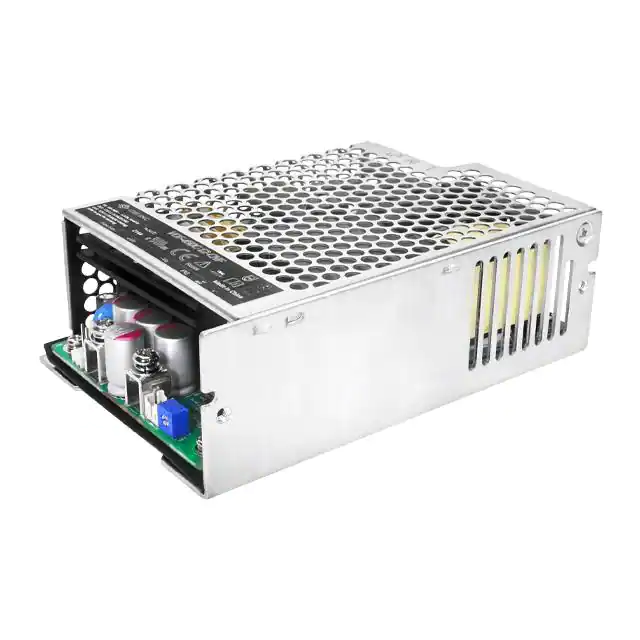

VOF-450C-24-CNFAC/DC CONVERTER 24V 450W |
4,726 |
|
Datasheet | VOF-450C-CNF (450W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 18.75 A | - | - | - | - | - | 450W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) |
|

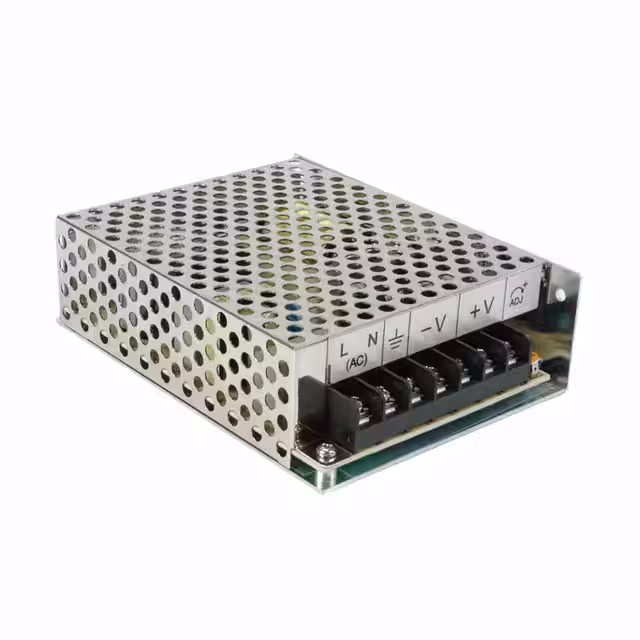

VGS-100-15AC/DC CONVERTER 15V 100W |
4,535 |
|
Datasheet | VGS-100 (110W) | Bulk | Obsolete | Enclosed | 1 | 88 ~ 264 VAC | 15V | - | - | - | - | - | 7 A | - | - | - | - | - | 100W | ITE (Commercial) | 4.242 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.84" W x 1.48" H (129.5mm x 97.5mm x 37.5mm) |
