AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VMS-450B-48-CFSAC/DC CONVERTER 48V 451W |
2,574 |
|
Datasheet | VMS-450B-CFS (450W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 48V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 451W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) |
|
|
VMS-450B-12-CFSAC/DC CONVERTER 12V 450W |
1,416 |
|
Datasheet | VMS-450B-CFS (450W) | Box | Active | Enclosed | 1 | 100 ~ 240 VAC | 12V | - | - | - | - | - | 37.5 A | - | - | - | - | - | 450W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.83" L x 3.15" W x 1.60" H (148.1mm x 80.0mm x 40.6mm) |
|
VMS-550-12AC/DC CONVERTER 12V 120W |
4,618 |
|
Datasheet | VMS-550 (550W) | Tray | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W (500W Forced Air) | Medical | 4.2 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) |
|

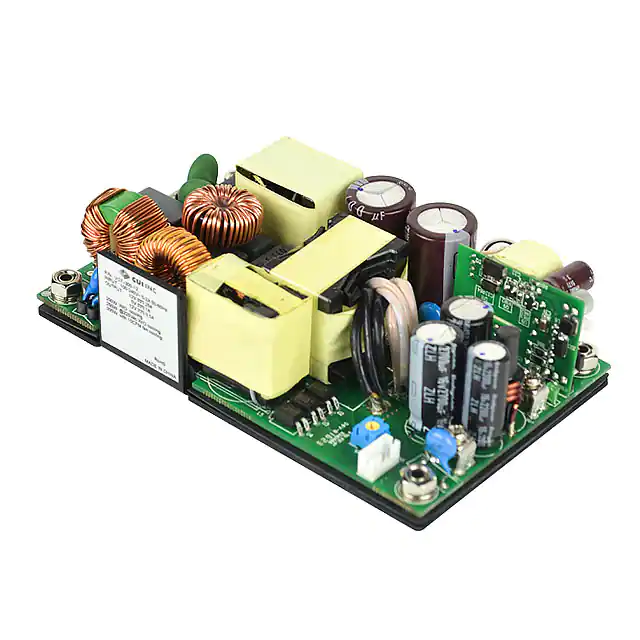

VOF-300-36AC/DC CONVERTER 36V 200W |
1,481 |
|
Datasheet | VOF-300 (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 5.56 A | - | - | - | - | - | 200W (300W Forced Air) | ITE (Commercial) | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.1mm) |
-Series_OpenFrame.jpg)
|
VF-S250-48AAC/DC CONVERTER 48V 250W |
2,589 |
|
Datasheet | VF-S250 (250W) | Tray | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 5.21 A | - | - | - | - | - | 250W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 5.00" L x 3.20" W x 1.50" H (127.0mm x 81.3mm x 38.1mm) |
|

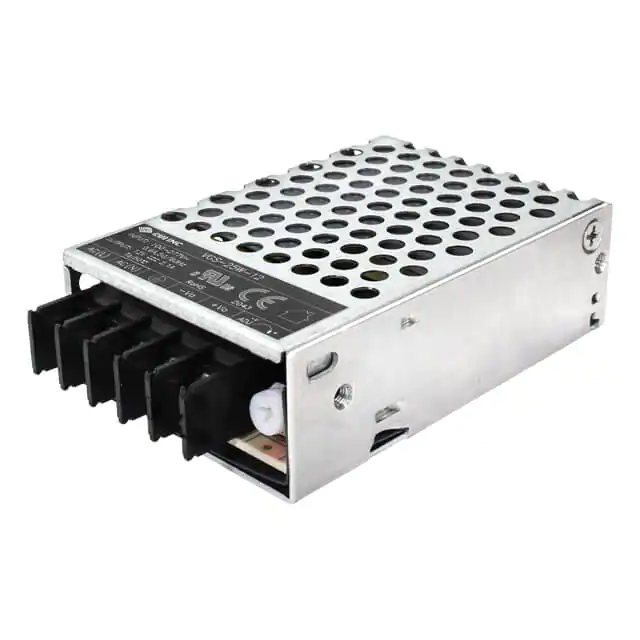

VGS-25W-12AC/DC CONVERTER 12V 25W |
159 |
|
Datasheet | VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|
|
VGS-25W-5AC/DC CONVERTER 5V 25W |
101 |
|
Datasheet | VGS-25W (25W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 3.15" L x 2.17" W x 0.98" H (80.0mm x 55.0mm x 25.0mm) |
|

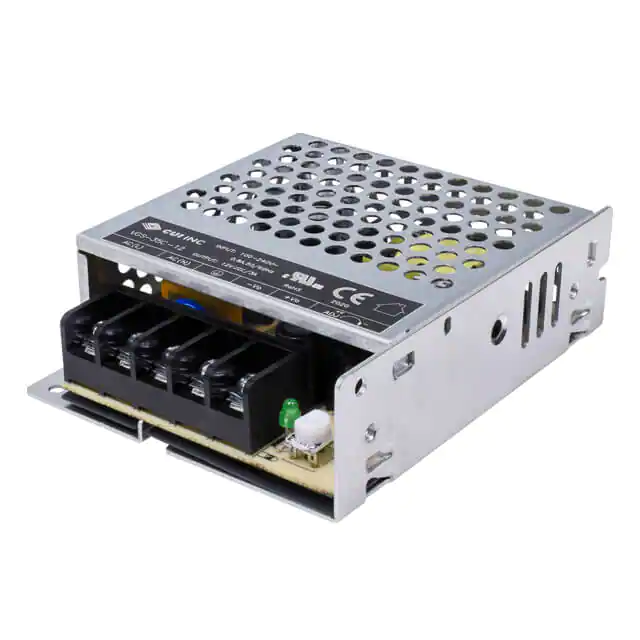

VGS-35C-12AC/DC CONVERTER 12V 36W |
114 |
|
Datasheet | VGS-35C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) |
|
PSK-20D-5-TAC/DC CONVERTER 5V 20W |
1,245 |
|
Datasheet | PSK-20D (20W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 5V | - | - | - | - | - | 4 A | - | - | - | - | - | 20W | Household Appliances, ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 2.99" L x 1.24" W x 1.29" H (76.0mm x 31.5mm x 32.8mm) |
|

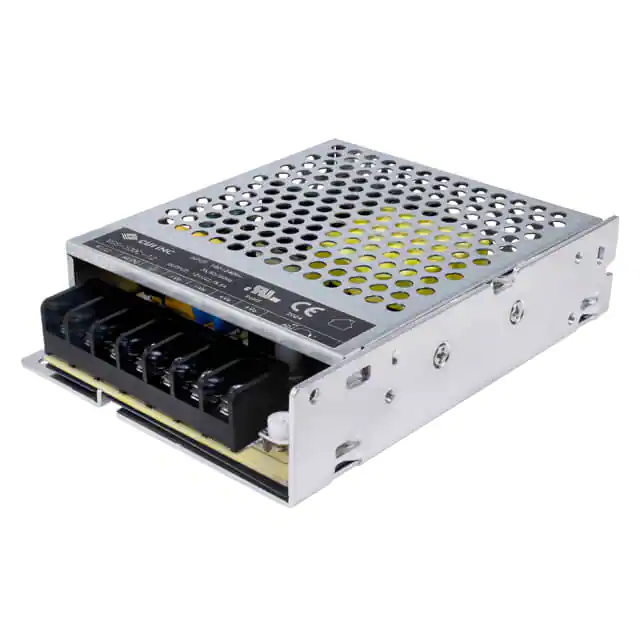

VGS-100C-12AC/DC CONVERTER 12V 102W |
103 |
|
Datasheet | VGS-100C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
