AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

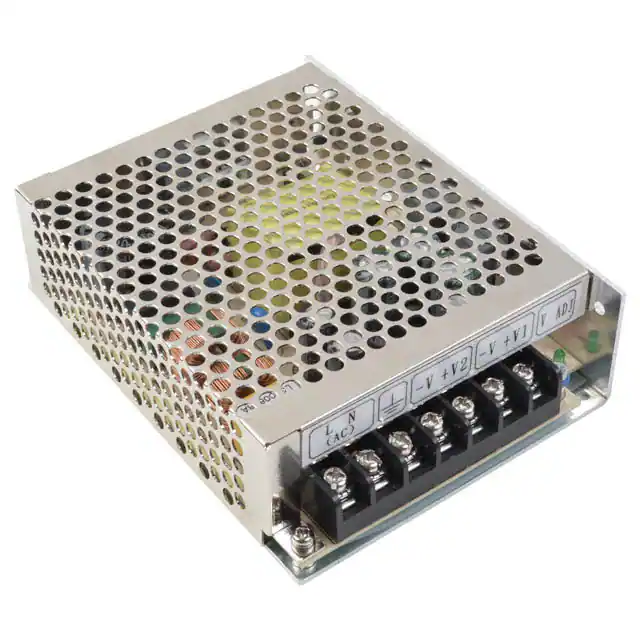

VGD-60-D524AC/DC CONVERTER 5V 24V 60W |
4,395 |
|
Datasheet | VGD-60 (60W) | Bulk | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 5V | 24V | - | - | - | - | 6 A | 2.2 A | - | - | - | - | 60W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|
|
VGD-60-D512AC/DC CONVERTER 5V 12V 60W |
2,922 |
|
Datasheet | VGD-60 (60W) | Bulk | Obsolete | Enclosed | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 6 A | 4 A | - | - | - | - | 60W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.10" L x 3.90" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|

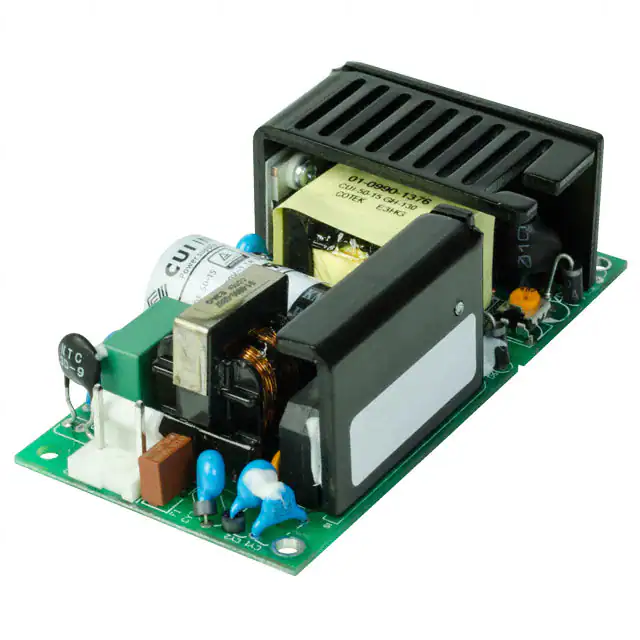

VOF-50-5AC/DC CONVERTER 5V 33W |
3,552 |
|
Datasheet | VOF-50 (50W) | Bulk | Obsolete | Open Frame | 1 | 90 ~ 277 VAC | 5V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 33W | ITE (Commercial) | 3 kV | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.32" H (101.6mm x 50.8mm x 33.6mm) |
|

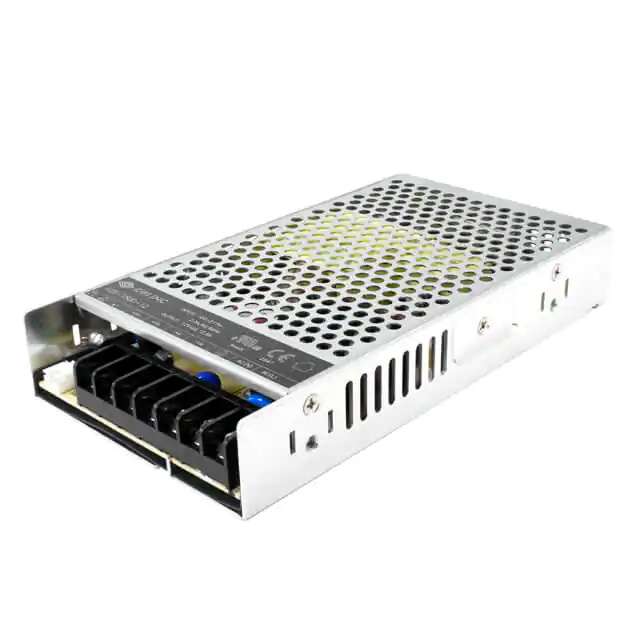

VGS-150D-24-BAC/DC CONVERTER 24V 151W |
168 |
|
Datasheet | VGS-150D | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 151W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|

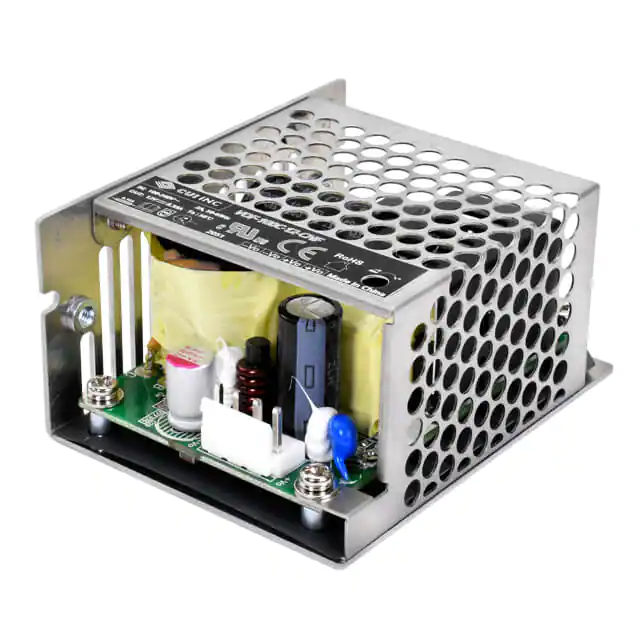

VOF-100C-24-CNFAC/DC CONVERTER 24V 100W |
1,861 |
|
Datasheet | VOF-100C-CNF (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 4.16 A | - | - | - | - | - | 100W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 3.15" L x 2.44" W x 1.57" H (80.0mm x 62.0mm x 40.0mm) |
|

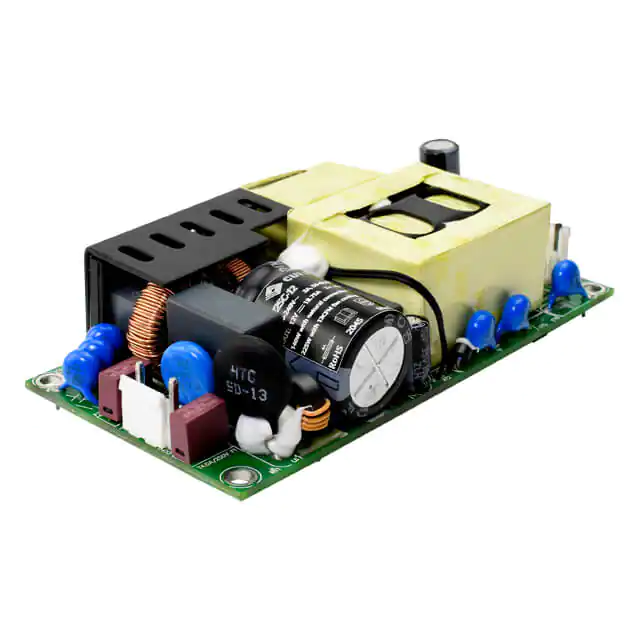

VOF-225C-36AC/DC CONVERTER 36V 225W |
2,326 |
|
Datasheet | VOF-225C (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 225W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
VGS-200E-5AC-DC, 200 W, 5 VDC, SINGLE OUTP |
4,484 |
|
Datasheet | VGS-200E (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) |
|
|
VGS-200E-12AC-DC, 200 W, 12 VDC, SINGLE OUT |
2,306 |
|
Datasheet | VGS-200E (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) |
|

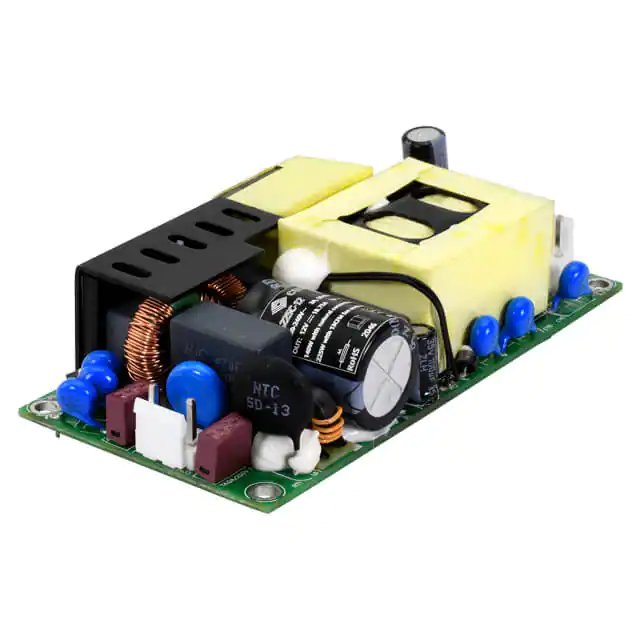

VMS-225C-48AC/DC CONVERTER 48V 226W |
1,458 |
|
Datasheet | VMS-225C (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 226W | Household Appliances, Medical | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
|
|
VOF-225C-15AC/DC CONVERTER 15V 225W |
1,031 |
|
Datasheet | VOF-225C (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 15 A | - | - | - | - | - | 225W | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.00" H (101.6mm x 50.8mm x 25.4mm) |
