Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

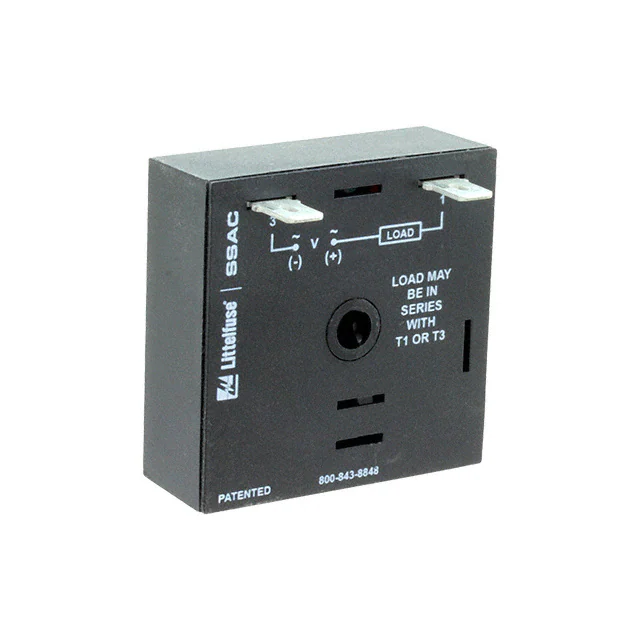

TS14130RELAY TIME DELAY 30SEC CHAS MT |
1,621 |
|
Datasheet | TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 30 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
TS1415RELAY TIME DELAY 5SEC CHAS MT |
4,412 |
|
Datasheet | TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 5 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
KRDI220RELAY TIME DELAY 10SEC 10A 125V |
3,667 |
|
Datasheet | KRDI | Bulk | Active | Chassis Mount | Mechanical Relay | Interval | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 24VAC/DC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
TSD2411SRELAY TIME DELAY 1 SEC CHAS MT |
4,049 |
|
Datasheet | TSD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 1 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
TSDS421RELAY TIME DELAY 100SEC CHAS MT |
4,003 |
|
Datasheet | TSDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|

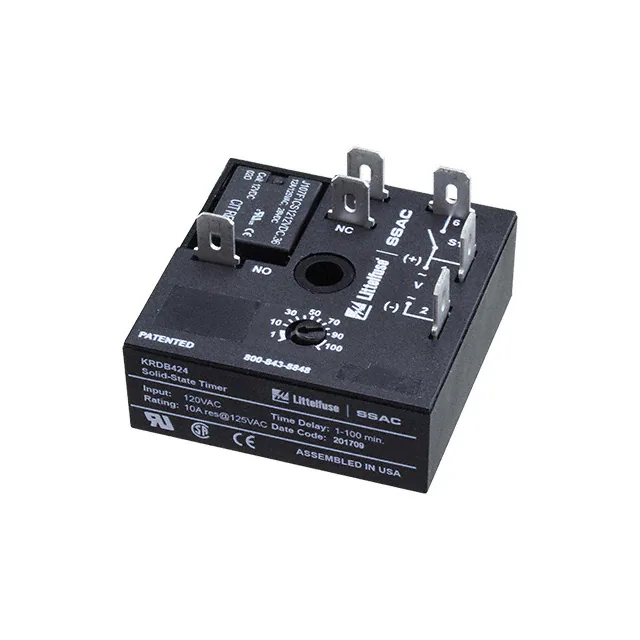

KRDB424RELAY TIME DELAY 100MIN 10A 125V |
2,732 |
|
Datasheet | KRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 1 Min ~ 100 Min | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

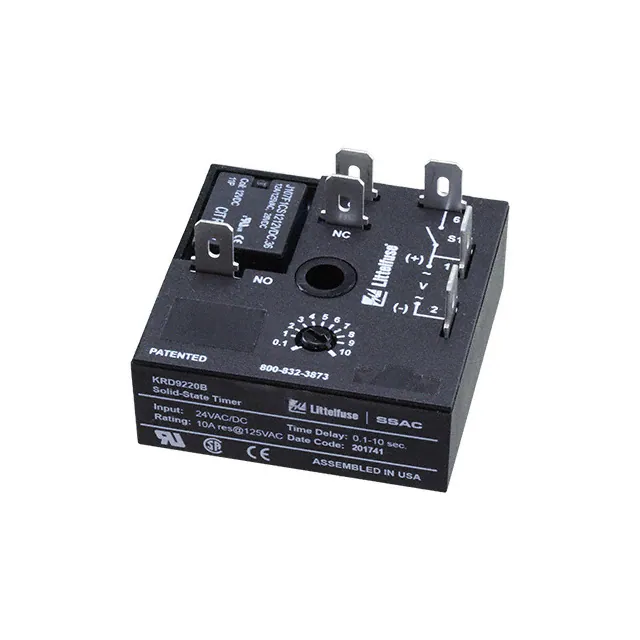

KRD9220BRELAY TIME DELAY 10SEC 10A 125V |
3,098 |
|
Datasheet | KRD9 | Bulk | Active | Chassis Mount | Mechanical Relay | One Shot | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 24VAC/DC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

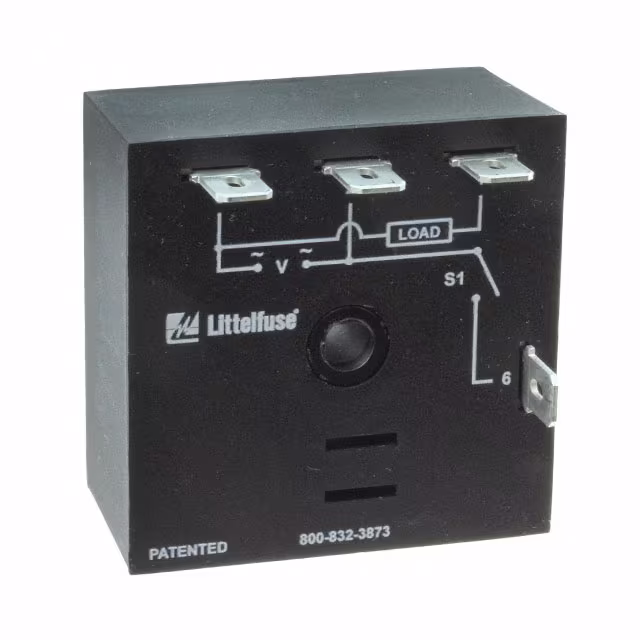

THDS410.25SARELAY TIME DELAY 0.25SEC CHAS MT |
2,373 |
|
Datasheet | THDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | Fixed, 0.25 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
KRPSA22BRELAY TIME DELAY 100SEC 10A 125V |
3,237 |
|
Datasheet | KRPS | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 10A @ 125VAC | 24 ~ 240VAC/DC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|

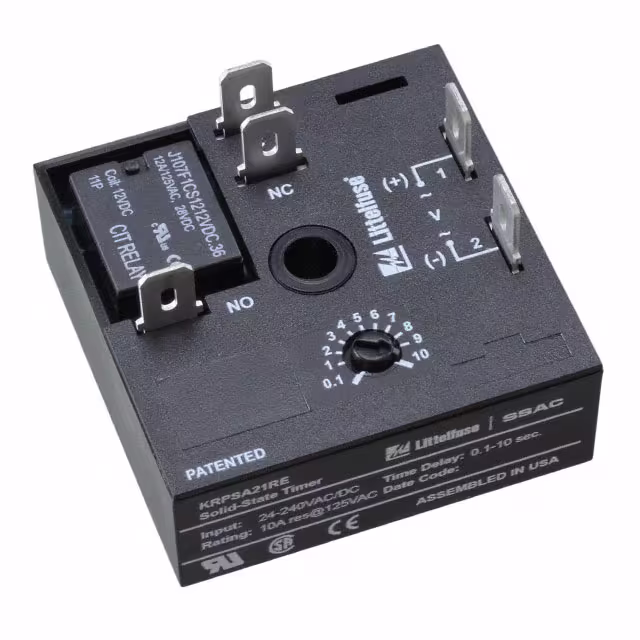

KRPSA21RERELAY TIME DELAY 10SEC 10A 125V |
3,130 |
|
Datasheet | KRPS | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 24 ~ 240VAC/DC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
