Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

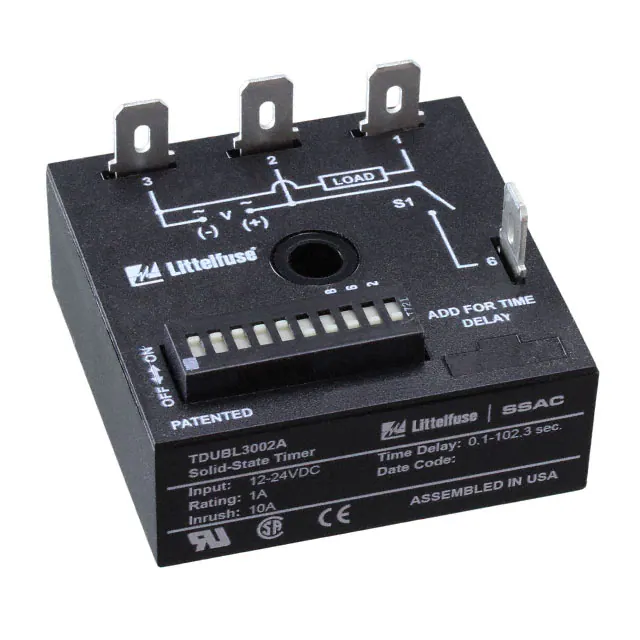

TDUBL3002ARELAY TIME DELAY 102.3SEC CHAS |
1,331 |
|
Datasheet | TDUB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 0.1 Sec ~ 102.3 Sec | - | 12 ~ 24VDC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|

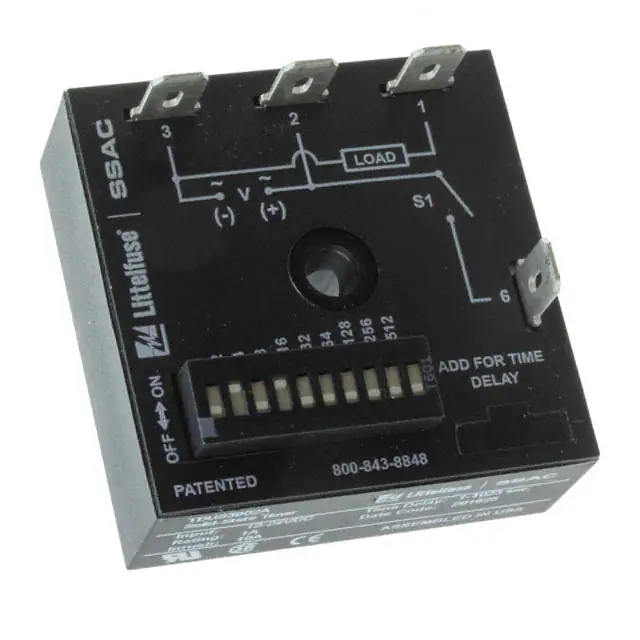

TDUS3002ARELAY TIME DELAY 1023SEC CHAS MT |
3,408 |
|
Datasheet | TDUS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 1 Sec ~ 1023 Sec | - | 12 ~ 24VDC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|

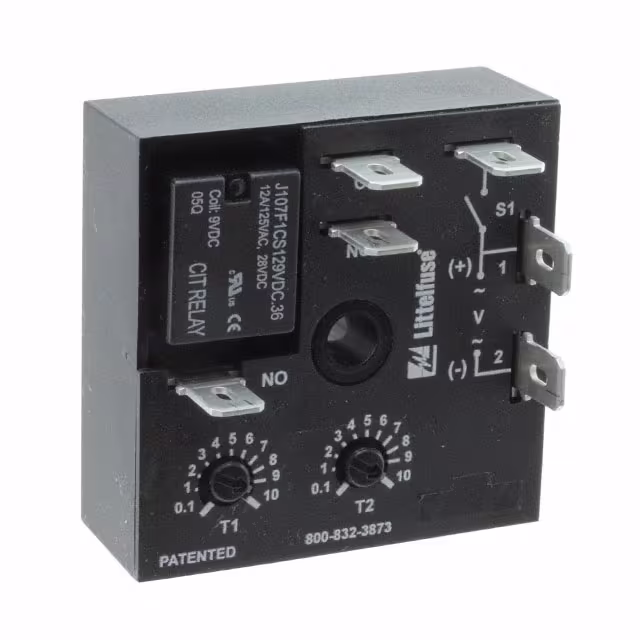

KRPDD2121MBRELAY TIME DELAY 10SEC 10A 125V |
1,393 |
|
Datasheet | KRPD | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay, On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 125VAC | 12 ~ 48VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|

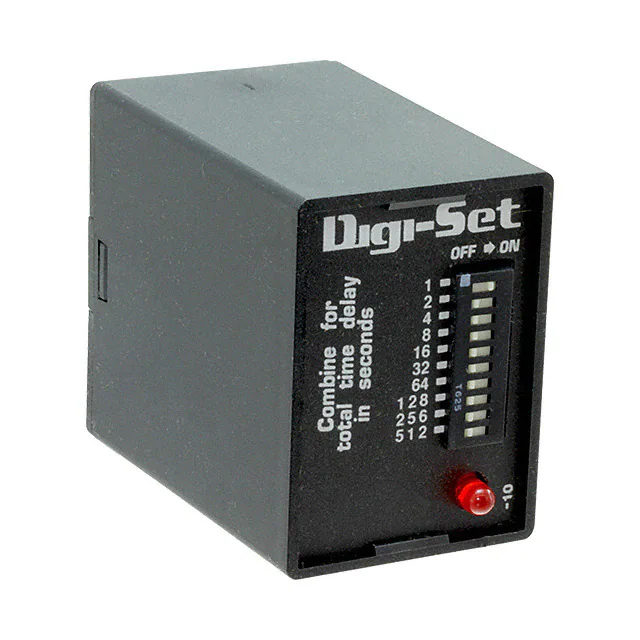

TDM120ALRELAY TIME DEL 1023SEC 10A 120V |
4,009 |
|
Datasheet | TDM | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|

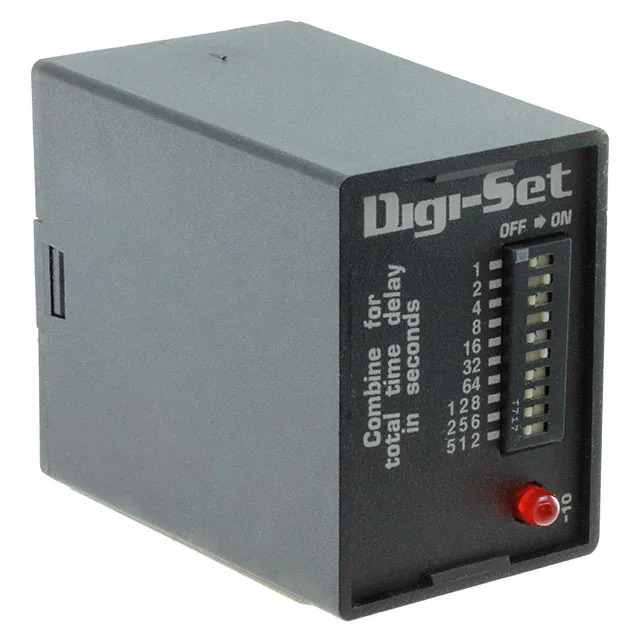

TDS120ALRELAY TIME DEL 1023SEC 10A 120V |
4,818 |
|
Datasheet | TDS | Bulk | Active | Socketable | Mechanical Relay | One Shot | SPDT (1 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|

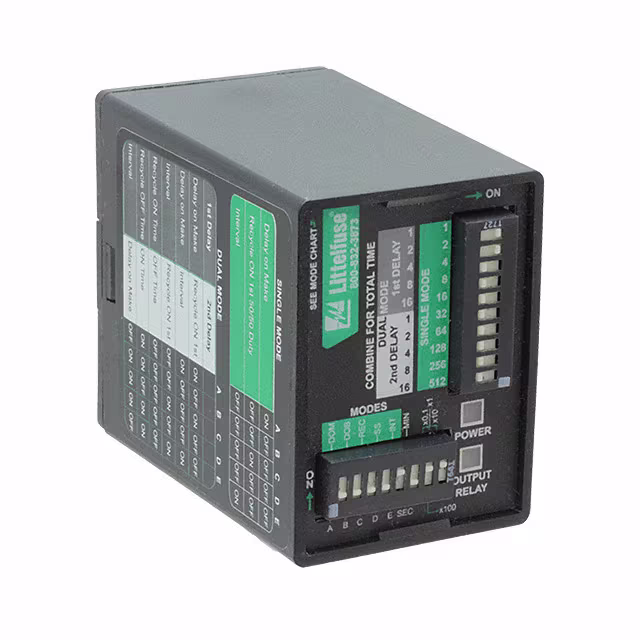

TRDU120A2RELAY TIME DELAY 1705HR 10A 120V |
1,999 |
|
Datasheet | TRDU | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 1705 Hrs | 10A @ 120/240VAC | 120VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|

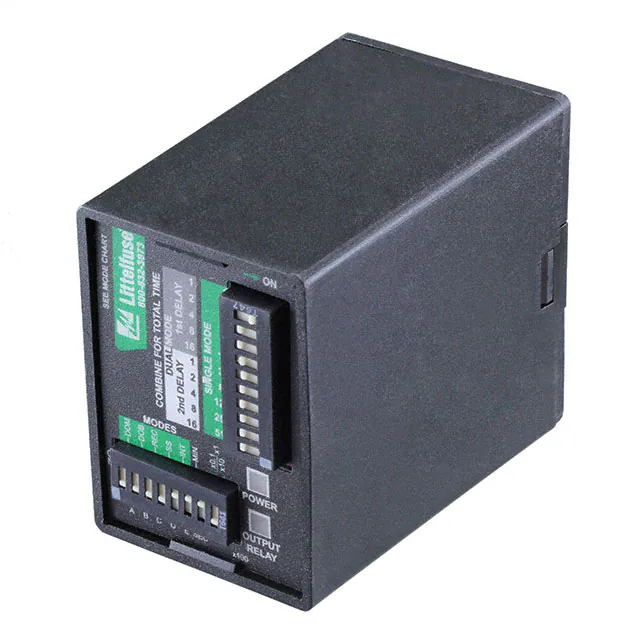

TRDU120A3RELAY TIME DELAY 1705HR 10A 120V |
1,419 |
|
Datasheet | TRDU | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 1705 Hrs | 10A @ 120/240VAC | 120VAC | Plug In, 11 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
.jpg)
|
TDBL120ALDRELAY TIME DEL 102.3SEC 10A 120V |
3,762 |
|
Datasheet | TDBL | Bulk | Active | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 11 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
|
TDS120ALDRELAY TIME DEL 1023SEC 10A 120V |
4,159 |
|
Datasheet | TDS | Bulk | Active | Socketable | Mechanical Relay | One Shot | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 120VAC | Plug In, 11 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|

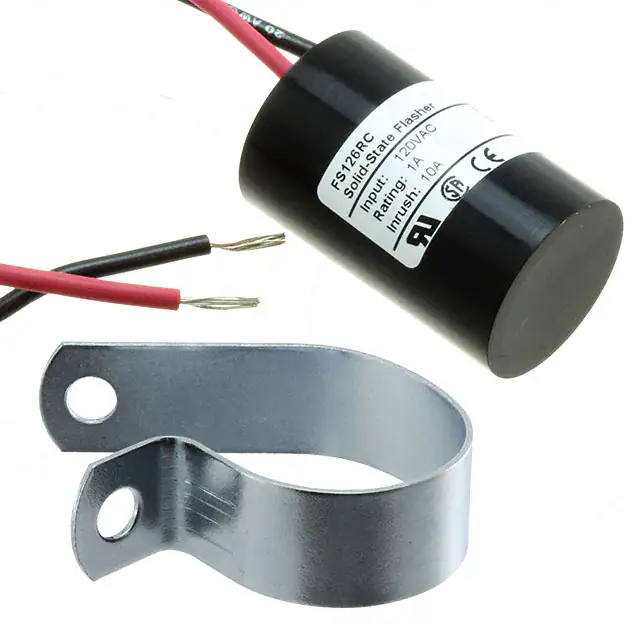

FS126RCRELAY TIME DELAY 75 FPM CHAS MT |
3,179 |
|
Datasheet | FS100 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 75 FPM | - | 120VAC | Wire Leads | Fixed | Input Voltage | - | - |
