Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS126RELAY TIME DELAY 75 FPM CHAS MT |
4,675 |
|
Datasheet | FS100 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 75 FPM | - | 120VAC | Wire Leads | Fixed | Input Voltage | - | - |
|

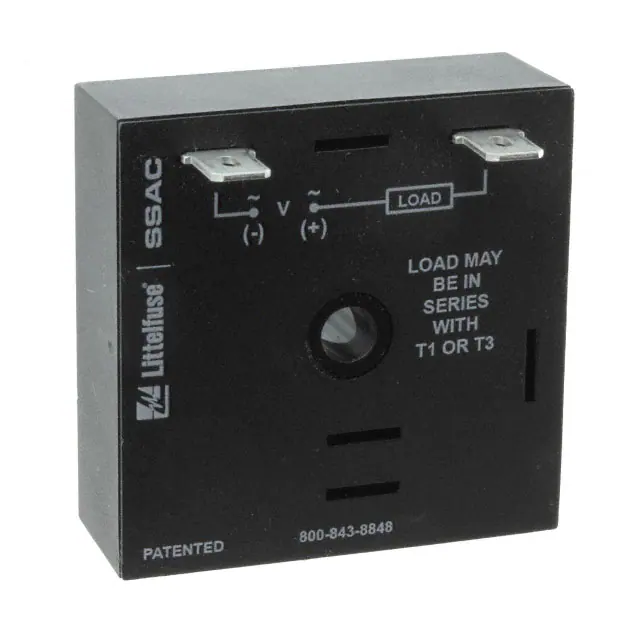

KSD11120SRELAY TIME DELAY 20 SEC CHAS MT |
4,085 |
|
Datasheet | KSD1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 20 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

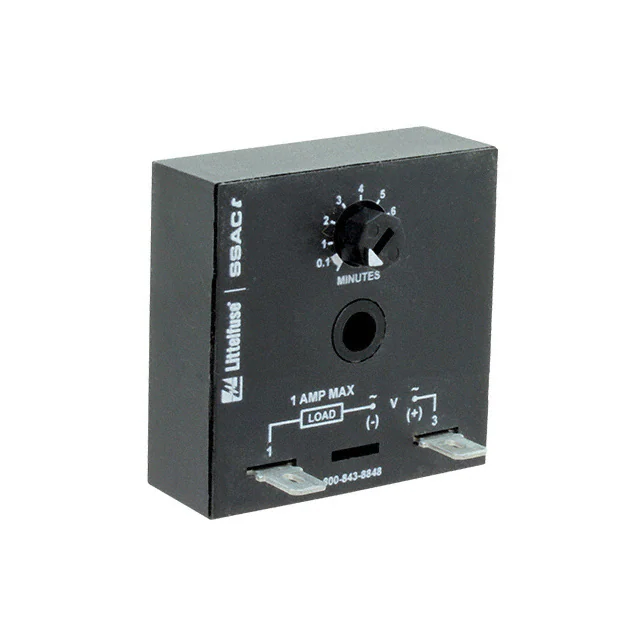

TMV8000RELAY TIME DELAY 8MIN CHAS MT |
2,384 |
|
Datasheet | TMV | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.1 Min ~ 8 Min | - | 24 ~ 240VAC/DC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|

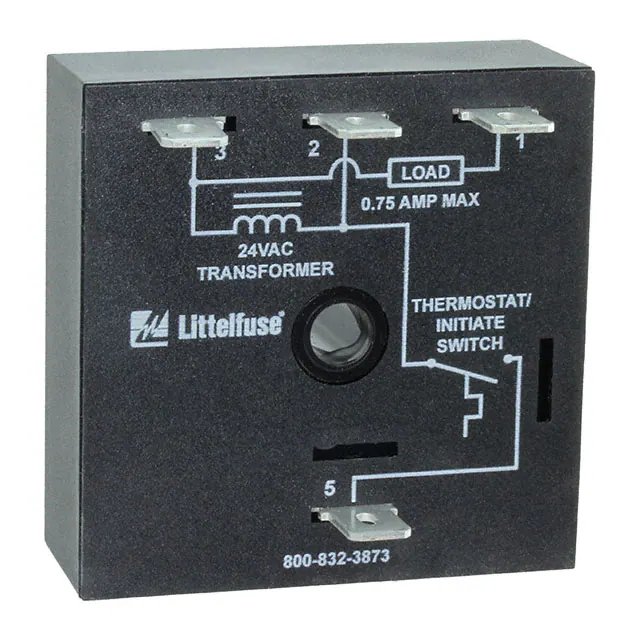

CT1S8RELAY TIME DELAY 1SEC 8SEC CHAS |
3,993 |
|
Datasheet | CT | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay, On-Delay | SPST-NO (1 Form A) | Fixed, 1 Sec, 8 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

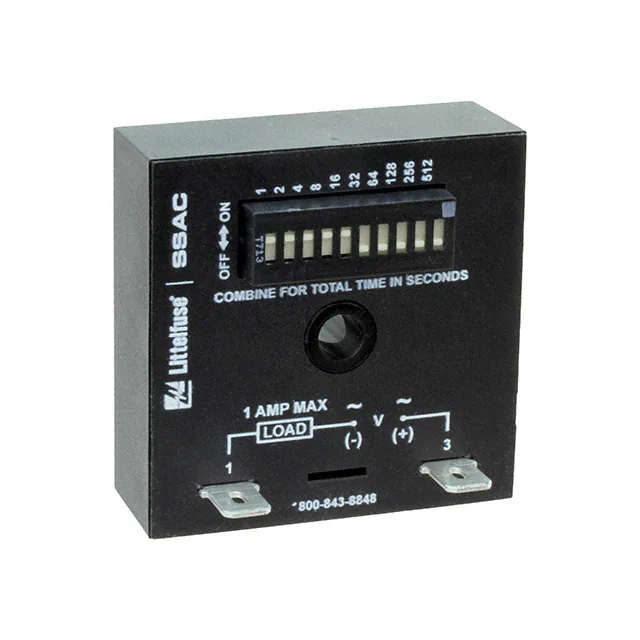

TDU3001ARELAY TIME DELAY 1023SEC CHAS MT |
4,510 |
|
Datasheet | TDU | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 1 Sec ~ 1023 Sec | - | 100 ~ 240VAC/DC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage | - | - |
|

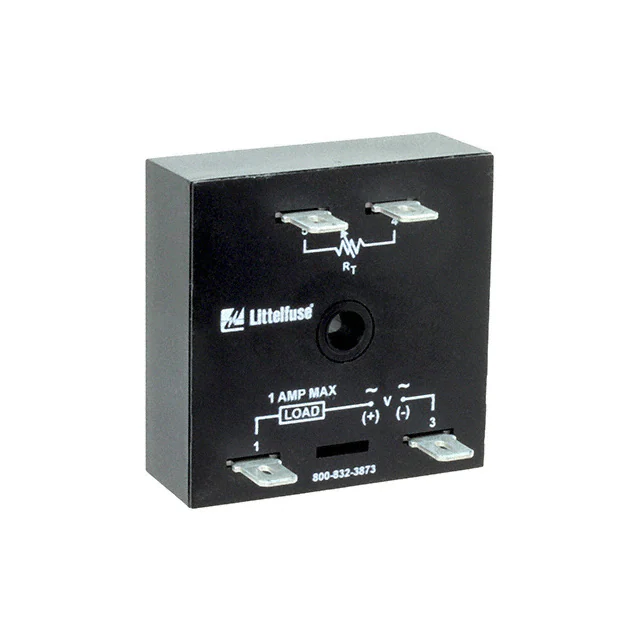

TS1422RELAY TIME DELAY 60SEC CHAS MT |
4,248 |
|
Datasheet | TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.5 Sec ~ 60 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

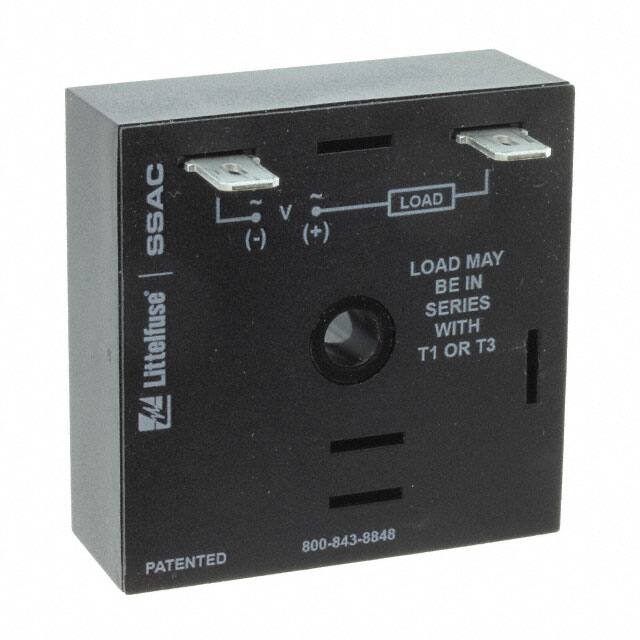

TS12130RELAY TIME DELAY 30SEC CHAS MT |
2,753 |
|
Datasheet | TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 30 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

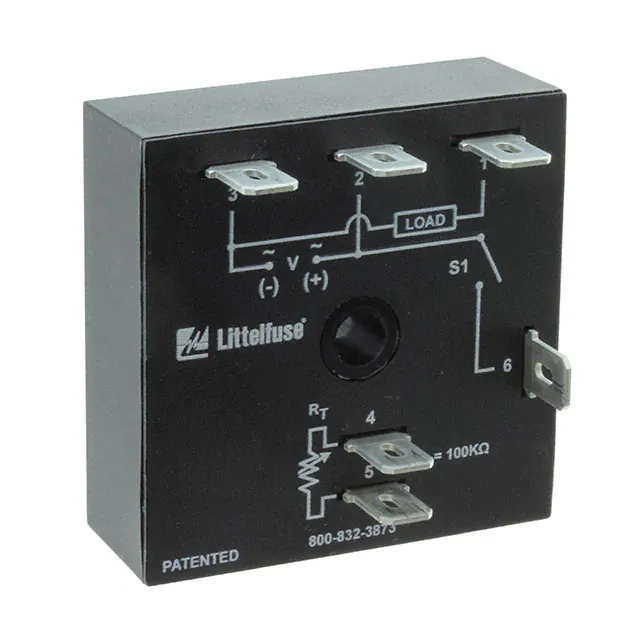

KSDS420RELAY TIME DELAY 10SEC CHAS MT |
1,075 |
|
Datasheet | KSDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
KSDB2115SRELAY TIME DELAY 15 SEC CHAS MT |
1,821 |
|
Datasheet | KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 15 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|

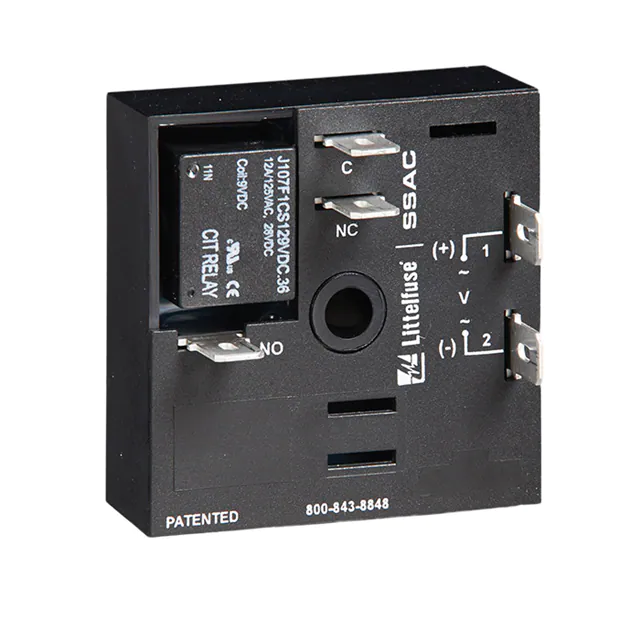

KRDM424RELAY TIME DELAY 100MIN 10A 125V |
3,220 |
|
Datasheet | KRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | 1 Min ~ 100 Min | 10A @ 125VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
