Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRDU24A3RELAY TIME DELAY 1705HR 10A 120V |
2,842 |
|
Datasheet | TRDU | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 1705 Hrs | 10A @ 120/240VAC | 24VAC/DC | Plug In, 11 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|

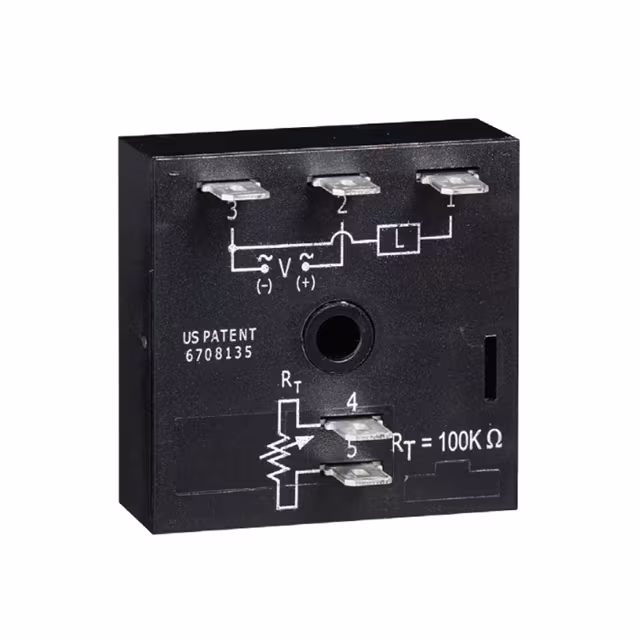

KSD2221RELAY TIME DELAY 100SEC CHAS MT |
1,590 |
|
Datasheet | KSD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

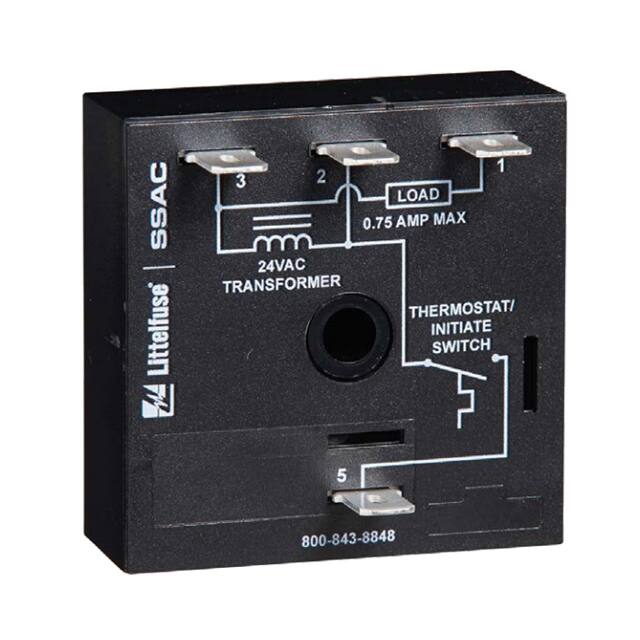

CT45S45RELAY TIME DELAY 45SEC CHAS MT |
1,195 |
|
Datasheet | CT | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay, On-Delay | SPST-NO (1 Form A) | Fixed, 45 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

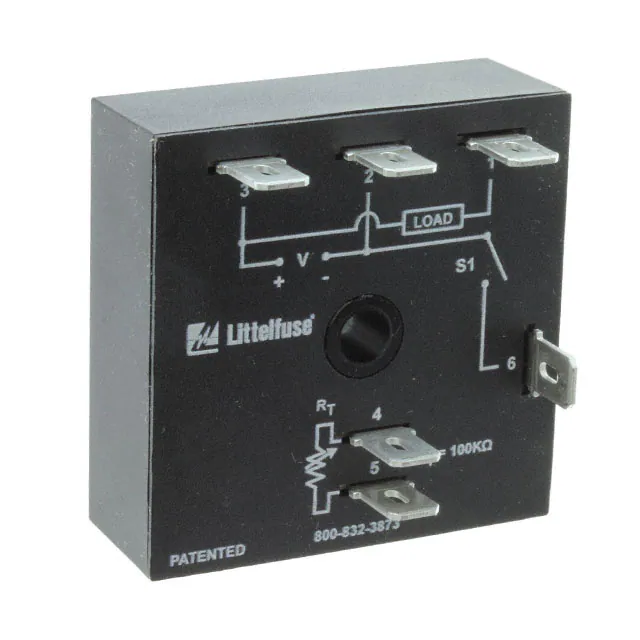

KSDB324NRELAY TIME DELAY 100MIN CHAS MT |
2,131 |
|
Datasheet | KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 1 Min ~ 100 Min | - | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|

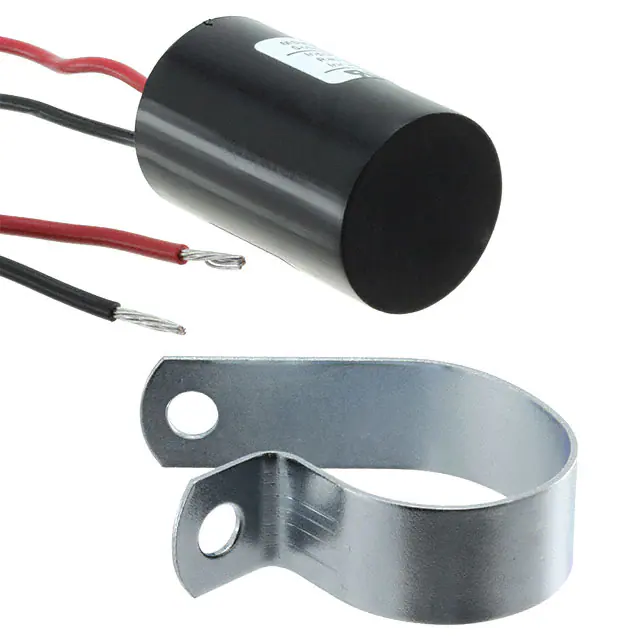

MSM11W6RELAY TIME DELAY 1 SEC CHAS MT |
4,411 |
|
Datasheet | MSM | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 1 Sec | - | 12VDC | Wire Leads | Fixed | Input Voltage | - | - |
|
MSM42W6RELAY TIME DELAY 2 SEC CHAS MT |
2,929 |
|
Datasheet | MSM | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 2 Sec | - | 120VAC | Wire Leads | Fixed | Input Voltage | - | - |
|
TAC1413RELAY TIME DELAY 3SEC CHAS MT |
1,517 |
|
Datasheet | TAC1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 3 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

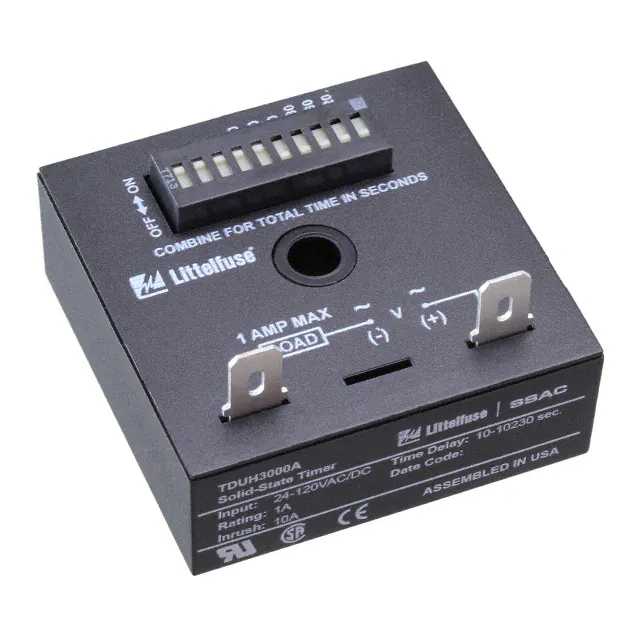

TDUH3000ARELAY TIME DELAY 10230SEC CHAS |
4,435 |
|
Datasheet | TDUH | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 10 Sec ~ 10230 Sec | - | 24 ~ 120VAC/DC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage | - | - |
|

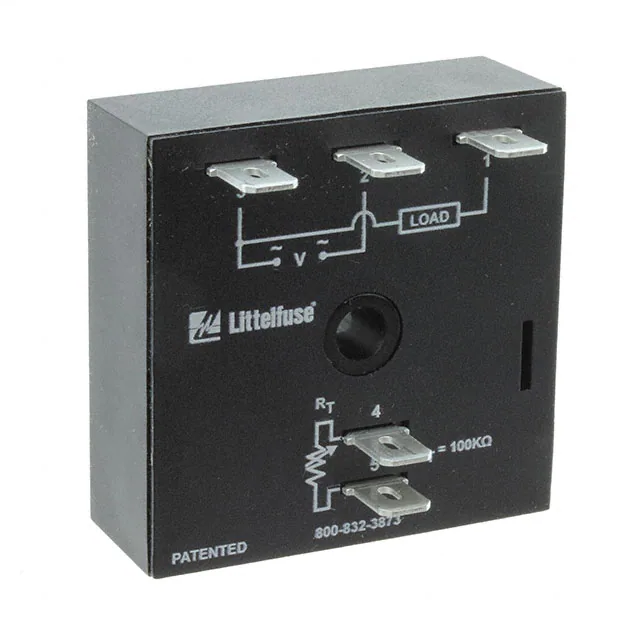

KSD2420RELAY TIME DELAY 10SEC CHAS MT |
2,229 |
|
Datasheet | KSD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

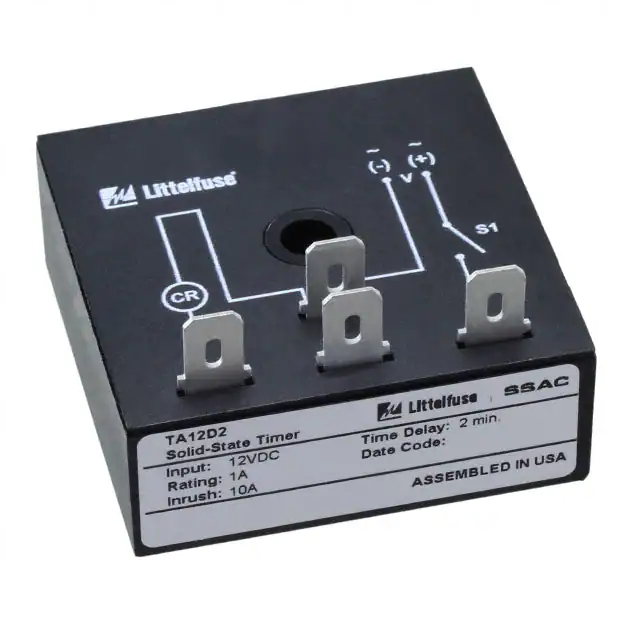

TA12D2RELAY TIME DELAY 2 MIN CHAS MT |
3,923 |
|
Datasheet | TA | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 2 Min | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
