Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

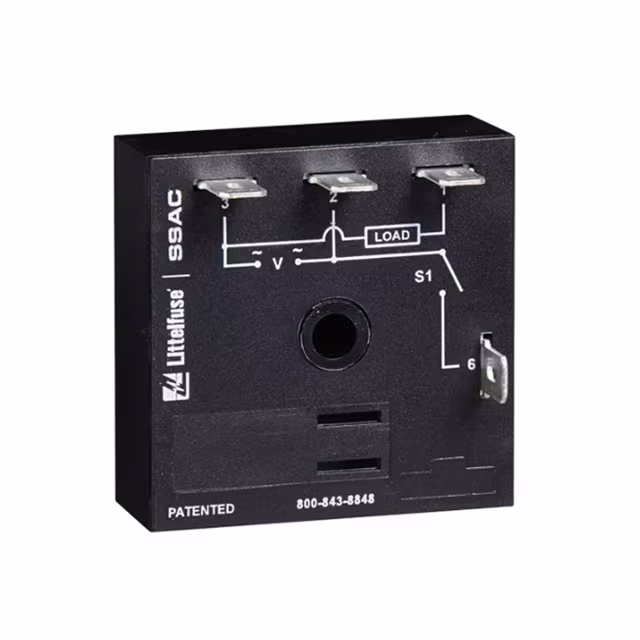

TSB632RELAY TIME DELAY 60SEC CHAS MT |
1,347 |
|
Datasheet | TSB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 0.5 Sec ~ 60 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
TSB634RELAY TIME DELAY 600SEC CHAS MT |
3,426 |
|
Datasheet | TSB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 5 Sec ~ 600 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
FS152RELAY TIME DELAY 90 FPM CHAS MT |
2,579 |
|
Datasheet | FS100 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 90 FPM | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
FS491RELAY TIME DELAY 75 FPM CHAS MT |
4,583 |
|
Datasheet | FS491 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 75 FPM | 10A @ 240VAC/28VDC | 120 ~ 240VAC | Wire Leads | Fixed | Input Voltage | - | - |
|
FS219-45RELAY TIME DELAY 45FPM CHAS MT |
3,329 |
|
Datasheet | FS200 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 45 FPM | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
TSS622RELAY TIME DELAY 60SEC CHAS MT |
4,477 |
|
Datasheet | TSS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.5 Sec ~ 60 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
|
TSS624RELAY TIME DELAY 600SEC CHAS MT |
4,905 |
|
Datasheet | TSS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 5 Sec ~ 600 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
ORS230A150SDRELAY TIME DELAY 50SEC 10A 120V |
2,097 |
|
Datasheet | ORS | Bulk | Obsolete | Chassis Mount | Mechanical Relay | One Shot | DPDT (2 Form C) | Fixed, 50 Sec | 10A @ 120/240VAC | 230VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
TS1211.5RELAY TIME DELAY 1.5 SEC CHAS MT |
3,455 |
|
Datasheet | TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 1.5 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TS1222RELAY TIME DELAY 60SEC CHAS MT |
4,622 |
|
Datasheet | TS1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.5 Sec ~ 60 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
