Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

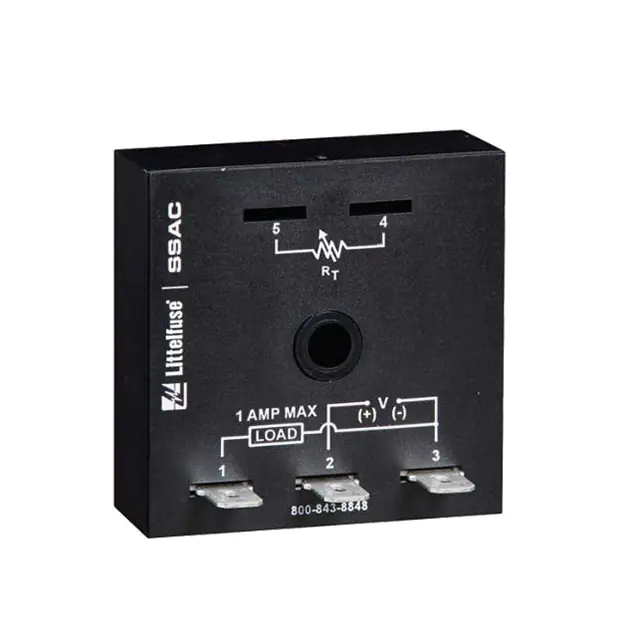

TS6123PRELAY TIME DELAY 60SEC CHAS MT |
1,312 |
|
Datasheet | TS6 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 2 Sec ~ 60 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
TS6321PRELAY TIME DELAY 3SEC CHAS MT |
2,433 |
|
Datasheet | TS6 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 0.05 Sec ~ 3 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
TS6323PRELAY TIME DELAY 180SEC CHAS MT |
3,228 |
|
- |
TS6 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 2 Sec ~ 180 Sec | - | 24VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

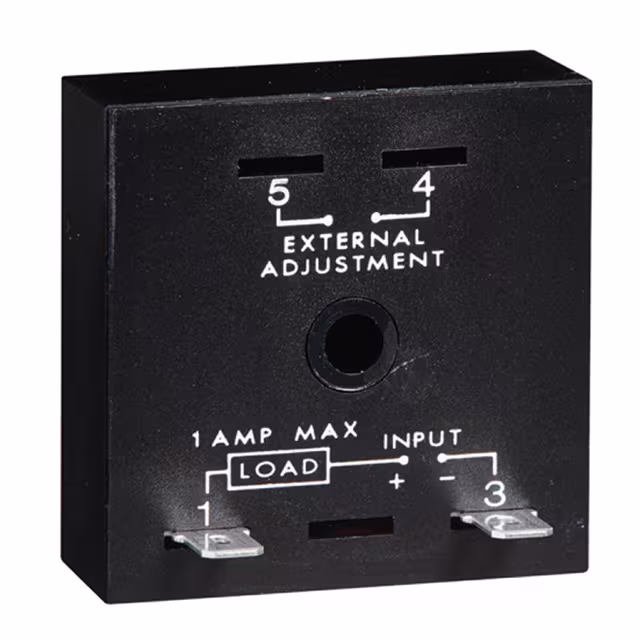

TSD7421RELAY TIME DELAY 100SEC CHAS MT |
4,517 |
|
Datasheet | TSD2 | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
TSD7423RELAY TIME DELAY 10MIN CHAS MT |
2,065 |
|
Datasheet | TSD2 | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 0.1 Min ~ 10 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
TSD761180SRELAY TIME DELAY 180 SEC CHAS MT |
3,777 |
|
Datasheet | TSD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 180 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TSD7611SRELAY TIME DELAY 1 SEC CHAS MT |
3,690 |
|
Datasheet | TSD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | Fixed, 1 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TSD7621RELAY TIME DELAY 100SEC CHAS MT |
2,118 |
|
Datasheet | TSD2 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | SPST-NO (1 Form A) | 1 Sec ~ 100 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
TDU3003ARELAY TIME DELAY 1023SEC CHAS MT |
1,993 |
|
Datasheet | TDU | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 1 Sec ~ 1023 Sec | - | 120 ~ 277VAC/DC | Quick Connect - 0.250" (6.3mm) | DIP Switches | Input Voltage | - | - |
|

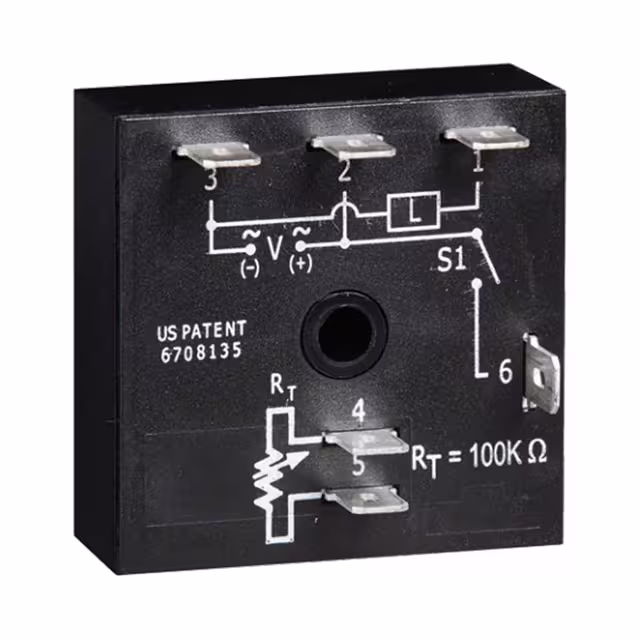

TSS410.5RELAY TIME DELAY 0.5 SEC CHAS MT |
2,519 |
|
Datasheet | TSS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | Fixed, 0.5 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
