Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KSDS320PRELAY TIME DELAY 10SEC CHAS MT |
1,661 |
|
Datasheet | KSDS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.1 Sec ~ 10 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
KSDU811200RELAY TIME DELAY 1200SEC CHAS MT |
3,576 |
|
Datasheet | KSDU | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 1200 Sec | - | 24 ~ 120VAC/DC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
KSDU8120RELAY TIME DELAY 20 SEC CHAS MT |
3,897 |
|
Datasheet | KSDU | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 20 Sec | - | 24 ~ 120VAC/DC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|

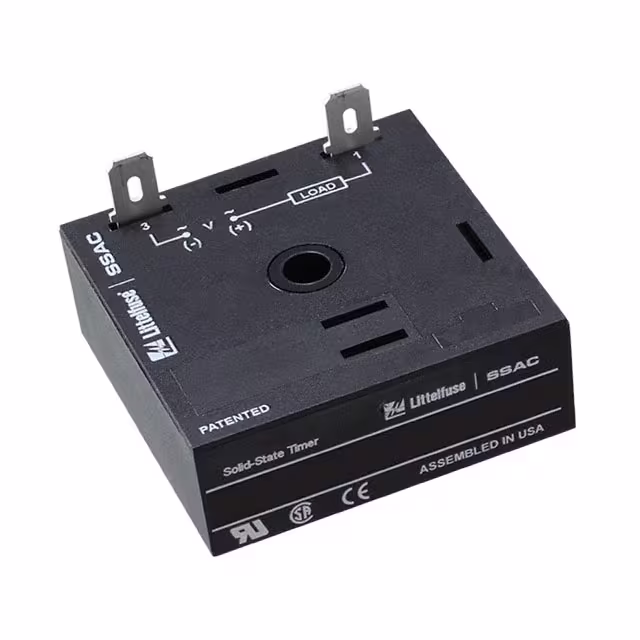

KSD1412SRELAY TIME DELAY 2 SEC CHAS MT |
3,758 |
|
Datasheet | KSD1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 2 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
KSD16130SRELAY TIME DELAY 30SEC CHAS MT |
2,099 |
|
Datasheet | KSD1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 30 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
KSD3415MARELAY TIME DELAY 5MIN CHAS MT |
2,222 |
|
Datasheet | KSD3 | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | Fixed, 5 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
TSD7424RELAY TIME DELAY 100MIN CHAS MT |
3,398 |
|
Datasheet | TSD7 | Bulk | Active | Chassis Mount | Solid State Relay | Interval | - | 1 Min ~ 100 Min | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
KSDB61150SRELAY TIME DELAY 150 SEC CHAS MT |
4,551 |
|
Datasheet | KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 150 Sec | - | 230VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
KSDB1120SPRELAY TIME DELAY 20 SEC CHAS MT |
3,564 |
|
Datasheet | KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 20 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
|
KSDB113SPRELAY TIME DELAY 3SEC CHAS MT |
3,164 |
|
Datasheet | KSDB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 3 Sec | - | 12VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
