Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TSS421RELAY TIME DELAY 3SEC CHAS MT |
4,963 |
|
Datasheet | TSS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.05 Sec ~ 3 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
|
TSS422RELAY TIME DELAY 60SEC CHAS MT |
2,474 |
|
Datasheet | TSS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 0.5 Sec ~ 60 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
|
TSS424RELAY TIME DELAY 600SEC CHAS MT |
4,480 |
|
Datasheet | TSS | Bulk | Active | Chassis Mount | Solid State Relay | One Shot | SPST-NO (1 Form A) | 5 Sec ~ 600 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
FS336DC FLASHER |
2,361 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|

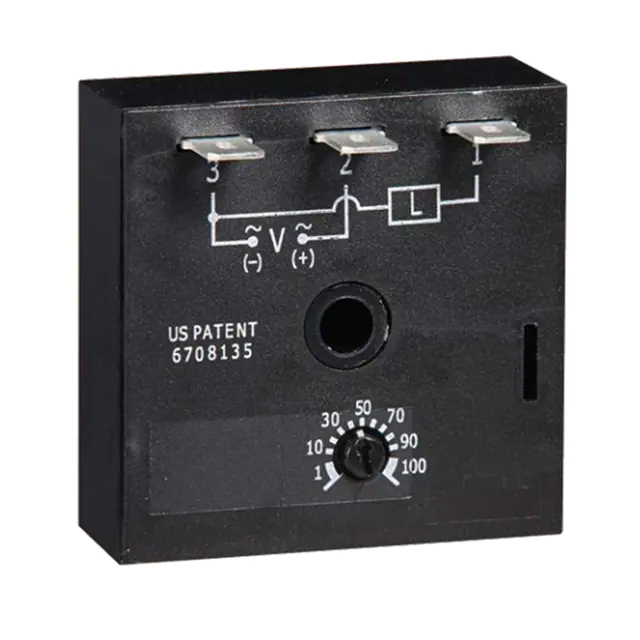

PTHF4900DKRELAY TIME DELAY 900SEC CHAS MT |
4,606 |
|
Datasheet | PTHF | Bulk | Obsolete | Chassis Mount | Solid State Relay | Off-Delay, On-Delay | SPST-NO (1 Form A) | Fixed, 900 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage, Trigger Signal | - | - |
|
TSB2190RELAY TIME DELAY 90SEC CHAS MT |
4,111 |
|
Datasheet | TSB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 90 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TSB222RELAY TIME DELAY 60SEC CHAS MT |
4,997 |
|
Datasheet | TSB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 0.5 Sec ~ 60 Sec | - | 24VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
TSB41300RELAY TIME DELAY 300SEC CHAS MT |
3,654 |
|
Datasheet | TSB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | Fixed, 300 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
|
TSB422RELAY TIME DELAY 60SEC CHAS MT |
2,280 |
|
Datasheet | TSB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 0.5 Sec ~ 60 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
|
TSB434RELAY TIME DELAY 600SEC CHAS MT |
3,437 |
|
Datasheet | TSB | Bulk | Active | Chassis Mount | Solid State Relay | Off-Delay | SPST-NO (1 Form A) | 5 Sec ~ 600 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
