Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS14-1212-60-BK-260-SCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
1,486 |
|
Datasheet | TS14 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 6.00mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
|
TS14-1212-100-BK-160-SCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
1,201 |
|
Datasheet | TS14 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|
PTS647SK70SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
328,172 |
|
Datasheet | PTS647 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 250gf | IP40 | - | -20°C ~ 70°C |
|
|
PTS647SM70SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
54,788 |
|
Datasheet | PTS647 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 180gf | IP40 | - | -40°C ~ 85°C |
|
PTS540JK035SMTRLFSSWITCH TACTILE SPST-NO 0.05A 12V |
45,793 |
|
Datasheet | PTS540 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.35mm | - | Top Actuated | J Lead | 3.70mm x 3.70mm | Non-Illuminated | - | - | 230gf | - | - | -30°C ~ 85°C |
|
|
PTS647SM50SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
26,185 |
|
Datasheet | PTS647 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 180gf | IP40 | - | -40°C ~ 85°C |
|
|
PTS647SN38SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
24,556 |
|
Datasheet | PTS647 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 3.80mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 100gf | IP40 | - | -40°C ~ 85°C |
|
|
PTS540JM035SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
21,788 |
|
Datasheet | PTS540 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.35mm | - | Top Actuated | J Lead | 3.70mm x 3.70mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 85°C |
|
EVP-BL2A1B000SWITCH TACTILE SPST-NO 0.02A 15V |
14,538 |
|
Datasheet | EVPBL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.53mm | - | Top Actuated | SMD (SMT) Tab | 2.80mm x 1.90mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|

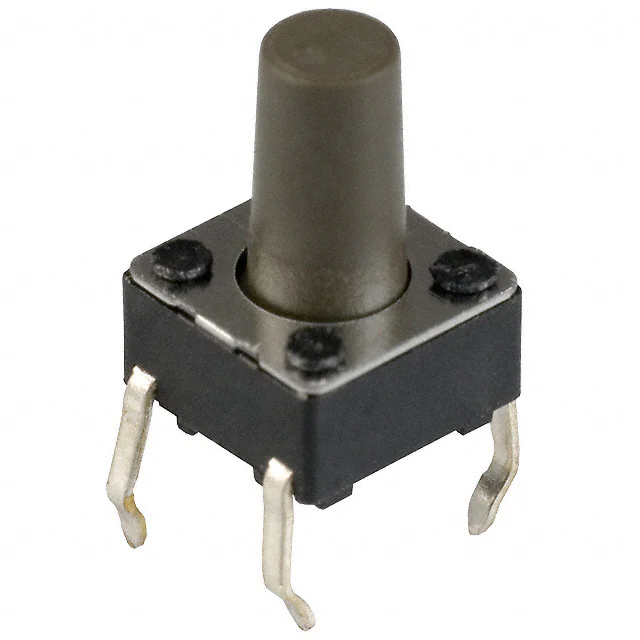

PTS645SH95-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
12,911 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|
PTS645SK95-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
12,220 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
TL3145BF350QJSWITCH TACTILE SPST-NO 0.05A 12V |
11,306 |
|
Datasheet | TL3145 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.20mm | - | Top Actuated | J Lead | 6.45mm x 6.45mm | Non-Illuminated | - | - | 350gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
PTS647SN70SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
10,573 |
|
Datasheet | PTS647 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 100gf | IP40 | - | -40°C ~ 85°C |
|
|
PTS647SK50SMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
9,842 |
|
Datasheet | PTS647 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 250gf | IP40 | - | -20°C ~ 70°C |
|

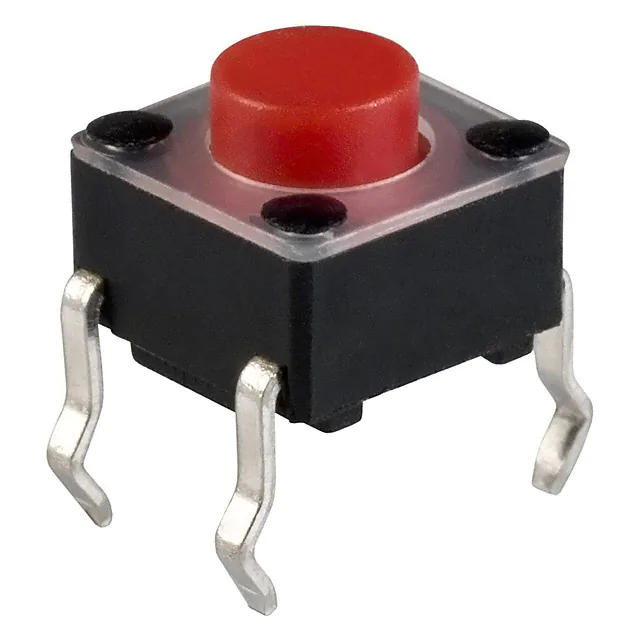

TL1105AF250QSWITCH TACTILE SPST-NO 0.05A 12V |
6,979 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 250gf | - | - | -20°C ~ 70°C |
|

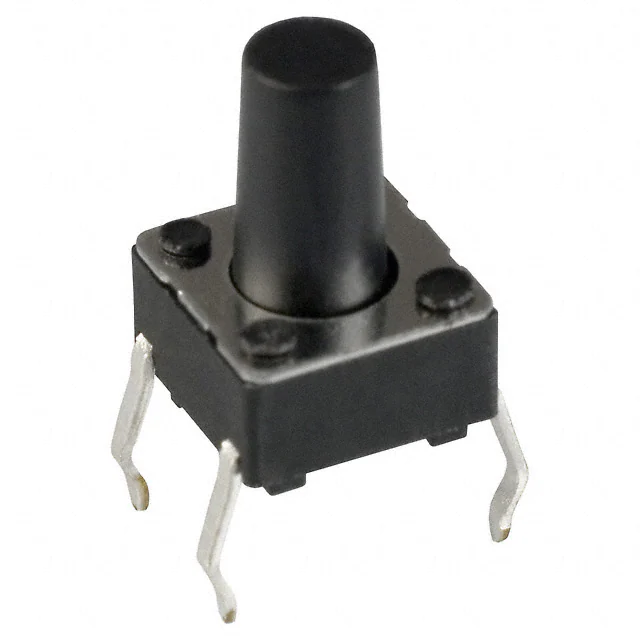

PTS645SL95-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
4,490 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
RKB2SJG250SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
2,148 |
|
Datasheet | RK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 400gf | - | - | -40°C ~ 90°C |
|
MJTP1230CSWITCH TACTILE SPST-NO 0.05A 12V |
142,324 |
|
Datasheet | MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 8.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
1-1825027-2SWITCH TACTILE SPST-NO 0.05A 24V |
45,248 |
|
Datasheet | FSMRAJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 105°C |
|
B3F-1020SWITCH TACTILE SPST-NO 0.05A 24V |
42,968 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -25°C ~ 70°C |
