Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CS11024.3F260SWITCH TACTILE SPST-NO 0.05A 50V |
14,500 |
|
Datasheet | CS1102 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
PTS636SL43SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
9,496 |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 130gf | IP40 | - | -40°C ~ 90°C |
|
R-667799SWITCH TACTILE SPST-NO 0.05A 12V |
9,101 |
|
Datasheet | SOU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 3.55mm | Side Actuated | SMD (SMT) Tab | 3.60mm x 2.90mm | Non-Illuminated | - | - | 245gf | - | - | - |
|
|
PTS636SK50SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
6,956 |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 250gf | IP40 | - | -40°C ~ 90°C |
|
TL58VF100QSWITCH TACTILE SPST-NO 0.05A 12V |
6,414 |
|
Datasheet | TL58 | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.40mm x 6.65mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
TL1105CF160QSWITCH TACTILE SPST-NO 0.05A 12V |
5,837 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 8.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
2-1825955-6SWITCH TACTILE SPST-NO 0.05A 24V |
3,064 |
|
Datasheet | FSMJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -35°C ~ 85°C |
|
RKB2SJM250SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
2,875 |
|
Datasheet | RK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 180gf | - | - | -40°C ~ 90°C |
|
TS18-5-25-SL-160-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
2,149 |
|
Datasheet | TS18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|
|
PTS636SP43SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
1,442 |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 320gf | IP40 | - | -40°C ~ 90°C |
|
PTS645SM50SMTR92 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
141,342 |
|
Datasheet | PTS645 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

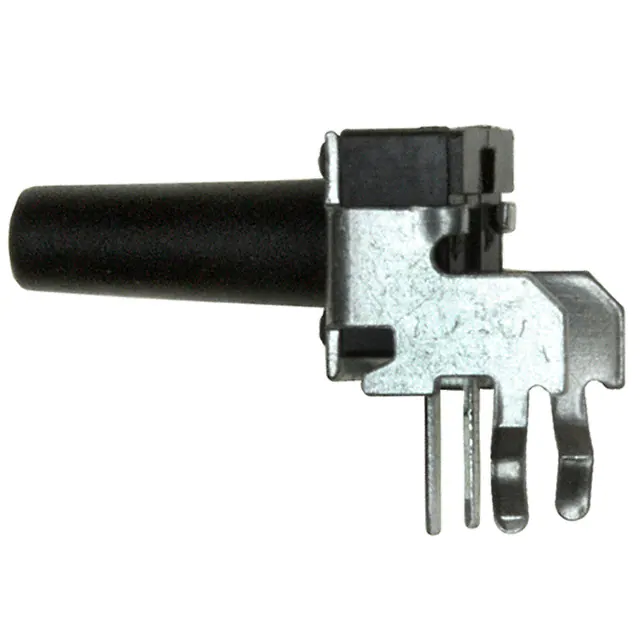

2-1825027-0SWITCH TACTILE SPST-NO 0.05A 24V |
60,974 |
|
Datasheet | FSMRAJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 11.85mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 105°C |
|
|
PTS526SKG15JSMTR2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
21,900 |
|
Datasheet | PTS526 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | J Lead | 5.20mm x 5.20mm | Non-Illuminated | - | - | 260gf | IP40 | - | -20°C ~ 70°C |
|
|
PTS636SM25FSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
9,282 |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | SMD (SMT) Tab | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | IP40 | - | -40°C ~ 90°C |
|
|
PTS636SMG25SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
8,330 |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | IP40 | - | -40°C ~ 90°C |
|
|
R-667270SWITCH TACTILE SPST-NO 0.05A 12V |
5,940 |
|
Datasheet | SOU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 3.55mm | Side Actuated | SMD (SMT) Tab | 3.60mm x 2.90mm | Non-Illuminated | - | - | 204gf | - | - | - |
|
|
RKB2SJK250SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
3,625 |
|
Datasheet | RK | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 90°C |
|
1825027-5SWITCH TACTILE SPST-NO 0.05A 24V |
41,697 |
|
Datasheet | FSMRAJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.86mm | Side Actuated | PC Pin | 7.11mm x 6.60mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 105°C |
|
TL1105F160QSWITCH TACTILE SPST-NO 0.05A 12V |
20,281 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
TL1105CF100QSWITCH TACTILE SPST-NO 0.05A 12V |
14,723 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 8.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
