Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

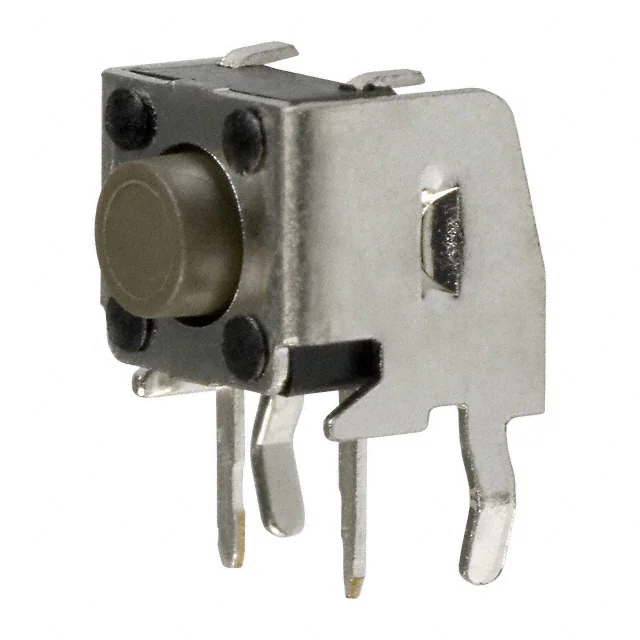

PTS645VH39-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
2,915 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|
1301.9307SWITCH TACTILE SPST-NO 0.05A 12V |
2,748 |
|
Datasheet | LPH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 12.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|
1301.9306SWITCH TACTILE SPST-NO 0.05A 12V |
2,651 |
|
Datasheet | LPH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|
R-667079SWITCH TACTILE SPST-NO 0.05A 12V |
2,447 |
|
Datasheet | SOF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Surface Mount | 2.00mm | - | Top Actuated | SMD (SMT) Tab | 3.30mm x 2.90mm | Non-Illuminated | - | - | 163gf | - | - | - |
|
1301.9303SWITCH TACTILE SPST-NO 0.05A 12V |
1,662 |
|
Datasheet | LPH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|
PTS645VM83-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
21,239 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 8.35mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
1301.9319SWITCH TACTILE SPST-NO 0.05A 12V |
14,246 |
|
Datasheet | LSH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 9.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|
1301.9317SWITCH TACTILE SPST-NO 0.05A 12V |
8,140 |
|
Datasheet | LSH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|
R-668127SWITCH TACTILE SPST-NO 0.02A 15V |
8,096 |
|
Datasheet | STU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.57mm | - | Top Actuated | SMD (SMT) Tab | 2.80mm x 1.90mm | Non-Illuminated | - | - | 229gf | IP68 - Dust Tight, Waterproof | - | - |
|
1301.9320SWITCH TACTILE SPST-NO 0.05A 12V |
7,633 |
|
Datasheet | LSH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 12.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|
1301.9318SWITCH TACTILE SPST-NO 0.05A 12V |
5,943 |
|
Datasheet | LSH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|
1301.9314SWITCH TACTILE SPST-NO 0.05A 12V |
5,597 |
|
Datasheet | LSH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|
1301.9315SWITCH TACTILE SPST-NO 0.05A 12V |
4,817 |
|
Datasheet | LSH | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|
222ADVBASWITCH TACTILE SPST-NO 0.05A 12V |
2,456 |
|
Datasheet | 222A | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -40°C ~ 85°C |
|
EVQ-Q2B01WSWITCH TACTILE SPST-NO 0.02A 15V |
1,754 |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 50gf | - | - | -40°C ~ 85°C |
|

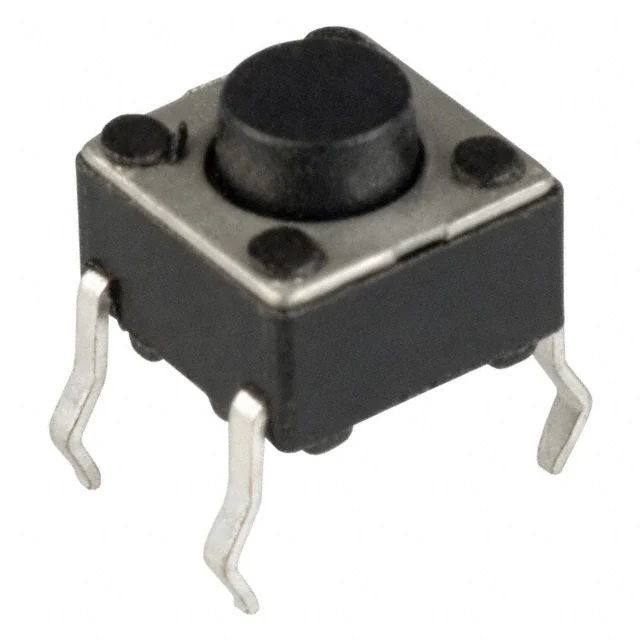

PTS645SL50-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
41,293 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
PTS645SH70-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
40,751 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 200gf | - | - | -40°C ~ 85°C |
|
PTS636SK25JSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
40,158 |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 250gf | IP40 | - | -40°C ~ 90°C |
|
223AMVAARSWITCH TACTILE SPST-NO 0.05A 12V |
38,212 |
|
Datasheet | 223A | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 4.70mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -40°C ~ 85°C |
|
|
PTS645SL70-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
21,515 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
