Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSM4JSMASWITCH TACTILE SPST-NO 0.05A 24V |
47,974 |
|
Datasheet | FSMJSMA | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
EVQ-Q2Y01WSWITCH TACTILE SPST-NO 0.02A 15V |
22,142 |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
FSMRACDSWITCH TACTILE SPST-NO 0.05A 24V |
20,259 |
|
Datasheet | FSMRACD | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole, Right Angle | - | 6.35mm | Side Actuated | PC Pin | - | Non-Illuminated | - | - | 100gf | - | - | -35°C ~ 85°C |
|

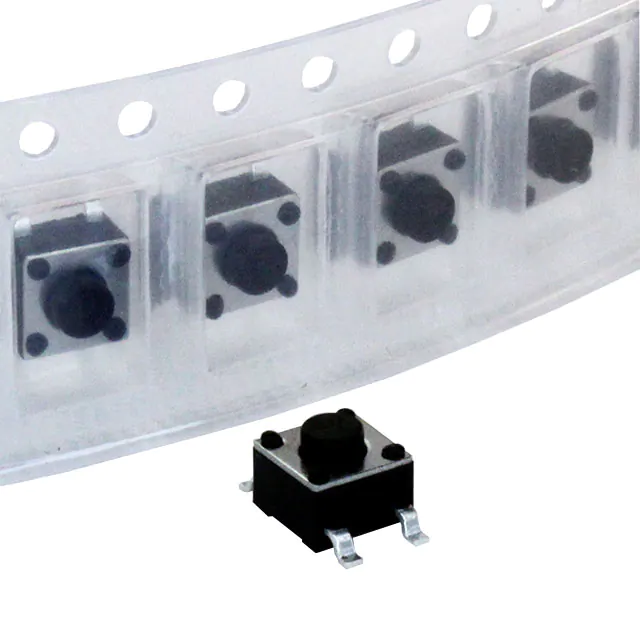

CS11025.0F160SWITCH TACTILE SPST-NO 0.05A 50V |
19,484 |
|
Datasheet | CS1102 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
R-668049SWITCH TACTILE SPST-NO 0.02A 15V |
12,750 |
|
Datasheet | STI | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.55mm | - | Top Actuated | SMD (SMT) Tab | 2.50mm x 1.60mm | Non-Illuminated | - | - | 163gf | IPX7, Water Resistant | - | - |
|
EVQ-Q2Y02WSWITCH TACTILE SPST-NO 0.02A 15V |
12,166 |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
CS11024.3F160SWITCH TACTILE SPST-NO 0.05A 50V |
9,595 |
|
Datasheet | CS1102 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
R-668048SWITCH TACTILE SPST-NO 0.02A 15V |
6,606 |
|
Datasheet | STI | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.55mm | - | Top Actuated | SMD (SMT) Tab | 2.50mm x 1.60mm | Non-Illuminated | - | - | 122gf | IPX7, Water Resistant | - | - |
|
PTS530 GN055 SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
119,140 |
|
Datasheet | PTS530 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Flush | Surface Mount | 0.55mm | - | Top Actuated | Gull Wing | 4.50mm x 4.50mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
TL3301DF160QGSWITCH TACTILE SPST-NO 0.05A 12V |
92,661 |
|
Datasheet | TL3301 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 13.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

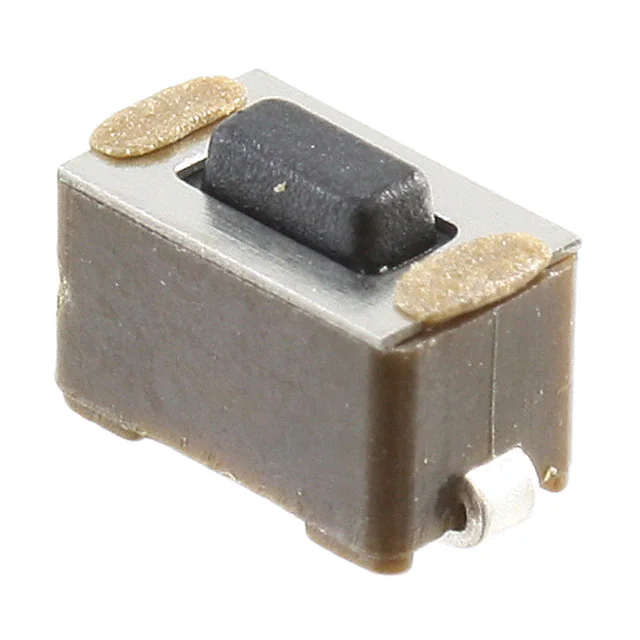

FSM2JMTRSWITCH TACTILE SPST-NO 0.05A 24V |
64,322 |
|
Datasheet | FSMJM | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.00mm x 3.50mm | Non-Illuminated | - | - | 180gf | - | - | -35°C ~ 85°C |
|
B3F-1052SWITCH TACTILE SPST-NO 0.05A 24V |
29,256 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 150gf | - | - | -25°C ~ 70°C |
|
TL3780AF240QGSWITCH TACTILE SPST-NO 0.05A 12V |
20,574 |
|
Datasheet | TL3780 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 0.60mm | - | Top Actuated | Gull Wing | 3.00mm x 2.00mm | Non-Illuminated | - | - | 240gf | - | - | -40°C ~ 85°C |
|
1571625-1SWITCH TACTILE SPST-NO 0.05A 24V |
17,436 |
|
Datasheet | Extended Life | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 50gf | - | - | -35°C ~ 85°C |
|
EVP-BL5A8F000SWITCH TACTILE SPST-NO 0.02A 15V |
15,312 |
|
Datasheet | EVPBL | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.60mm | - | Top Actuated | J Lead | 2.80mm x 1.90mm | Non-Illuminated | - | - | 306gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
TL58XF160QSWITCH TACTILE SPST-NO 0.05A 12V |
6,755 |
|
Datasheet | TL58 | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 4.75mm | Side Actuated | PC Pin | 7.40mm x 6.65mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
LS38G2F-TSWITCH TACTILE SPST-NO 0.02A 12V |
6,207 |
|
Datasheet | LS38G | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 12VDC | Round Button | Surface Mount | 1.50mm | - | Top Actuated | SMD (SMT) Tab | 3.30mm x 3.10mm | Non-Illuminated | - | - | 179gf | - | - | - |
|
B3F-3122SWITCH TACTILE SPST-NO 0.05A 24V |
3,713 |
|
Datasheet | B3F | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.30mm x 6.25mm | Non-Illuminated | - | - | 150gf | - | Grounding Pin | -25°C ~ 70°C |
|
|
EVQ-Q2B02WSWITCH TACTILE SPST-NO 0.02A 15V |
2,328 |
|
Datasheet | EVQQ2 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 6.50mm x 6.00mm | Non-Illuminated | - | - | 50gf | - | - | -40°C ~ 85°C |
|
R-666939SWITCH TACTILE SPST-NO 0.05A 12V |
1,676 |
|
Datasheet | SOU | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 3.55mm | Side Actuated | SMD (SMT) Tab | 3.60mm x 2.90mm | Non-Illuminated | - | - | 163gf | - | - | - |
