Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CT11025.0F160SWITCH TACTILE SPST-NO 0.05A 50V |
2,555 |
|
Datasheet | CT1102 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

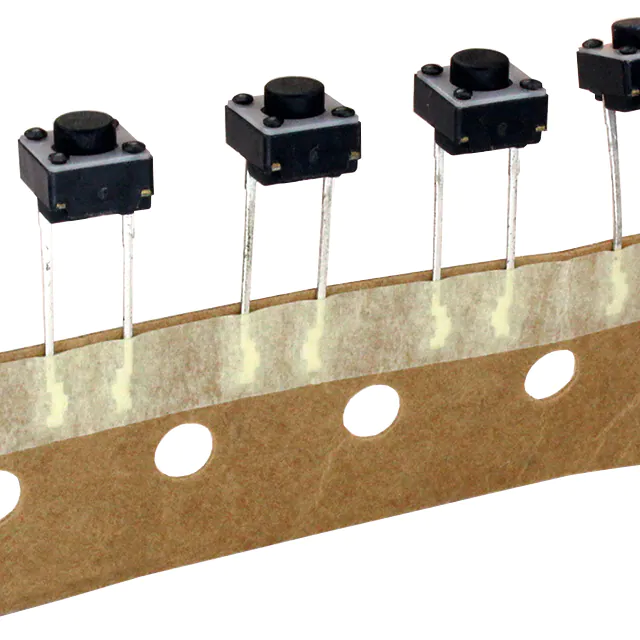

CR1102H5.0F260SWITCH TACTILE SPST-NO 0.05A 50V |
2,157 |
|
Datasheet | CR1102H | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
CT1102V3.85F160SWITCH TACTILE SPST-NO 0.05A 50V |
1,603 |
|
Datasheet | CT1102 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

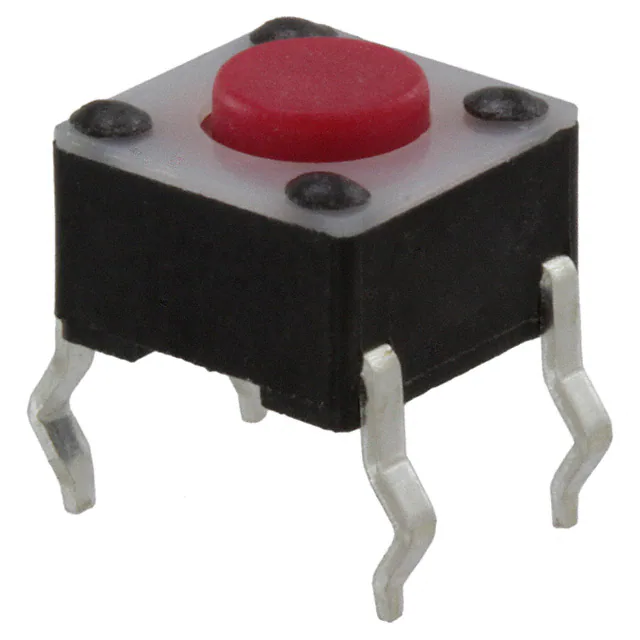

1825910-3SWITCH TACTILE SPST-NO 0.05A 24V |
32,782 |
|
Datasheet | FSMJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -35°C ~ 85°C |
|
1825955-2SWITCH TACTILE SPST-NO 0.05A 24V |
19,428 |
|
Datasheet | FSMJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -35°C ~ 85°C |
|
|
PTS815SJG250SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
14,547 |
|
Datasheet | PTS815 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Oval Button | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 4.20mm x 3.20mm | Non-Illuminated | - | - | 400gf | IP40 | - | -40°C ~ 90°C |
|
1825910-2SWITCH TACTILE SPST-NO 0.05A 24V |
13,445 |
|
Datasheet | FSMJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
PTS636 SL50 SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
2,477 |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 130gf | IP40 | - | -40°C ~ 90°C |
|
EVP-BT6A4A000SWITCH TACTILE SPST-NO 0.02A 15V |
2,459 |
|
Datasheet | EVPBT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | SMD (SMT) Tab | 6.50mm x 6.00mm | Non-Illuminated | - | - | 265gf | - | - | -40°C ~ 85°C |
|
|
PTS636 SP50 SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
2,067 |
|
Datasheet | PTS636 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 3.50mm | Non-Illuminated | - | - | 320gf | IP40 | - | -40°C ~ 90°C |
|
1825966-1SWITCH TACTILE SPST-NO 0.05A 24V |
151,531 |
|
Datasheet | FSM | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Rectangular Button | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 130gf | - | - | -35°C ~ 85°C |
|
1825967-1SWITCH TACTILE SPST-NO 0.05A 24V |
103,508 |
|
Datasheet | FSMCD | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -35°C ~ 85°C |
|

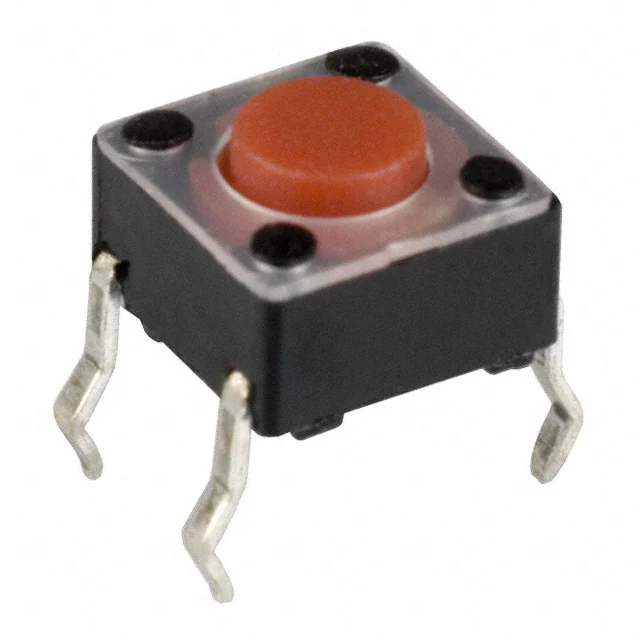

PTS645SK43-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
71,545 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|

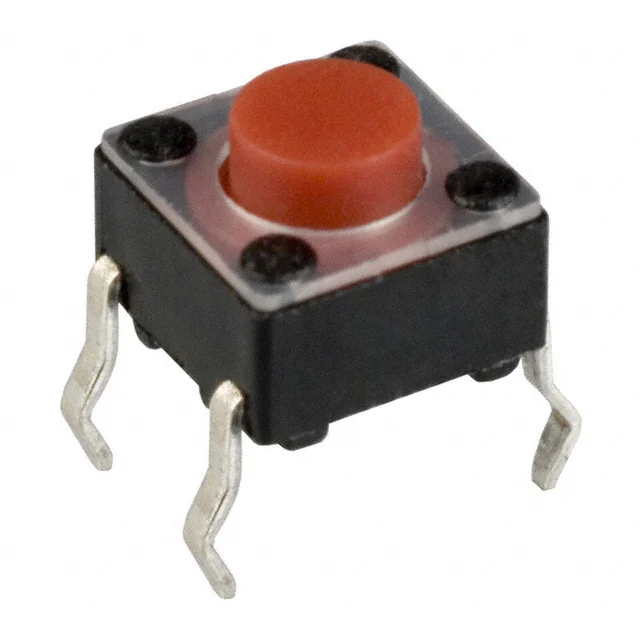

PTS645SK50-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
57,910 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
PTS645SK70-2 LFSSWITCH TACTILE SPST-NO 0.05A 12V |
49,749 |
|
Datasheet | PTS645 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
MJTP1230SWITCH TACTILE SPST-NO 0.05A 12V |
28,400 |
|
Datasheet | MJTP | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
|
TS21-34-035-BK-260-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
20,980 |
|
Datasheet | TS21 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | SMD (SMT) Tab | 3.40mm x 3.40mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
TS04-66-73-BK-100-SMTSWITCH TACTILE SPST-NO 0.05A 12V |
16,441 |
|
Datasheet | TS04 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 80°C |
|
|
TS21-34-035-BK-160-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
11,716 |
|
Datasheet | TS21 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | SMD (SMT) Tab | 3.40mm x 3.40mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|
|
TS04-66-75-BK-160-SMTSWITCH TACTILE SPST-NO 0.05A 12V |
7,048 |
|
Datasheet | TS04 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.50mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
