Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RC1083BBLKBLKAFSWITCH ROCKER DPST 8A 125V |
2,798 |
|
Datasheet | RC1083 | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 13.00mm | -30°C ~ 85°C | CSA, cUL, cULus, UL, VDE |
|
|
RC1083BBLKBLKLFSWITCH ROCKER DPST 8A 125V |
4,803 |
|
Datasheet | RC1083 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black | Rectangle on End | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 13.00mm | -30°C ~ 85°C | CSA, cUL, cULus, UL, VDE |
|
|
RR3112BBLKBLKREDAF1SWITCH ROCKER SPST 16A 125V |
2,620 |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Black | Dot | Neon, Red | 110 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
|
RR3112ABLKBLKREDAF3SWITCH ROCKER SPST 16A 125V |
1,969 |
|
Datasheet | RR3112 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round - Illuminated | Black | Dot | LED, Red | 3 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.20mm Dia | 0°C ~ 65°C | - |
|
RB24GD1100SWITCH ROCKER DPDT 20A 125V |
2,116 |
|
Datasheet | RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|

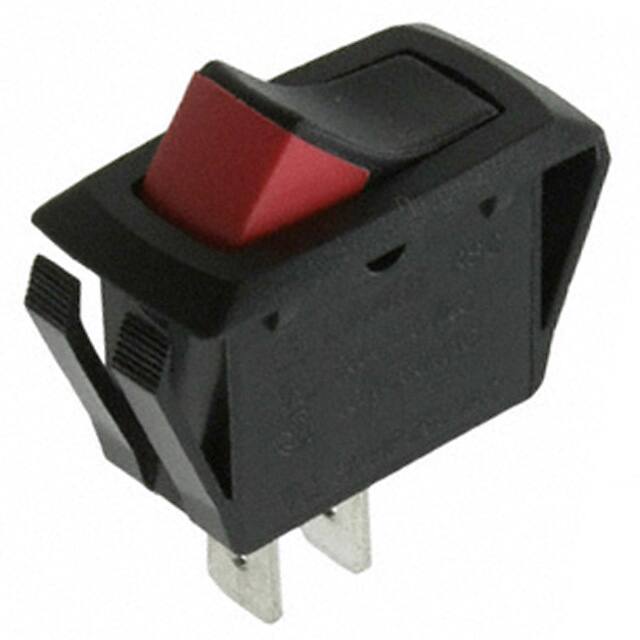

RSC141D1A00SWITCH ROCKER SPST 20A 125V |
2,507 |
|
Datasheet | RSC, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black, Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 28.60mm x 13.90mm | -20°C ~ 105°C | CSA, UL |
|

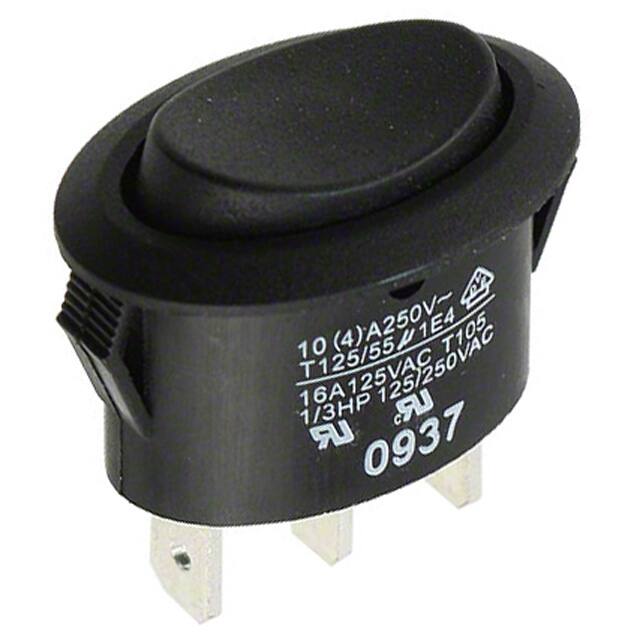

RE115C1100SWITCH ROCKER SPDT 16A 125V |
1,188 |
|
Datasheet | RE1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 16A (AC) | 125 V | - | Oval | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 105°C | cUL, VDE, UL |
|
RVW42D1100-116SWITCH ROCKER DPST 20A 125V |
1,417 |
|
Datasheet | RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
RVWG4GD1100SWITCH ROCKER DPDT 20A 125V |
2,523 |
|
Datasheet | RVW, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
RRGA81C1121SWITCH ROCKER SPST 16A 125V |
1,187 |
|
Datasheet | RRGA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Round | Black | O - | - | - | Solder, Quick Connect - 0.187" (4.7mm) | - | - | Circular - 22.00mm Dia | -20°C ~ 105°C | cUL, UL, VDE |
