Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSC241D1023-135SWITCH ROCKER SPST 20A 125V |
3,107 |
|
Datasheet | RSC, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | ON OFF, Vertical | Incandescent, Green | 24 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 27.20mm x 12.10mm | -20°C ~ 105°C | CSA, UL |
|
RSC341D2C8Z24SWITCH ROCKER SPST 20A 125V |
1,891 |
|
Datasheet | RSC, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Red, White | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | Two-Tone Rocker | Rectangular - 27.20mm x 13.90mm | -20°C ~ 105°C | CSA, UL |
|
RA111C1021-117SWITCH ROCKER SPST 16A 125V |
3,135 |
|
Datasheet | RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | 250 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA111C1021-124SWITCH ROCKER SPST 16A 125V |
1,000 |
|
Datasheet | RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Amber | O - | Incandescent, Amber | 12 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA111C1121/ACC-P01SWITCH ROCKER SPST 16A 125V |
2,597 |
|
Datasheet | RA1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | IP54 - Dust Protected, Water Resistant | Sealing Boot | Rectangular - 19.40mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA45HC1911SWITCH ROCKER DPDT 16A 125V |
4,985 |
|
Datasheet | RA4, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Mom | 16A (AC) | 125 V | - | Concave (Curved) | Red | O - | - | - | Solder Lug | - | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, UL |
|
RA812C1000-116SWITCH ROCKER DPST 16A 125V |
4,136 |
|
Datasheet | RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | No Marking | Neon, Red | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RA812C1028-136SWITCH ROCKER DPST 16A 125V |
4,723 |
|
Datasheet | RA8, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O on End | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.00mm x 13.10mm | -20°C ~ 55°C | cULus |
|
RB141C1000-134SWITCH ROCKER SPST 15A 125V |
2,210 |
|
Datasheet | RB1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | No Marking | Incandescent, Green | 12 VDC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
|

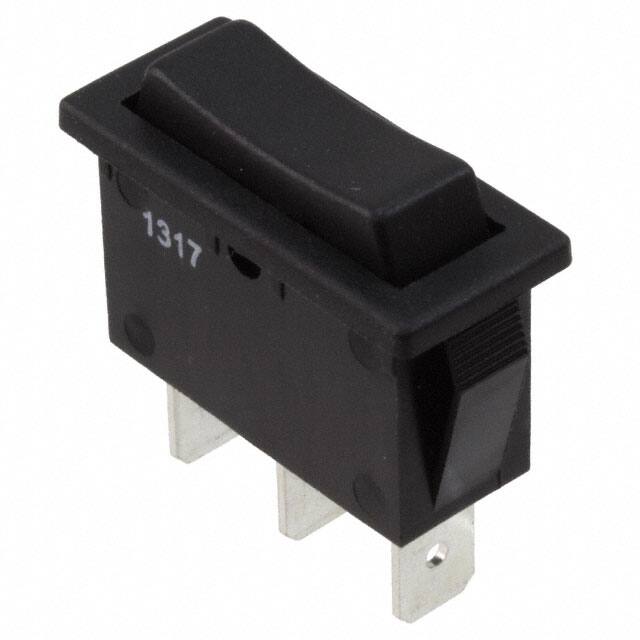

RB145C1100SWITCH ROCKER SPDT 15A 125V |
3,880 |
|
Datasheet | RB1, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | SPDT | On-Off-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 11.00mm | -20°C ~ 65°C | cULus |
