Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RC1083BBLKBLKFF0SWITCH ROCKER DPST 8A 125V |
3,017 |
|
Datasheet | RC1083 | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 13.00mm | -30°C ~ 85°C | CSA, cUL, cULus, UL, VDE |
|

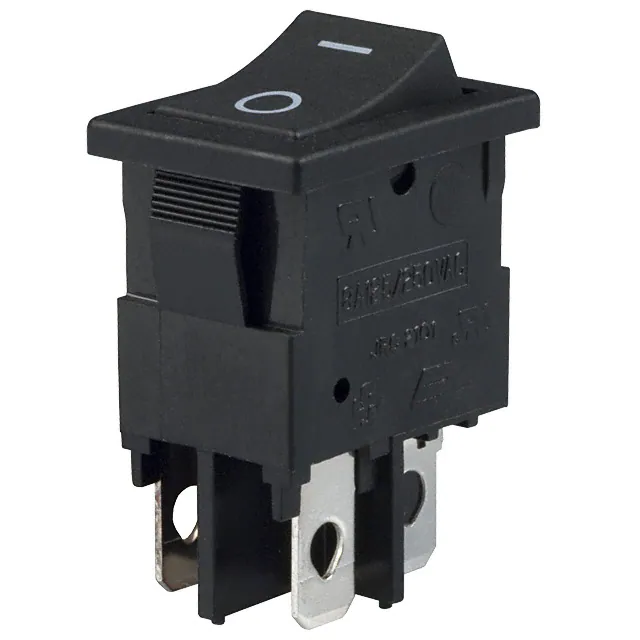

RC1083BBLKBLKGF0SWITCH ROCKER DPST 8A 125V |
4,856 |
|
Datasheet | RC1083 | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 13.00mm | -30°C ~ 85°C | CSA, cUL, cULus, UL, VDE |
|
RC1083BBLKBLKEFSWITCH ROCKER DPST 8A 125V |
2,231 |
|
Datasheet | RC1083 | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 13.00mm | -30°C ~ 85°C | CSA, cUL, cULus, UL, VDE |
|
300DP6J2M6QESWITCH ROCKER SP3T 5A 120V |
4,503 |
|
Datasheet | 300 | Bulk | Obsolete | Through Hole, Right Angle | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Jumper needed to achieve triple throw | - | -30°C ~ 85°C | - |
|
|
300SP1J3BLKVS4QESWITCH ROCKER SPDT 5A 120V |
3,941 |
|
Datasheet | 300 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
R1966IBLKBLKBFSWITCH ROCKER SPDT 15A 125V |
2,628 |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Black | I O II | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

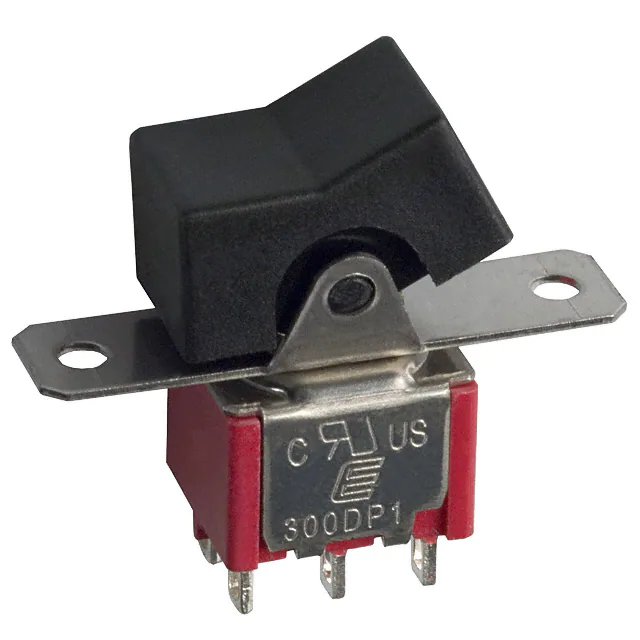

300DP1R1BLKM1QESWITCH ROCKER DPDT 5A 120V |
3,030 |
|
Datasheet | 300 | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | - |
|

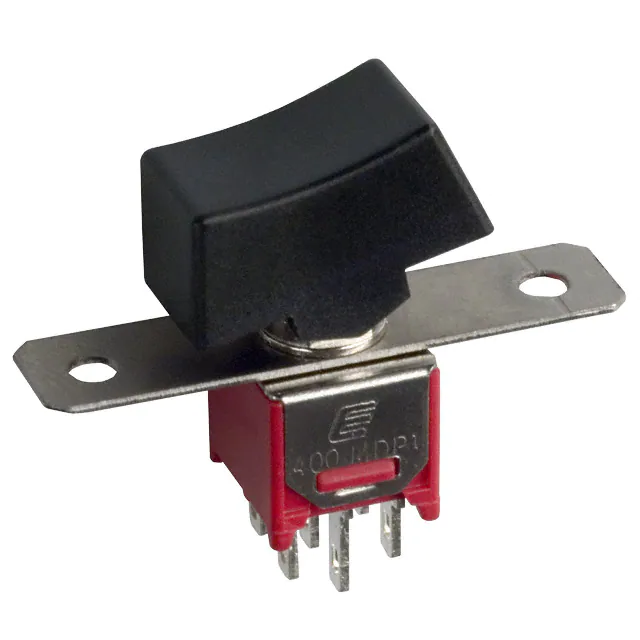

400MDP1R1BLKM1QESWITCH ROCKER DPDT 3A 120V |
4,263 |
|
Datasheet | 400 | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.75mm x 8.89mm | -30°C ~ 85°C | cULus |
|
|
RC1083BBLKWHTFF0SWITCH ROCKER DPST 8A 125V |
4,456 |
|
Datasheet | RC1083 | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 8A (AC) | 125 V | - | Concave (Curved) | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.30mm x 13.00mm | -30°C ~ 85°C | CSA, cUL, cULus, UL, VDE |
|
|
300AWDP1J4BLKM3QESWITCH ROCKER DPDT 5A 120V |
1,436 |
|
Datasheet | 300A | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
