Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RR3130BBLKBLKNSSWITCH ROCKER DPDT 10A 125V |
1,228 |
|
Datasheet | RR3130 | Bulk | Active | Panel Mount, Threaded Body with Nut | DPDT | On-On | 10A (AC) | 125 V | - | Round | Black | No Marking | - | - | Solder Lug | - | - | Circular - 18.20mm Dia | 0°C ~ 65°C | - |
|
|
R1973ABLKYELFF4SWITCH ROCKER SPST 9A 125V |
1,444 |
|
Datasheet | R1973 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Yellow | O - | Incandescent, Yellow | 24 VDC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|
|
RB44(3C1123)+(1C1123)SWITCH ROCKER SPST/SPDT 16A 125V |
2,267 |
|
- |
RB4, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT + SPST-NC | On-Off, On-On | 16A (AC) | 125 V | - | Concave (Curved), Dual | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 85°C | CE, cULus |
|
|
RR11534400SWITCH ROCKER SPDT 10A 125V |
2,003 |
|
Datasheet | RR1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 10A (AC) | 125 V | - | Round | Gray | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Circular - 20.00mm Dia | -20°C ~ 105°C | cUL, VDE, UL |
|
|
300-SP3-J3-(BLK)-VS2-Q-ESWITCH ROCKER SPDT 5A 120V |
4,247 |
|
- |
300 | Bulk | Active | Through Hole | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

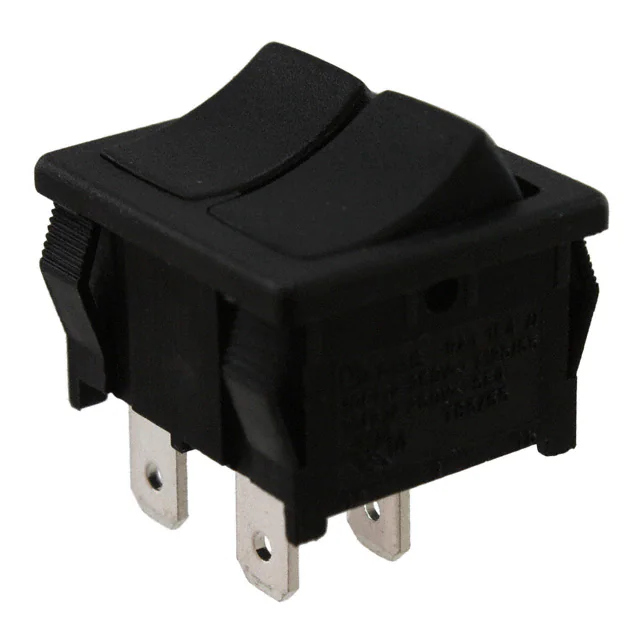

RA21131100SWITCH ROCKER SPSTX2 10A 125V |
2,969 |
|
Datasheet | RA2, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST x 2 | On-Off | 10A (AC) | 125 V | - | Concave (Curved), Dual | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 22.00mm x 19.20mm | -20°C ~ 105°C | cUL, VDE, UL |
|
300AWSP4J2WHTM2RESWITCH ROCKER SPDT 0.4VA 20V |
4,672 |
|
Datasheet | 300A | Bulk | Obsolete | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | White | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
R1966ABLKBLKSPECIALSSWITCH ROCKER SPST 15A 125V |
1,468 |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Black | Custom | - | - | Solder Lug | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|

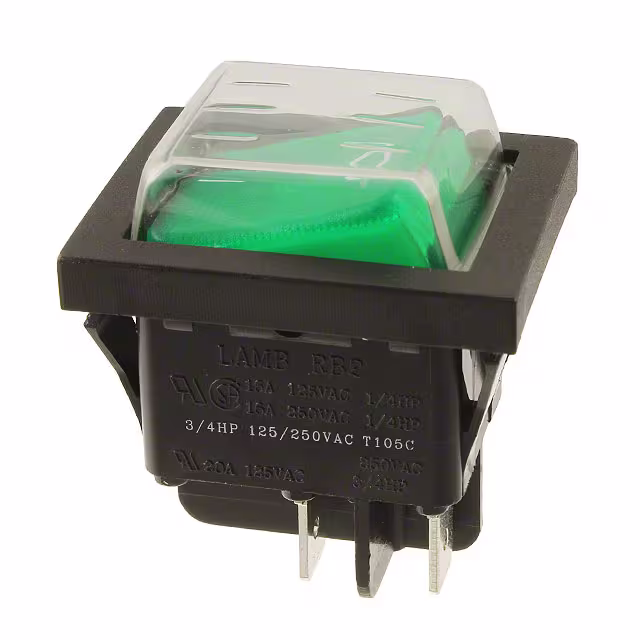

RB242D1021-136/ACC-F02-1SWITCH ROCKER DPST 20A 125V |
4,324 |
|
Datasheet | RB2, LAMB | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | Sealing Boot | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|

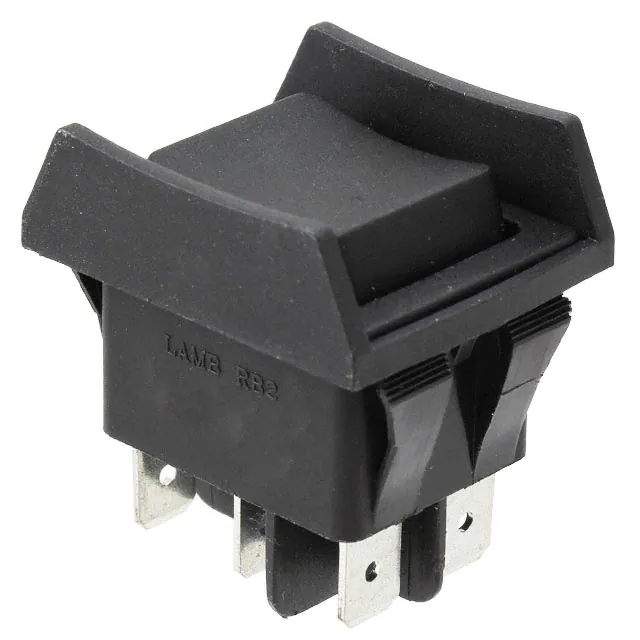

RB246E1100-ACC-F04-1SWITCH ROCKER DPDT 16A 125V |
4,215 |
|
- |
RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 16A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | Guard | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
