Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RP8300B2M1CEBLKBLKGRNSWITCH PB SPST-NO 200MA 250V |
380 |
|
Datasheet | RP8300 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 200mA (AC/DC) | 250 V | 50 V | Round, Button | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8400B2M1CEBLKBLKREDSWITCH PB SPST-NO 0.125A 125V |
116 |
|
Datasheet | RP8400 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8400B2M1CECHRBLUNILSWITCH PB SPST-NO 0.125A 125V |
351 |
|
Datasheet | RP8400 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Square, Button | No Marking | Blue | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B2W1CEBLKREDREDSWITCH PB SPST-NO 0.125A 125V |
389 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Red | LED, Red | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B2W1CEBLKBLKBLUSWITCH PB SPST-NO 0.125A 125V |
371 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Blue | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
RP8100B2W1CEBLKBLKREDSWITCH PB SPST-NO 0.125A 125V |
361 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Red | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

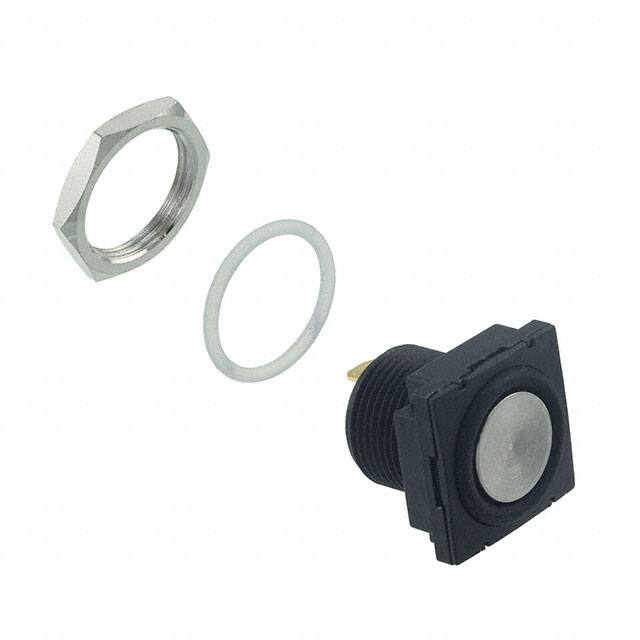

RP8600B2M1CEBLKSILSWITCH PUSH SPST-NO 0.4VA 20V |
281 |
|
Datasheet | RP8600 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button, Flush | No Marking | Silver | - | - | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 16.00mm Dia | -30°C ~ 85°C |
|
PV2H24011SWITCH PB SPST-NO 2A 48V |
1,609 |
|
Datasheet | PV2 | Bulk | Active | Panel Mount, Front | Anti-Vandal | SPST-NO | Off-Mom | 2A (DC) | - | 48 V | Round, Button | - | Black | - | - | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 16.00mm Dia | -20°C ~ 55°C |
|
LP16OA1ASTWGSWITCH PUSH SPST-NO 0.1A 20V |
168 |
|
Datasheet | LP16 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 20 V | Square, Button | No Marking | Clear (White Filter/Diffuser) | LED, Green | 3.3 VDC | PC Pin | - | - | - | -5°C ~ 60°C |
|
|
LB22F23Q3131SWITCH PB SPDT 3A 250V |
255 |
|
Datasheet | LB22 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPDT | On-On | 3A (AC) | 250 V | - | Round, Button, Flush | - | Green | LED, Green | 3 VDC | Solder Lug | IP65 - Dust Tight, Water Resistant | - | Circular - 22.00mm Dia | -20°C ~ 55°C |
