Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LP2S1WHTBLU-NSWITCH PUSH SPST-NO 1MA 20V |
1,044 |
|
Datasheet | LP2 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Square, Button | No Marking | White | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
800USP8P1A1M6RESWITCH PUSH SPDT 0.4VA 20V |
298 |
|
Datasheet | 800U | Tube | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

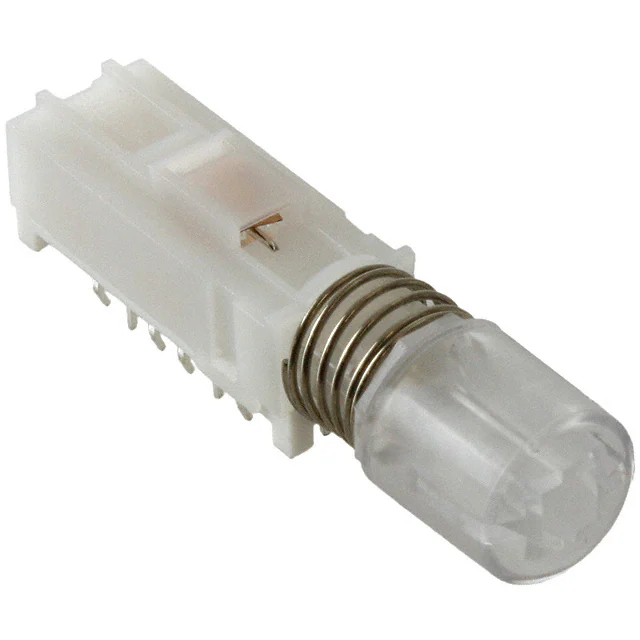

WBL4UEEGBQR05CLRSWITCH PUSH 4PDT 300MA 30V |
850 |
|
Datasheet | WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | 4PDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue/Green | 1.7, 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
LP4EE1PBCTRSWITCH PUSHBUTTON DPDT 0.1A 30V |
690 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Red | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
800UDP8P1A1M6RESWITCH PUSH DPDT 0.4VA 20V |
520 |
|
Datasheet | 800U | Tube | Active | Through Hole, Right Angle | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | - | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
|
LP4OA1RBATRSWITCH PUSHBUTTON DPDT 0.1A 30V |
831 |
|
Datasheet | LP4 | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-Mom | 100mA (DC) | - | 30 V | Square, Button | No Marking | Clear | LED, Red | 2.2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
700ASP7B21M2QESWITCH PUSHBUTTON SPDT 3A 120V |
389 |
|
Datasheet | 700A | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

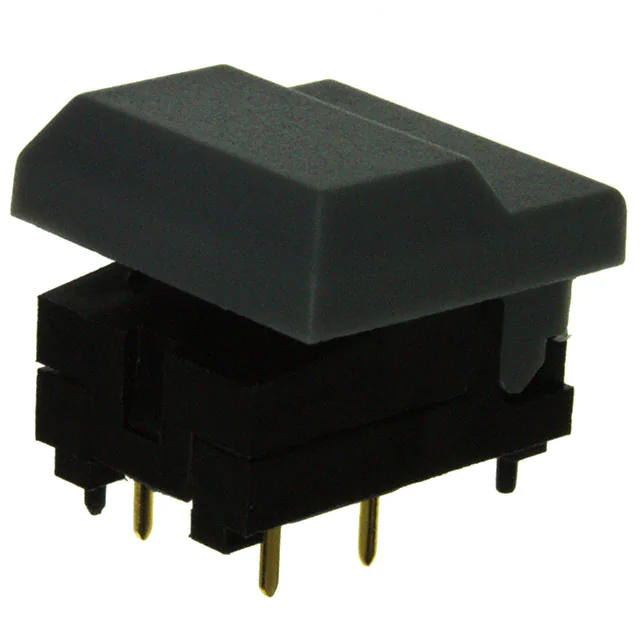

5511MGRYXSWITCH PUSH SPDT 0.03A 12V |
1,878 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|

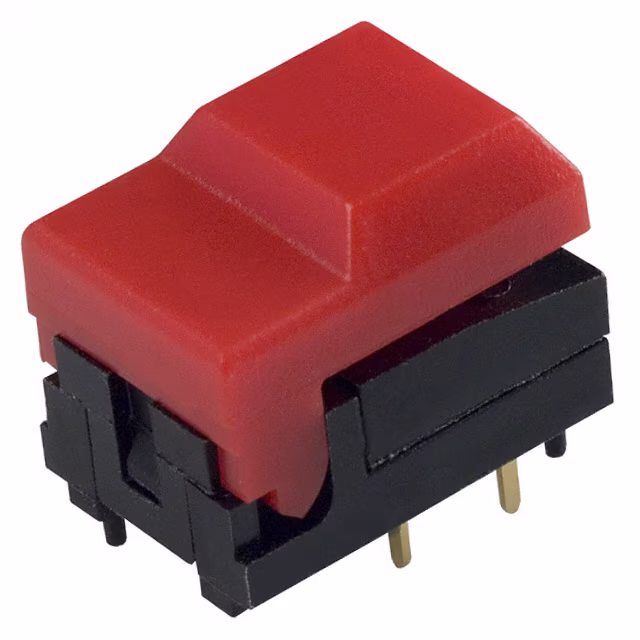

5501MREDXSWITCH PUSH SPDT 0.3A 12V |
878 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
|

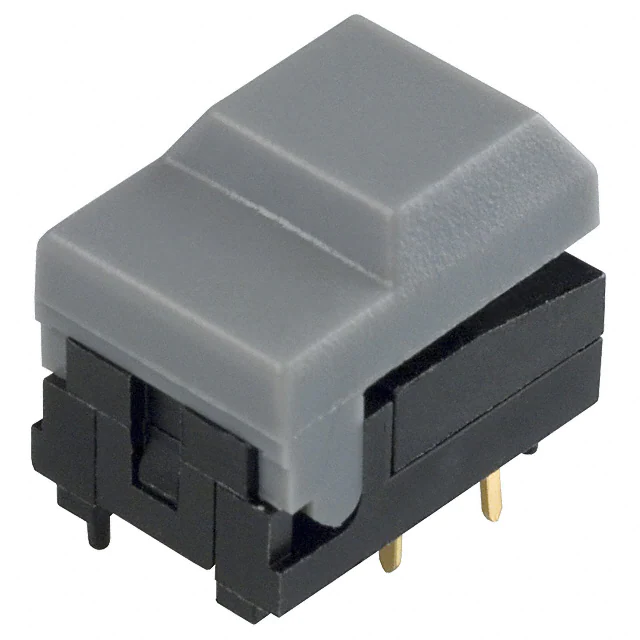

5501MGRYXSWITCH PUSH SPDT 0.3A 12V |
189 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | - | - | -25°C ~ 65°C |
