Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
800SP8B6M7QESWITCH PUSHBUTTON SPDT 3A 120V |
263 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
WBL2UEEGBQR05CLRSWITCH PUSH DPDT 300MA 30V |
722 |
|
Datasheet | WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue/Green | 1.7, 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
800AWSP8M6QESWITCH PUSHBUTTON SPDT 1A 120V |
331 |
|
Datasheet | 800A | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC) | 120 V | - | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
RP8100B2M1CEBLKWHTNILSWITCH PB SPST-NO 0.125A 125V |
551 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | White | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|
|
RP8100B1M1CEBLKORGNILSWITCH PB SPST-NO 125MA 125V |
186 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | - | Orange | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
|

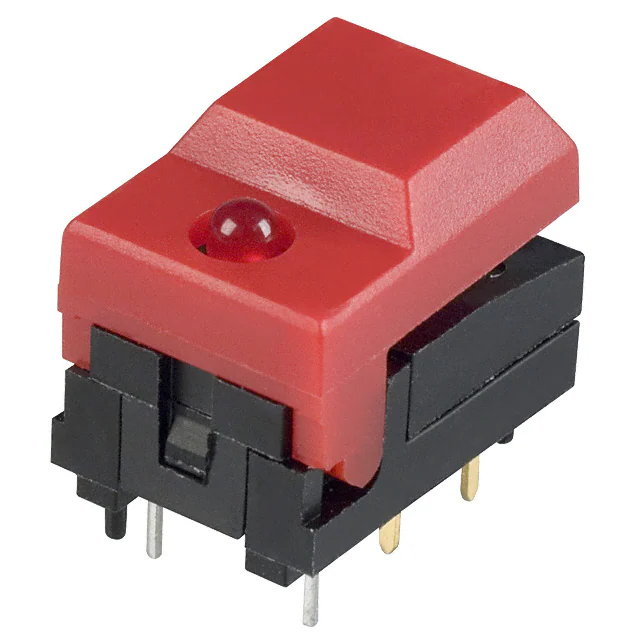

5501MREDREDSWITCH PB SPDT 0.3A 12V |
1,319 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Red | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
5511MWHTREDSWITCH PUSH SPDT 0.03A 12V |
649 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | White | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|

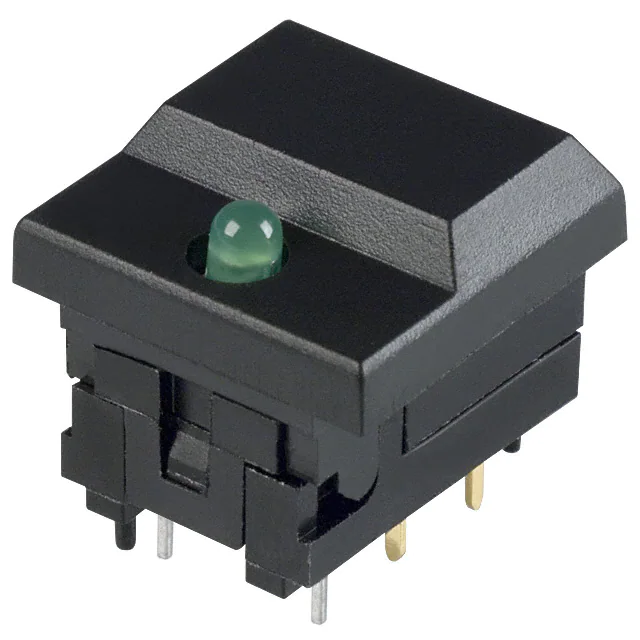

5511MBLKGRNSWITCH PUSH SPDT 0.03A 12V |
413 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|

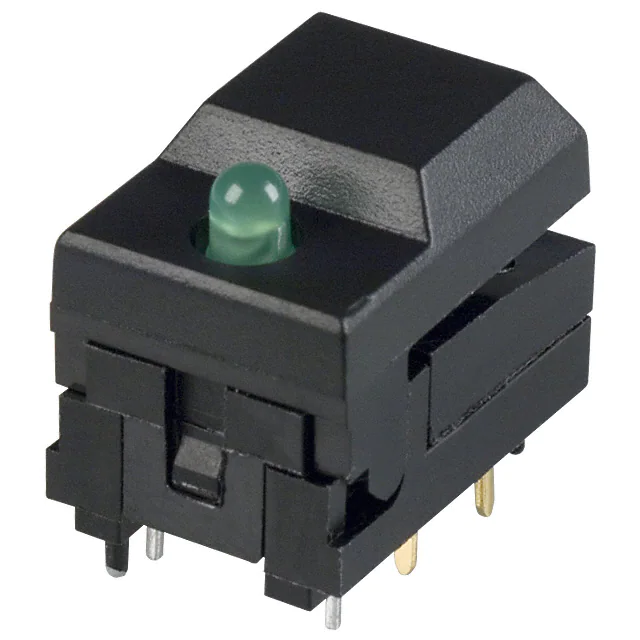

5501MBLKGRNSWITCH PUSH SPDT 0.3A 12V |
319 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Black | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|
RP8100B1M1CEBLKBLKGRNSWITCH PB SPST-NO 0.125A 125V |
122 |
|
Datasheet | RP8100 | Bulk | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 100mA (DC) | 125 V | 50 V | Round, Button | No Marking | Black | LED, Green | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.60mm Dia | -30°C ~ 85°C |
