Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
800SP9B5M6REHSWITCH PUSH SPST-NO 0.4VA 20V |
170 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
800AWSP9M61RESWITCH PUSH SPST-NO 0.4VA 20V |
269 |
|
Datasheet | 800A | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

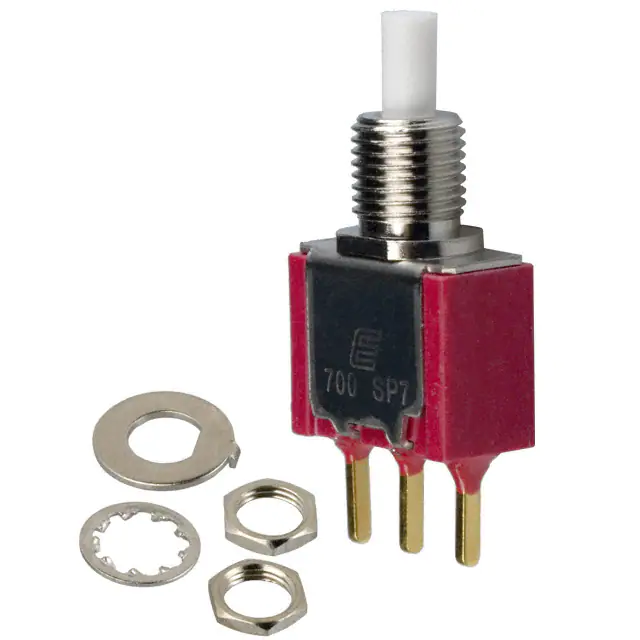

700SP7B10M2REHSWITCH PUSH SPDT 0.4VA 20V |
797 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
LP15R1WHTBLU-NSWITCH PUSH SPST-NO 1MA 20V |
1,111 |
|
Datasheet | LP15 | Bulk | Active | Through Hole | Standard, Illuminated | SPST-NO | Off-Mom | 1mA (DC) | - | 20 V | Round, Button | No Marking | White | LED, Blue | 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
800SP9B9M6RESWITCH PUSH SPST-NO 0.4VA 20V |
156 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
800SP9B7M6QESWITCH PUSH SPST-NO 3A 120V |
303 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
800SP9B7M7QESWITCH PUSH SPST-NO 3A 120V |
566 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
|
700SP7B11M51QEHSWITCH PUSHBUTTON SPDT 3A 120V |
168 |
|
Datasheet | 700 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | - | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
800SP8B6M6RESWITCH PUSH SPDT 0.4VA 20V |
225 |
|
Datasheet | 800 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | - | - | -30°C ~ 85°C |
|
800CSP1B6M7QESWITCH PB SPDT 3A 120V |
810 |
|
Datasheet | 800C | Bulk | Active | Through Hole, Right Angle, Vertical | Standard | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
