Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
800AWSP9VS2QEFLUSHSwitches |
2,039 |
|
- |
800A | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Plunger | - | Black | - | - | PC Pin | IP67 - Dust Tight, Waterproof | - | - | -20°C ~ 85°C |
|
|
800SP9B5M1QEC2GRNSWITCH PUSH SPST-NO 3A 120V |
4,830 |
|
Datasheet | 800 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 3A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Green | - | - | Solder Lug | - | - | Circular - 4.95mm Dia | -30°C ~ 85°C |
|
|
WBL2UEERBQR05CLRSWITCH PUSHBUTTON DPDT 300MA 30V |
1,280 |
|
Datasheet | WBL | Bulk | Active | Through Hole, Right Angle | Standard, Illuminated | DPDT | On-On | 300mA (DC) | - | 30 V | Round, Button | No Marking | Clear | LED, Blue/Red | 1.7, 3.5 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP4EE1PBNNYSWITCH PB DPDT 0.1A 30V |
2,910 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | - | - | LED, Yellow | 2 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
|
LP4EE1PBNNGSWITCH PB DPDT 0.1A 30V |
1,709 |
|
Datasheet | LP4 | Bulk | Active | Through Hole | Standard, Illuminated | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | - | - | LED, Green | 2.1 VDC | PC Pin | - | - | - | -20°C ~ 70°C |
|
5501MWHTREDSWITCH PUSH SPDT 0.3A 12V |
2,344 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | White | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|

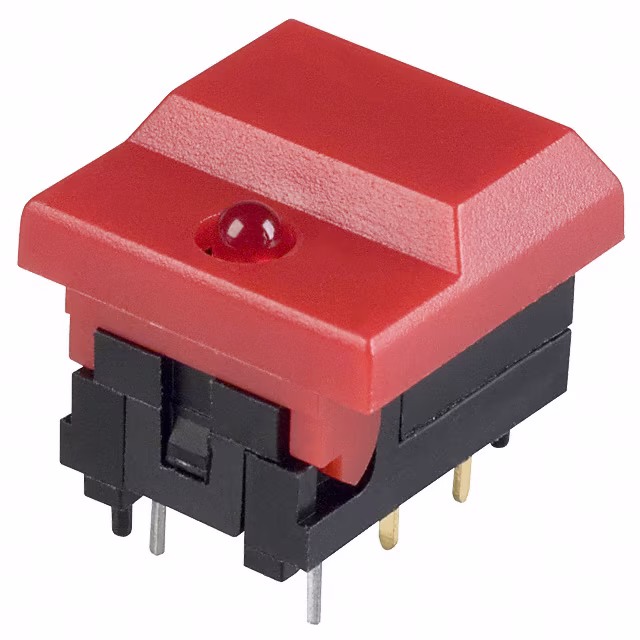

5511MREDREDSWITCH PUSH SPDT 0.03A 12V |
2,845 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Red | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|

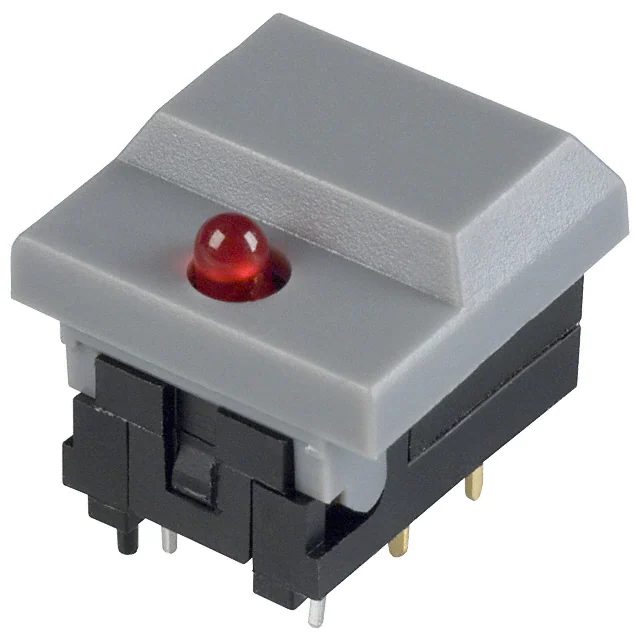

5511MGRYREDSWITCH PUSH SPDT 0.03A 12V |
2,192 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Gray | LED, Red | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|

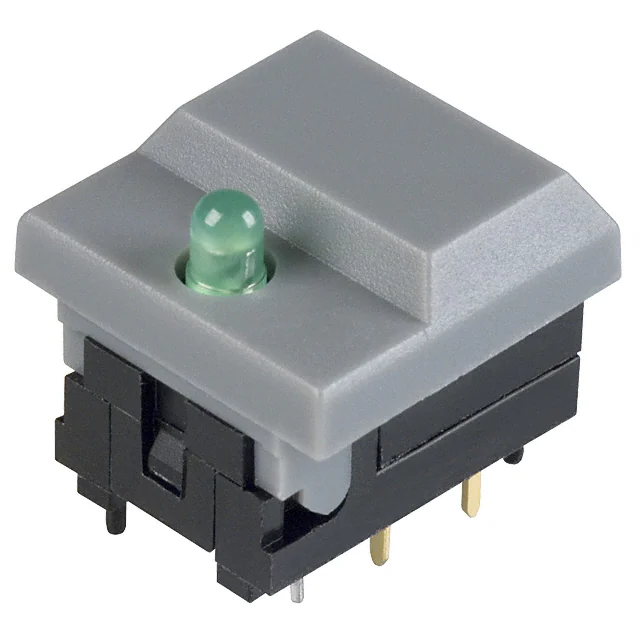

5511MGRYGRNSWITCH PUSH SPDT 0.03A 12V |
1,427 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Gray | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
|

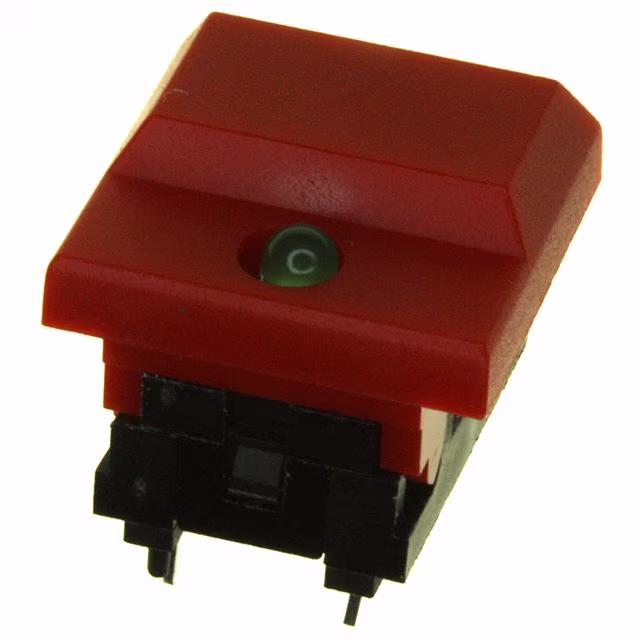

5511MREDGRNSWITCH PUSH SPDT 0.03A 12V |
3,558 |
|
Datasheet | 5500 | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 300mA (DC) | - | 12 V | Square, Button | No Marking | Red | LED, Green | 2.2 VDC | PC Pin | - | - | - | -25°C ~ 65°C |
